E.7
Date Code 20090730 Instruction Manual SEL-734 Meter
Distributed Network Protocol
Configuration
20,22 2390 Energy—MVRHCO_LD DECPLE
20,22 2391 Energy—MVRHCO_LG DECPLE
20,22 2392 Energy—MVRH3I_LD DECPLE
20,22 2393 Energy—MVRH3I_LG DECPLE
20,22 2394 Energy—MVRH3O_LD DECPLE
20,22 2395 Energy—MVRH3O_LG DECPLE
Load Profile
NOTE:
Write a 0–11 to Object 40, 41, index 39 to select between LDP1 and LDP12. See Load Profile on page E.2 for details.
20,22 39 LDP Data Ready
Load Profile Data—Record 1, Channels 1–12
20,22 40 Status
0 No new VSSI Summary
1 New VSSI Summary Available
20,22 2160 LDAR Setting – LDP. Recorder acquisition rate in seconds
20,22 2161 LDFUNC Setting – LDP Recorder function, enumeration
LDFUNC Value Definition
0 = End of Interval
1 = Average Across Interval
2 = Change Over Interval
3 = Maximum During Interval
4 = Minimum During Interval
20,22 41–43 Record 1 Time—Seconds, Minutes, Hours
20,22 44–46 Record 1 Date—Day, Month, Year
20,22 47–58 Record 1, Channel 1–12 Value Secondary scaled by 100
20,22 2170–2173 Record 1, Channel 13–16 Value Secondary scaled by 100
20,22 59–989 Load Profile Data Record 2–50, Channels 1–12 Secondary scaled by 100
20,22 990–1008 Latest Load Profile Record, Channel 1–12 Secondary scaled by 100
20,22 2174–2369 Load Profile Data Records 2–50, Channels 13–16 Secondary scaled by 100
20,22 2370–2379 Load Profile Data Record, Channels 13–16 Secondary scaled by 100
VSSI Data
20,22 1009 VSSI Data Ready
VSSI Data–Record 1
20,22 1010 Record Time—Milliseconds
20,22 1011 Minutes
20,22 1012 Hours
20,22 1013 Record Date—Day
20,22 1014 Month
20,22 1015 Year
20,22 1016–1020 Ia, Ib, Ic, Ig, In (% of nominal) Scaled by 100
20,22 1021–1023 Va, Vb, Vc (L-L if delta) (% of Vbase) Scaled by 100
20,22 1024 Vbase in Volts Secondary scaled by 100
20,22 1025 Phase A (AB if delta) State

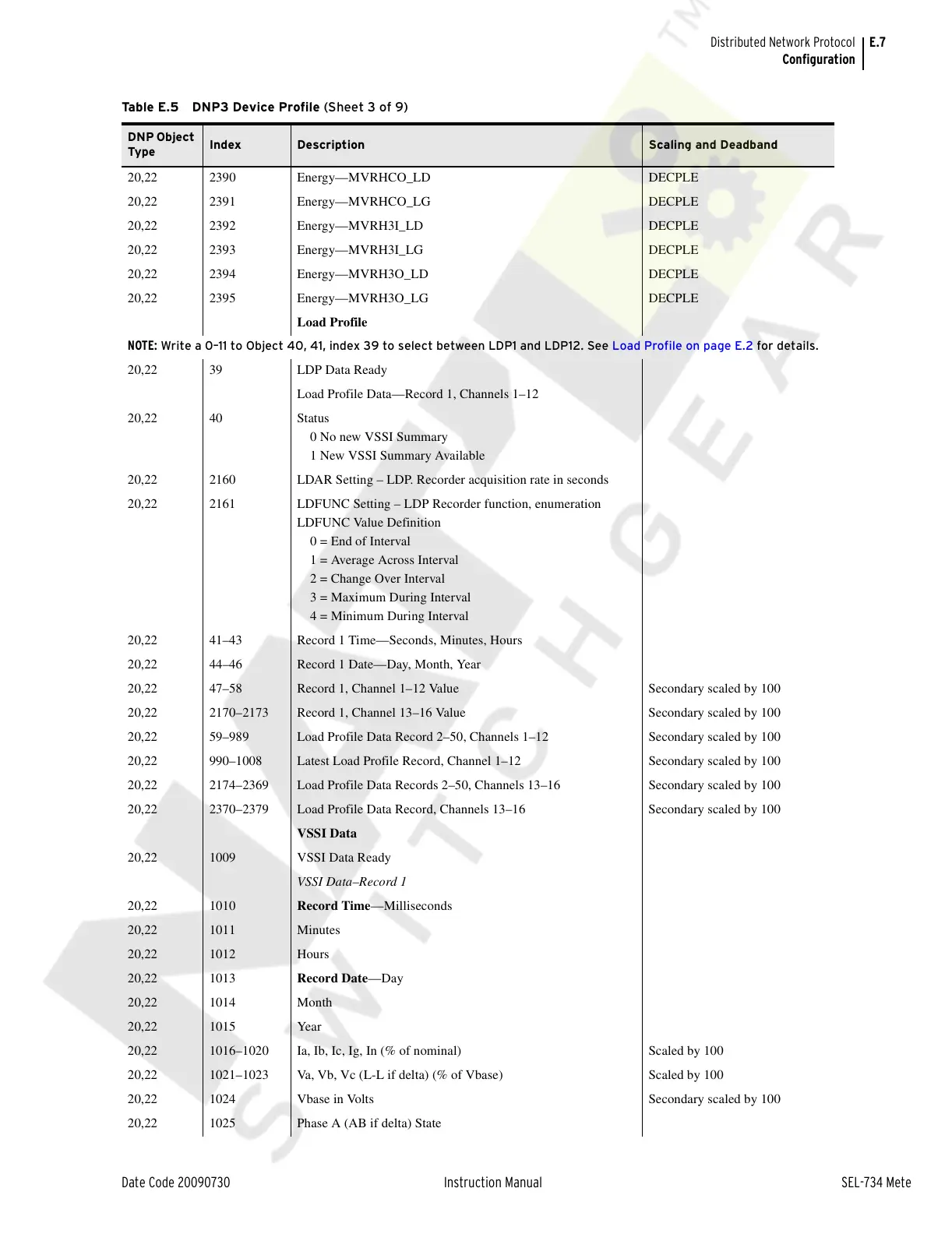

Table E.5 DNP3 Device Profile (Sheet 3 of 9)
DNP Object
Type
Index Description Scaling and Deadband
