SEL-734 Meter Instruction Manual Date Code 20090730
Distributed Network Protocol
Configuration
20,22 1026 Phase B (BC if delta) State
20,22 1027 Phase C (CA if delta) State
20,22 1028 Status
20,22 1029–1959 VSSI Data—Record 2–50
20,22 1970 New VSSI summary
0 No new VSSI Summary
1 New VSSI Summary Available
20,22 1971 Vbase in Volts Secondary scaled by 100
VSSI Summary—Record 1 (oldest)
20,22 1972 Event Type (Enumeration)
DNP Value Definition
0No Data
1Dip
2Swell
3Interrupt
4 Triggered
5 Power Loss During Event
6 Data Overwrite
11 Dig during ESSI setting change
12 Swell during ESSI setting change
13 Interrupt during ESSI setting change
14 Triggered during ESSI setting change
20,22 1973–1975 Event Time—Milliseconds, Minutes, Hours
20,22 1976–1978 Event Date—Day, Month, Year
20,22 1979–1981 Event Duration—Milliseconds, Minutes, Hours
20,22 1982 Event Magnitude, % Vbase Secondary scaled by 100
20,22 1983 VA Min (% Vbase) (VAB if delta) Secondary scaled by 100
20,22 1984 VA Max (% Vbase) (VAB if delta) Secondary scaled by 100
20,22 1985 VB Min (% Vbase) (VBC if delta) Secondary scaled by 100
20,22 1986 VB Max (% Vbase) (VBC if delta) Secondary scaled by 100
20,22 1987 VC Min (% Vbase) (VCA if delta) Secondary scaled by 100
20,22 1988 VC Max (% Vbase) (VCA if delta) Secondary scaled by 100
20,22 1989 ITIC Region (Enumeration)
ITIC Region Definition
0No Data
1 No Damage Region
2 Safe Operation Region
3 Prohibited Region
20,22 1990–2151 VSSI Summary—Record 2–10 (newest)
Analog Inputs
30,32 00–01 IA magnitude and angle, inst. (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 02–03 IB magnitude and angle, inst. (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 04–05 IC magnitude and angle, inst. (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 06–07 IN magnitude and angle, inst. (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 08–35 Reserved

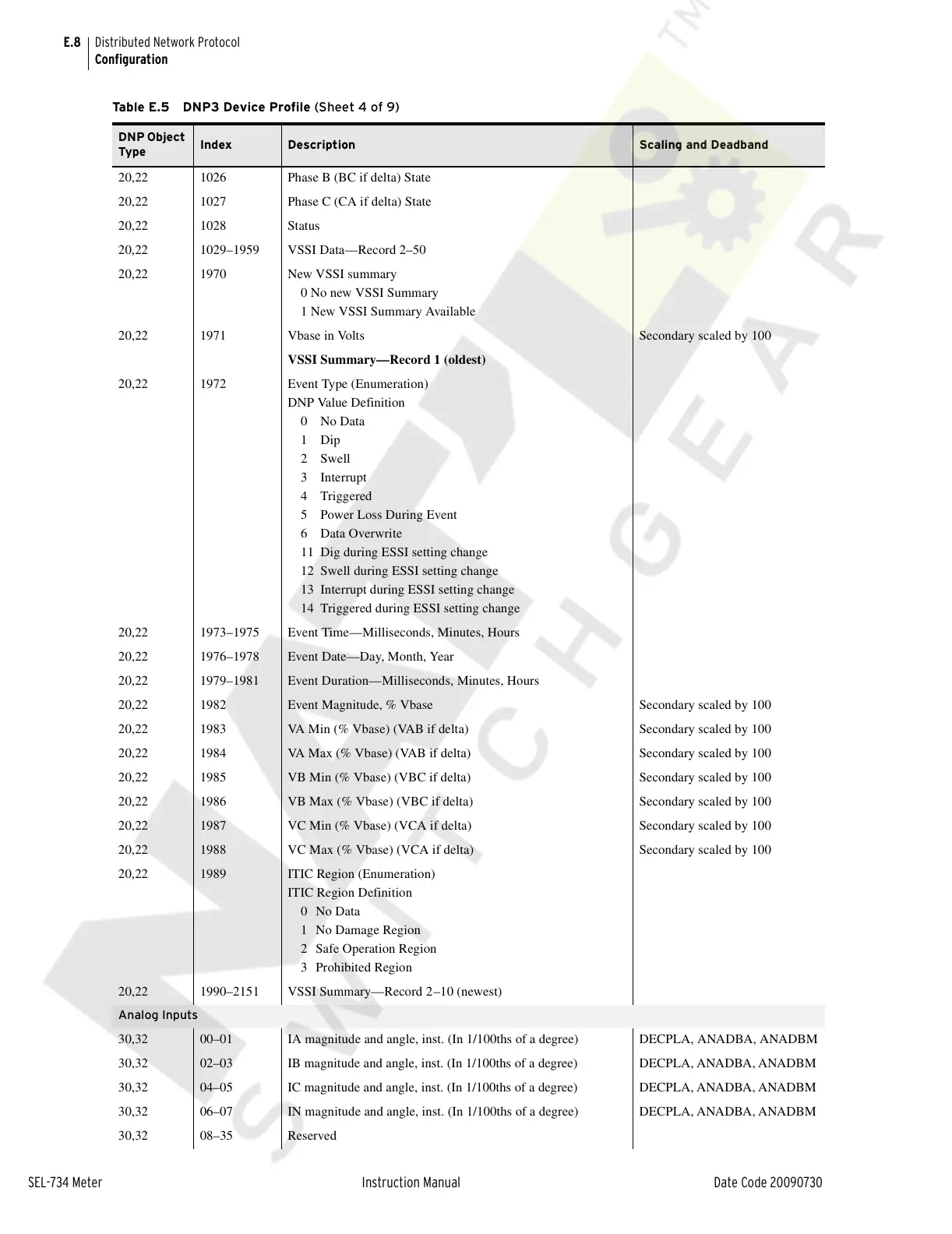

Table E.5 DNP3 Device Profile (Sheet 4 of 9)
DNP Object
Type
Index Description Scaling and Deadband
