E.9
Date Code 20090730 Instruction Manual SEL-734 Meter
Distributed Network Protocol
Configuration
30,32 36–37 VA magnitude (kV) and angle, inst. (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 38–39 VB magnitude (kV) and angle, inst. (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 40–41 VC magnitude (kV) and angle, inst. (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 42–43 VAB magnitude (kV) and angle, inst. (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 44–45 VBC magnitude (kV) and angle, inst. DSCALE, DECPLV, ANADBV,
ANADBM
30,32 46–47 VCA magnitude (kV) and angle, inst. (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 48–49 3I0 magnitude and angle (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 50–51 I1 magnitude and angle (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 52–53 3I2 magnitude and angle (In 1/100ths of a degree) DECPLA, ANADBA, ANADBM
30,32 54–71 Reserved
30,32 72–73 3V0 magnitude (kV) and angle (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 74–75 V1 magnitude (kV) and angle (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 76–77 V2 magnitude (kV) and angle (In 1/100ths of a degree) DECPLV, ANADBV, ANADBM
30,32 78–79 Reserved
30,32 80–10 Reserved
30,32 82–83 Reserved
30,32 84–87 MW A, B, C, and 3-phase DECPLM, ANADBM
30,32 88–91 MVA A, B, C, and 3-phase DECPLM, ANADBM
30,32 92–95 MVAR A, B, C, and 3-phase DECPLM, ANADBM
30,32 96–99 Power factor A, B, C, and 3-phase (In 1/100ths) ANADBM
30,32 100–103 Reserved
30,32 104 Frequency (In 1/100ths of a Hertz) ANADBM
30,32 105 Reserved
30,32 106–107 Energy—A-phase MWh IN and OUT DECPLM, ANADBM
30,32 108–109 Energy—B-phase MWh IN and OUT DECPLM, ANADBM
30,32 110–111 Energy—C-phase MWh IN and OUT DECPLM, ANADBM
30,32 112–113 Energy—3-phase MWh IN and OUT DECPLM, ANADBM
30,32 114–115 Energy—A-phase MVARh IN and OUT DECPLM, ANADBM
30,32 116–117 Energy—B-phase MVARh IN and OUT DECPLM, ANADBM
30,32 118–119 Energy—C-phase MVARh IN and OUT DECPLM, ANADBM
30,32 120–121 Energy—3-phase MVARh IN and OUT DECPLM, ANADBM
30,32 122–124 Demand—IA, IB, IC magnitudes DECPLA, ANADBA
30,32 125 Demand—IN magnitude DECPLA, ANADBA
30,32 126–129 Demand—A, B, C, and 3-phase demand MW IN DECPLM, ANADBM
30,32 130–133 Demand—A, B, C, and 3-phase demand MVAR IN DECPLM, ANADBM
30,32 134–137 Demand—A, B, C, and 3-phase demand MW OUT DECPLM, ANADBM
30,32 138–141 Demand—A, B, C, and 3-phase demand MVAR OUT DECPLM, ANADBM
30,32 142–145 Demand—MVA A, B, C, and 3-phase IN DECPLM, ANADBM
30,32 146–149 Demand—MVA A, B, C, and 3-phase OUT DECPLM, ANADBM
30,32 150–152 Peak Demand—IA, IB, IC magnitudes DECPLA, ANADBA

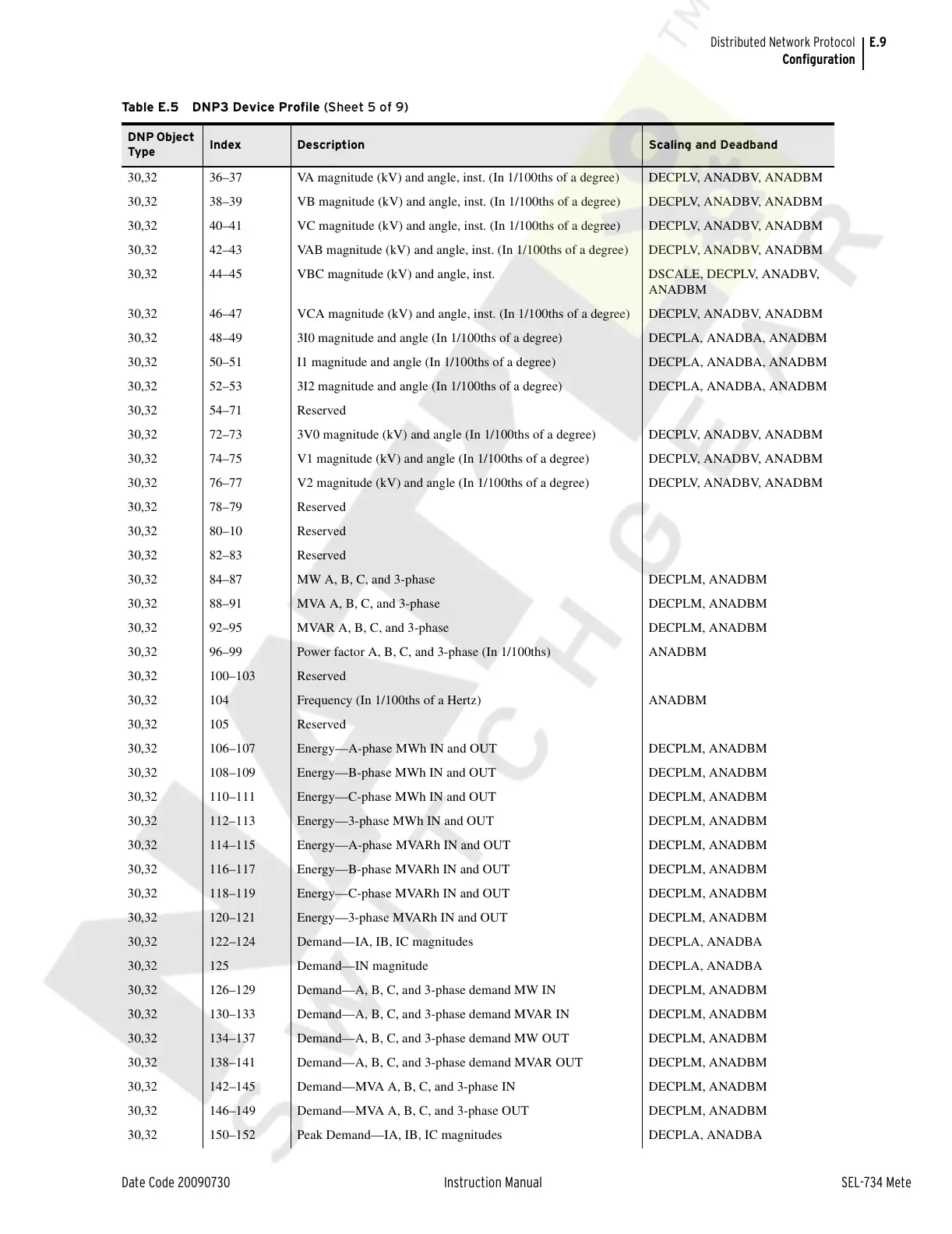

Table E.5 DNP3 Device Profile (Sheet 5 of 9)
DNP Object
Type
Index Description Scaling and Deadband
