E.10
SEL-734 Meter Instruction Manual Date Code 20090730
Distributed Network Protocol
Configuration
30,32 153 Peak Demand—IN magnitude DECPLA, ANADBA
30,32 154–157 Peak Demand—A, B, C, and 3-phase peak demand MW IN DECPLM, ANADBM
30,32 158–161 Peak Demand—A, B, C, and 3-phase peak demand MVAR IN DECPLM, ANADBM
30,32 162–165 Peak Demand—A, B, C, and 3-phase peak demand MW OUT DECPLM, ANADBM
30,32 166–169 Peak Demand—A, B, C, and 3-phase peak demand MVAR OUT DECPLM, ANADBM
30,32 170–173 Peak Demand—MVA A, B, C, and 3-phase IN DECPLM, ANADBM
30,32 174–177 Peak Demand—MVA A, B, C, and 3-phase OUT DECPLM, ANADBM
30,32 178–189 Reserved
30 190 Fault type (see Table E.10 for definition) ANADBM
30 191 Fault targets ANADBM
30 192 Fault frequency (In 1/100ths of a Hertz) ANADBM
30 193–195 Fault time in DNP format (high, middle, and low 16 bits) ANADBM
30 196–208 Reserved for additional fault information ANADBM
30,32 209–216 Min/Max—IA, IB, IC, IN magnitudes DECPLA, ANADBA
30,32 217–224 Min/Max Crest Factor—IA, IB, IC, IN magnitudes DECPLA, ANADBA
30,32 225–227 Min—VA, VB, VC (VAB, VBC, VCA if Delta) magnitudes (kV) DECPLV, ANADBV
30,32 228–230 Max—VA, VB, VC (VAB, VBC, VCA if Delta) magnitudes (kV) DECPLV, ANADBV
30,32 231–236 Min/Max Crest Factor—VA, VB, VC (VAB, VBC, VCA if
Delta) magnitudes
DECPLV, ANADBV
30,32 237–238 Min/Max—MW 3-phase DECPLM, ANADBM
30,32 239–240 Reserved
30,32 241–242 Min/Max—MVAR 3-phase DECPLM, ANADBM
30,32 243–245 RMS—VAB, VBC, VCA magnitudes (kV) DECPLA, ANADBA, ANADBM
30,32 246 Reserved
30,32 247–250 RMS—IA, IB, IC, IN magnitudes ANADBA, ANADBM
30,32 251–253 RMS—VA, VB, VC magnitudes (kV) DECPLA, ANADBA, ANADBM
30,32 254 Reserved
30,32 255–258 Average Power—MW A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 259–262 Average Power—MVAR A-, B-, -C, and 3-phase DECPLM, ANADBM
30,32 263–266 True Apparent (U)—MVA A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 267 Reserved
30,32 268–271 Supply Line Loss—MW A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 272–275 Load Line Loss—MW A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 276–279 Copper Loss—MW A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 280–283 Iron Loss—MW A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 284–287 Supply Line Loss—MVR A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 288–291 Load Line Loss—MVR A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 292–295 Copper Loss—MVR A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 296–299 Iron Loss—MVR A-, B-, C-, and 3-phase DECPLM, ANADBM
30,32 300–302 Reserved
30,32 303–306 THD—IA, IB, IC, IN (percent) DECPLM, ANADBM

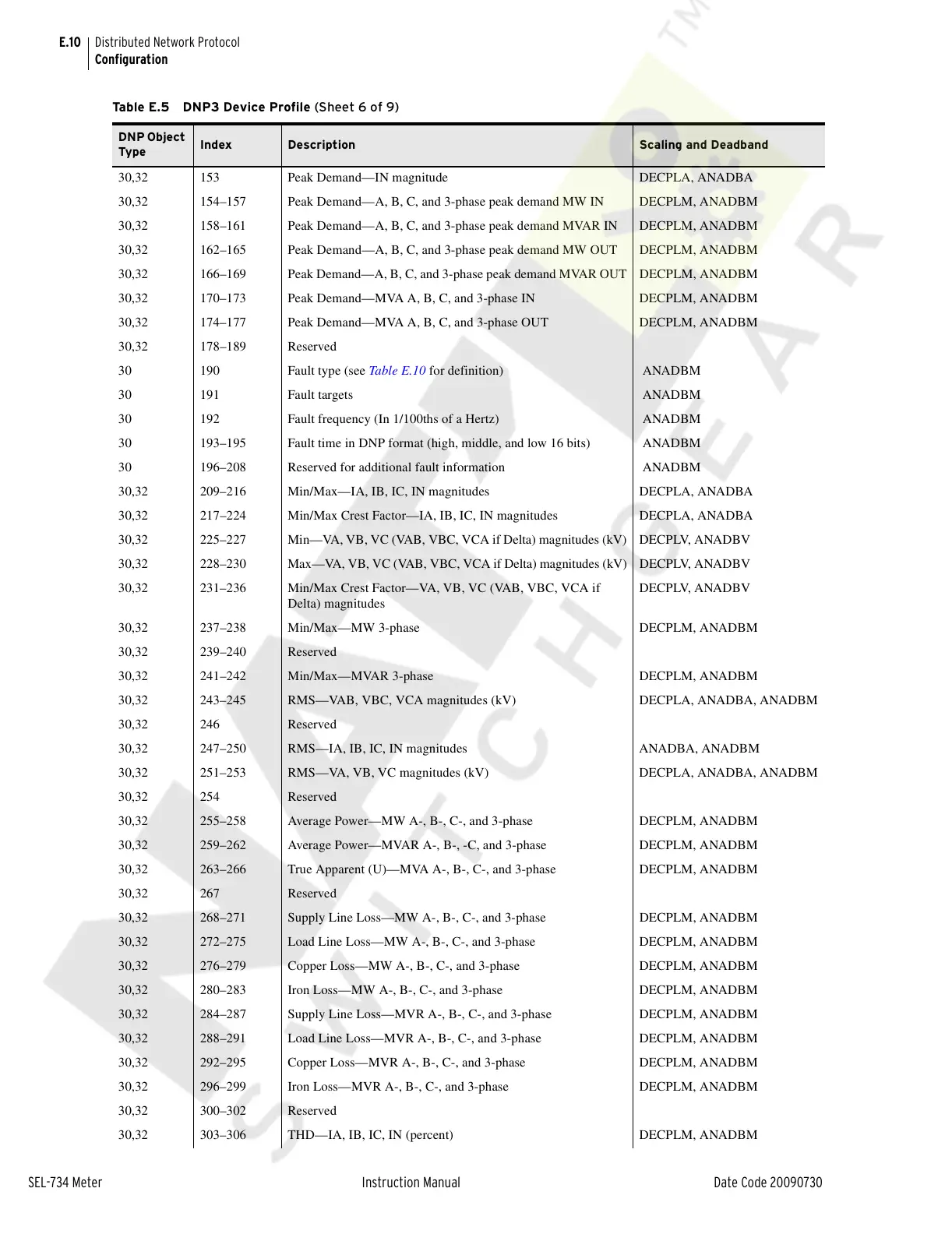

Table E.5 DNP3 Device Profile (Sheet 6 of 9)
DNP Object
Type
Index Description Scaling and Deadband
