Date Code 20090730 Instruction Manual SEL-734 Meter
Modbus RTU Communications Protocol
Modbus RTU Communications Protocol
TOU Present Season Data
For Present Rate Previous Season, add a value of 1000 to the binary addresses shown for Present Rate.
For Present Rate Self Read X, add a value of 2000 to the binary addresses shown for Present Rate. For
example, to retrieve “Present Rate Previous Season Rate A MWH Total,” take the Present Rate “Rate A
MWH Total” address of 12300–12301, and add 1000: 13300–13301 (3412–3413 Hex).
NOTE: All Min/Max Times include: Seconds (0—59); Minutes (0—59); Hours (0—23)
All Min/Max Dates include: Days (0—31); Months (1—12); Years (2000—9999)
12288 3000 Present Rate 1 6 UINT
12289 3001 Present Season 1 4 UINT
12290 3002 DST Status 0 1 UINT
12291 3003 Present Day Type 0 9 UINT
12292 3004 Present Self Read Index 0 14 UINT
12293 3005 Valid Self Read Block 0 14 UINT
12294–12299 3006–300B Present Meter Time and Date UINT
12300–12305 300C–3011 Rate A MWH, MVARH, MVAH “Total” LONG
12306–12311 3012–3017 Rate A MWH, MVARH, MVAH “Total” LONG
12312–12317 3018–301D Rate B MWH, MVARH, MVAH “Total” LONG
12318–12323 301E–3023 Rate B MWH, MVARH, MVAH Rcvd LONG
12324–12329 3024–3029 Rate C MWH, MVARH, MVAH “Total” LONG
12330–12335 302A–302F Rate C MWH, MVARH, MVAH Rcvd LONG
12336–12341 3030–3035 Rate D MWH, MVARH, MVAH “Total” LONG
12342–12347 3036–303B Rate D MWH, MVARH, MVAH Rcvd LONG
12348–12353 303C–3041 Rate E MWH, MVARH, MVAH “Total” LONG
12354–12359 3042–3047 Rate E MWH, MVARH, MVAH Rcvd LONG
12360–12365 3048–304D Rate F MWH, MVARH, MVAH “Total” LONG
12366–12371 304E–3053 Rate F MWH, MVARH, MVAH Rcvd LONG
12372–12377 3054–3059 Total MWH, MVARH Rcvd LONG
12376–12377 3058–3059 Non-Rated MWH “Total” at Peak Demand Reset LONG
12378–12379 305A–305B Non-Rated MWH “Total” since Peak Demand Reset LONG
12380–12381 305C–305D Non-Rated MVAH “Total” at Peak Demand Reset LONG
12382–12383 305E–305F Non-Rated MVAH “Total” since Peak Demand Reset LONG
12384–12385 3060–3061 1st Max MW “Total” Demand LONG
12386–12387 3062–3063 PF at 1st Max MW “Total” Demand LONG100
12388–12389 3064–3065 1st Max MVAR “Total” Peak Demand LONG
12390–12391 3066–3067 PF at 1st Max MVAR “Total” Peak Demand LONG100
12392–12393 3068–3069 1st Max MVA “Total” Peak Demand LONG
12394–12395 306A–306B PF at 1st Max MVA “Total” Peak Demand LONG100
12396–12401 306C–3071 2nd Max MW, MVAR, MVA Total Peak Demand LONG
12402–12407 3072–3077 3rd Max MW, MVAR, MVA Total Peak Demand LONG
12408–12413 3078–307D 4th Max MW, MVAR, MVA Total Peak Demand LONG
12414–12419 307E–3083 5th Max MW, MVAR, MVA Total Peak Demand LONG
12420–12421 3084–3085 Rate A Max MW “Total” Peak Demand LONG
12422–12423 3086–3087 PF at Rate A Max MW “Total” Peak Demand LONG100

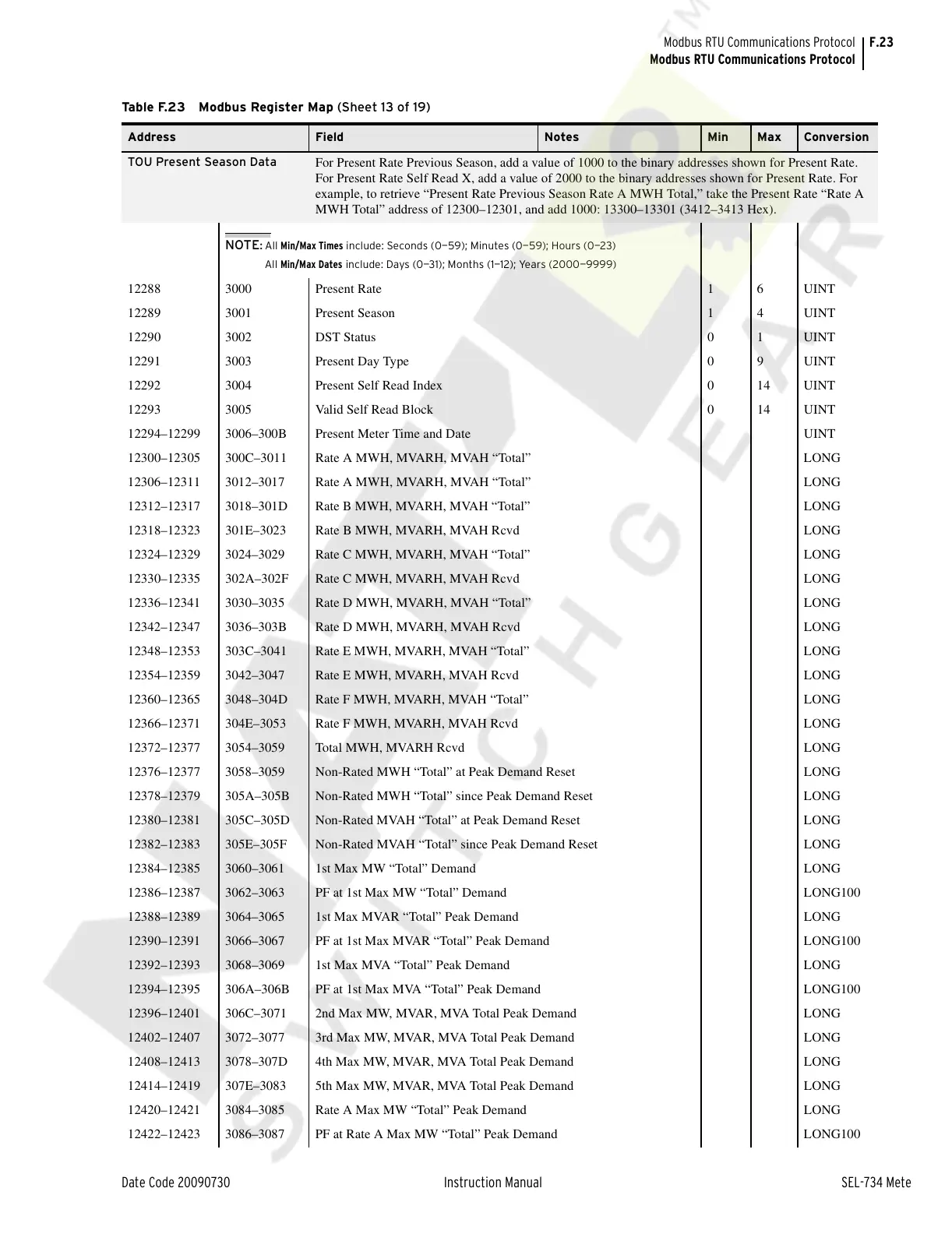

Table F.23 Modbus Register Map (Sheet 13 of 19)
Address Field Notes Min Max Conversion
