SEL-734 Meter Instruction Manual Date Code 20090730

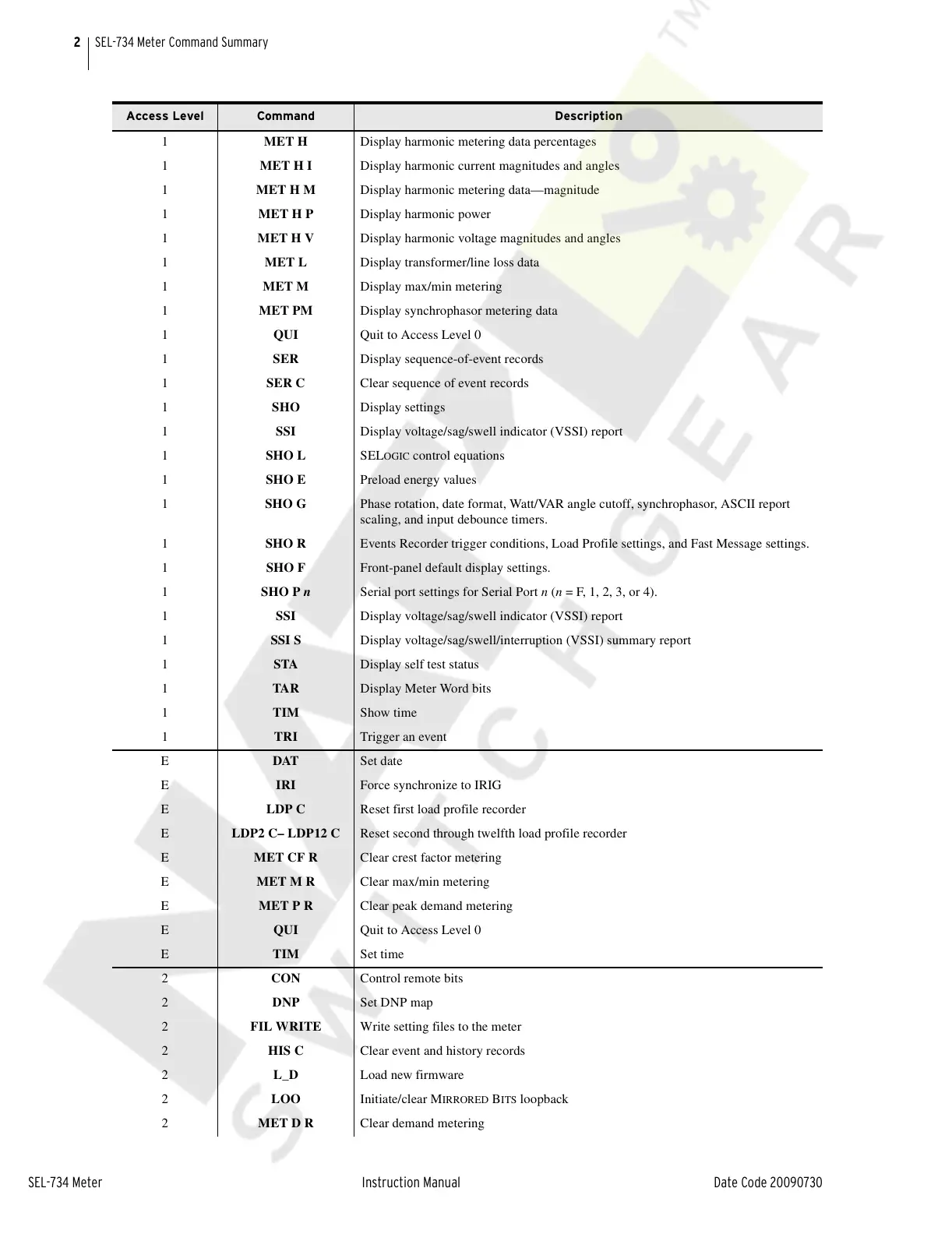

SEL-734 Meter Command Summary
1 MET H Display harmonic metering data percentages
1 MET H I Display harmonic current magnitudes and angles
1 MET H M Display harmonic metering data—magnitude
1 MET H P Display harmonic power
1 MET H V Display harmonic voltage magnitudes and angles
1 MET L Display transformer/line loss data
1 MET M Display max/min metering
1 MET PM Display synchrophasor metering data
1 QUI Quit to Access Level 0
1 SER Display sequence-of-event records
1 SER C Clear sequence of event records
1 SHO Display settings
1 SSI Display voltage/sag/swell indicator (VSSI) report
1 SHO L SELOGIC control equations
1 SHO E Preload energy values
1 SHO G Phase rotation, date format, Watt/VAR angle cutoff, synchrophasor, ASCII report
scaling, and input debounce timers.
1 SHO R Events Recorder trigger conditions, Load Profile settings, and Fast Message settings.
1 SHO F Front-panel default display settings.
1 SHO P n Serial port settings for Serial Port n (n = F, 1, 2, 3, or 4).
1 SSI Display voltage/sag/swell indicator (VSSI) report
1 SSI S Display voltage/sag/swell/interruption (VSSI) summary report
1 STA Display self test status
1 TA R Display Meter Word bits
1 TIM Show time
1 TRI Trigger an event
E DAT Set date
E IRI Force synchronize to IRIG
E LDP C Reset first load profile recorder
E LDP2 C– LDP12 C Reset second through twelfth load profile recorder
E MET CF R Clear crest factor metering
E MET M R Clear max/min metering
E MET P R Clear peak demand metering
E QUI Quit to Access Level 0
E TIM Set time
2 CON Control remote bits
2 DNP Set DNP map
2 FIL WRITE Write setting files to the meter
2 HIS C Clear event and history records
2 L_D Load new firmware
2 LOO Initiate/clear M
IRRORED BITS loopback
2 MET D R Clear demand metering
Access Level Command Description
