Date Code 20090730 Instruction Manual SEL-734 Meter

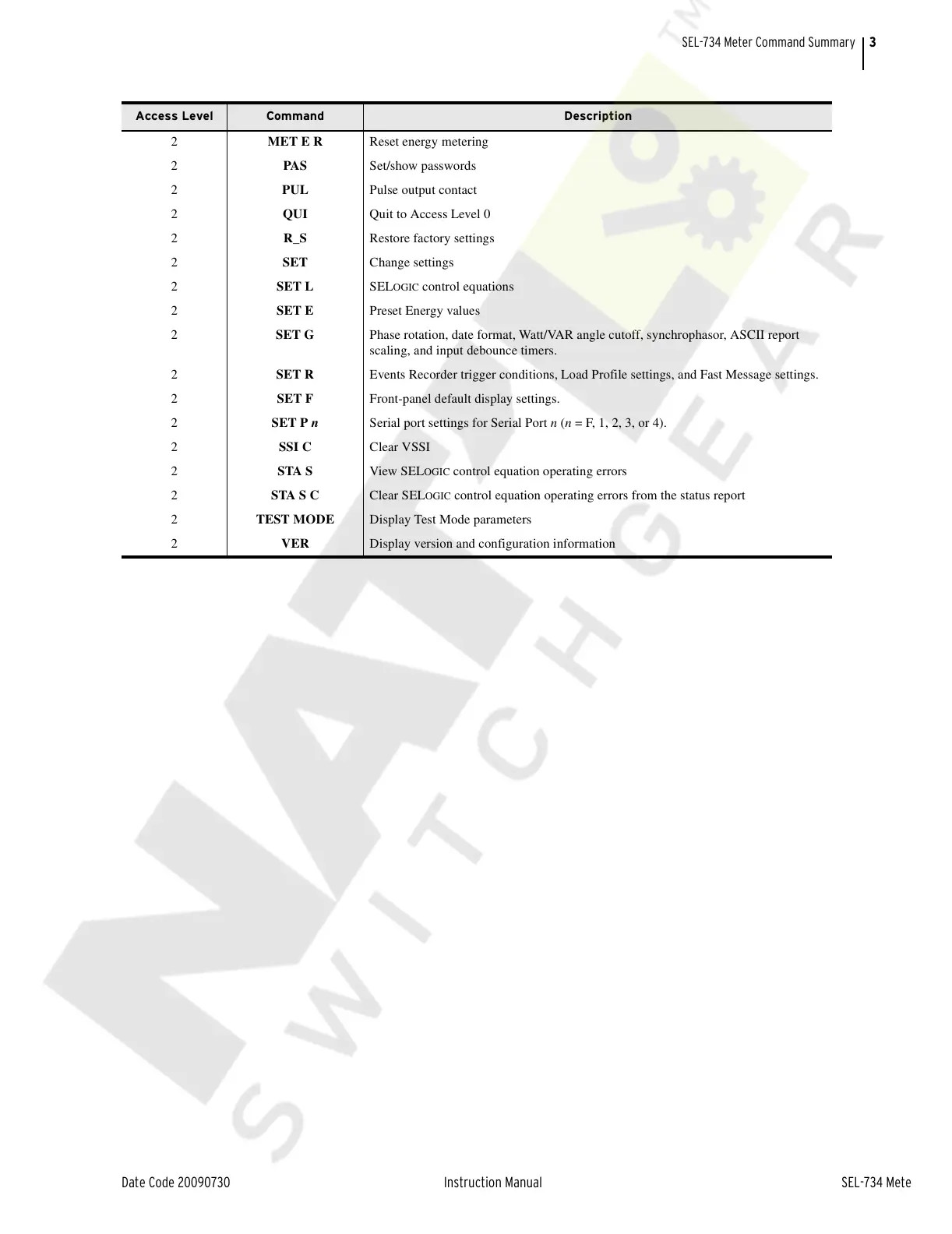

SEL-734 Meter Command Summary
2 MET E R Reset energy metering
2 PAS Set/show passwords
2 PUL Pulse output contact
2 QUI Quit to Access Level 0
2 R_S Restore factory settings
2 SET Change settings
2 SET L SEL
OGIC control equations
2 SET E Preset Energy values
2 SET G Phase rotation, date format, Watt/VAR angle cutoff, synchrophasor, ASCII report
scaling, and input debounce timers.
2 SET R Events Recorder trigger conditions, Load Profile settings, and Fast Message settings.
2 SET F Front-panel default display settings.
2 SET P n Serial port settings for Serial Port n (n = F, 1, 2, 3, or 4).
2 SSI C Clear VSSI
2 STA S View SEL
OGIC control equation operating errors
2 STA S C Clear SEL
OGIC control equation operating errors from the status report
2 TEST MODE Display Test Mode parameters
2 VER Display version and configuration information
Access Level Command Description
