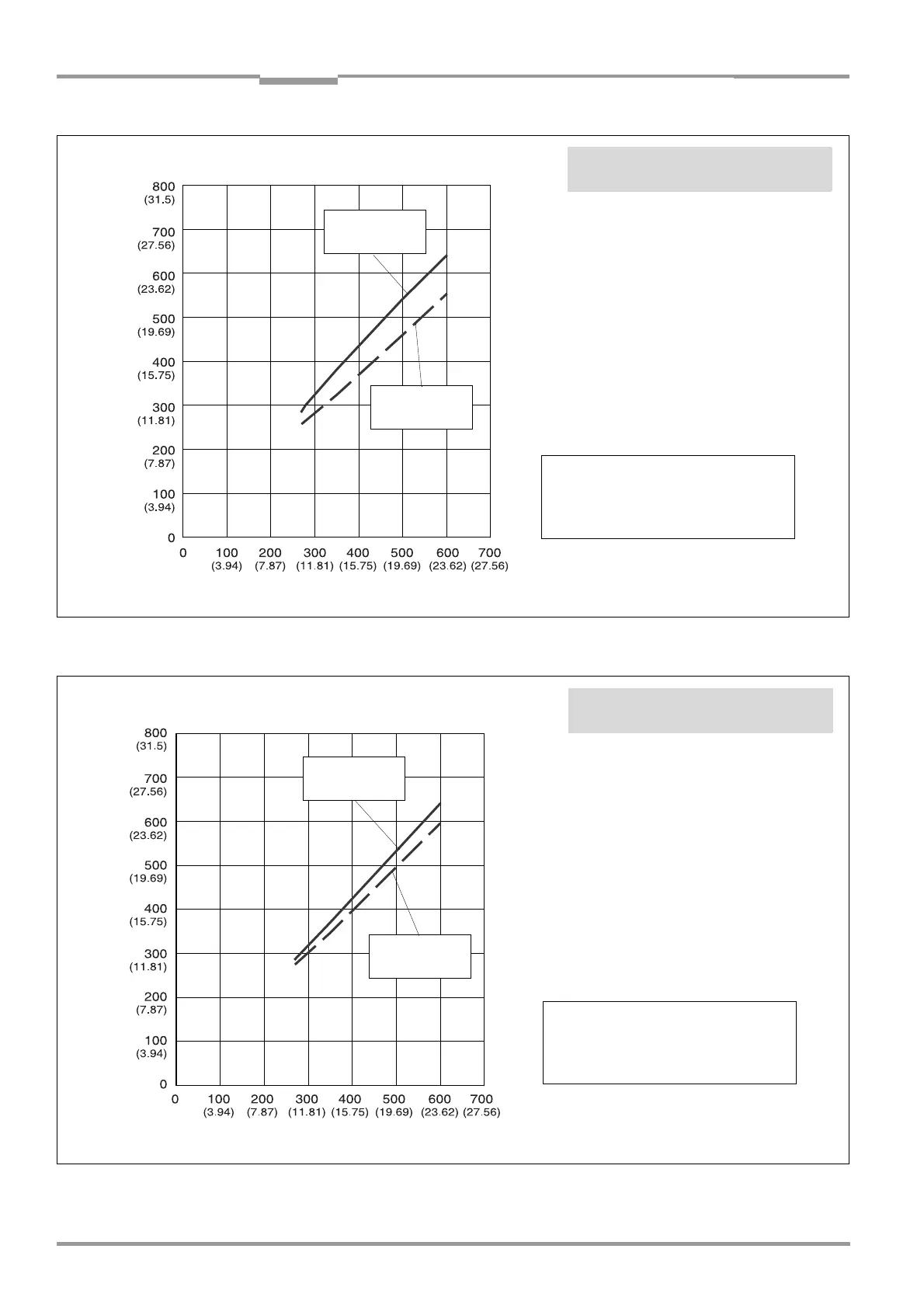

Fig. 10-2: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 0.25 mm (9.8 mil) and an aperture angle of 40°
Fig. 10-3: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 0.25 mm (9.8 mil) and an aperture angle of 60°
max. reading
distance
Line scanner (front reading window): CLV 480-0010/-0011
Radial
reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
Focus position
min. reading
distance
Resolution: 0.25 mm (9.8 mil)
Aperture angle: 40°
All dimensions in mm (in)
max. reading
distance
Line scanner (front reading window): CLV 480-0010
/
-0011
Focus position
min. reading
distance
Radial
reading
distance
Resolution: 0.25 mm (9.8 mil)
Aperture angle: 60°
All dimensions in mm (in)
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
