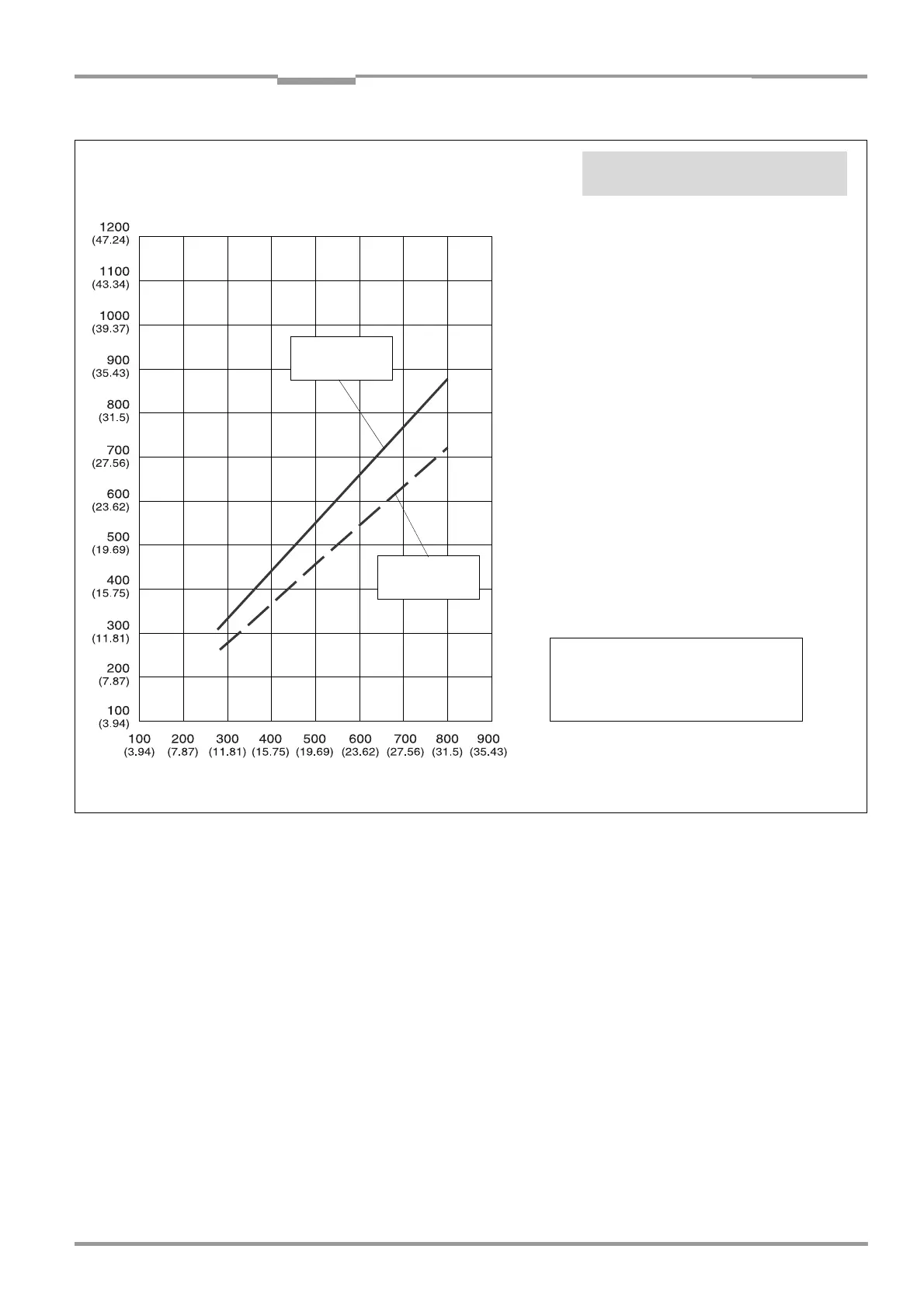

Fig. 10-4: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 0.30 mm (12 mil) and an aperture angle of 40°
Line scanner (front reading window): CLV 480-0010/-0011
Radial reading distance
Focus position
min. reading
distance
max. reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
All dimensions in mm (in)
Resolution: 0.30 mm (12 mil)
Aperture angle: 40°
