Chapter 10 Operating Instructions
CLV 480 Bar Code Scanner
10-6 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Appendix

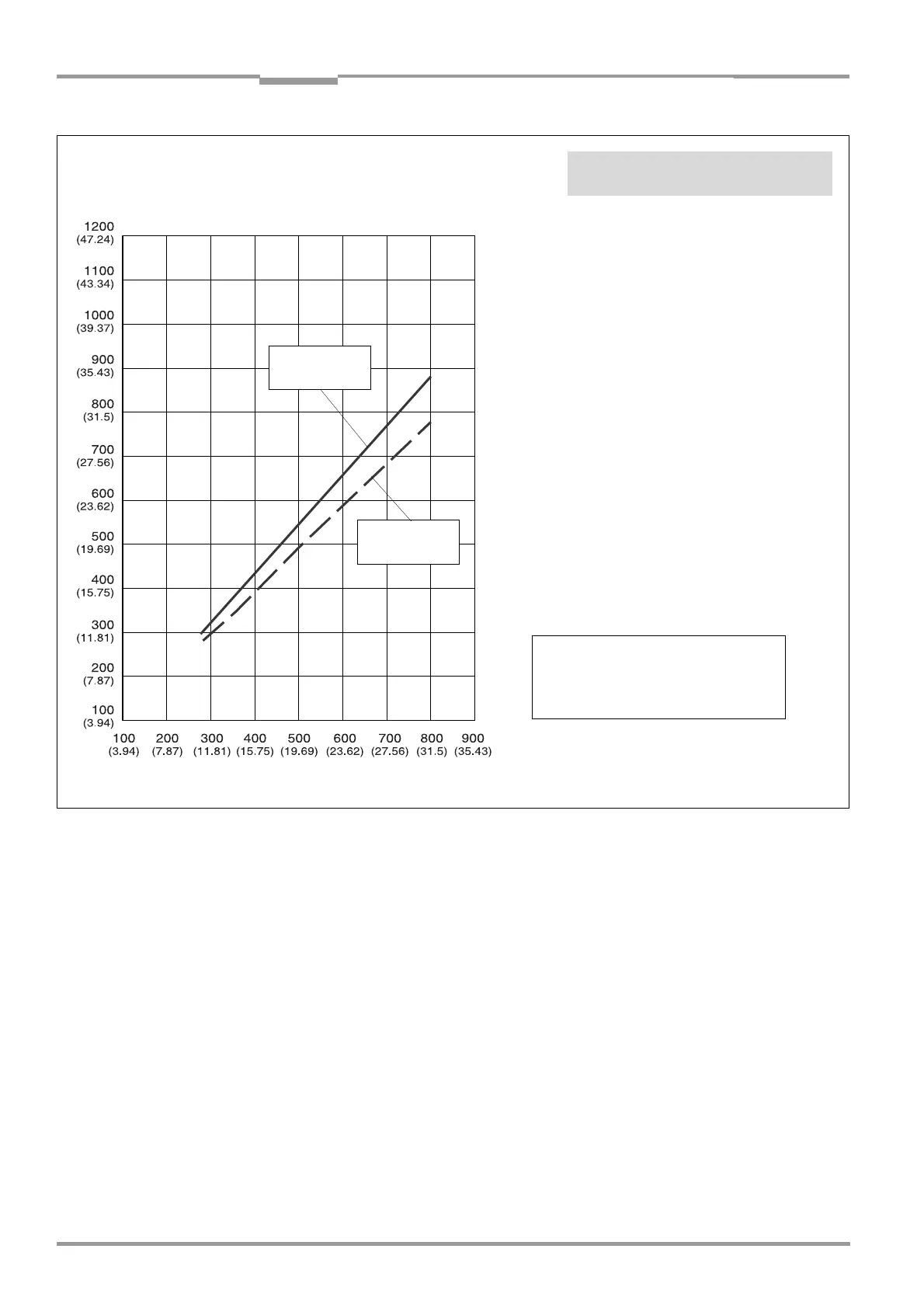

Fig. 10-5: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 0.30 mm (12 mil) and an aperture angle of 60°
Line scanner (front reading window): CLV 480-0010/-0011
Radial reading distance
Focus position
min. reading
distance
max. reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
All dimensions in mm (in)
Resolution: 0.30 mm (12 mil)
Aperture angle: 60°
