Operating Instructions Chapter 10
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 10-7
Appendix

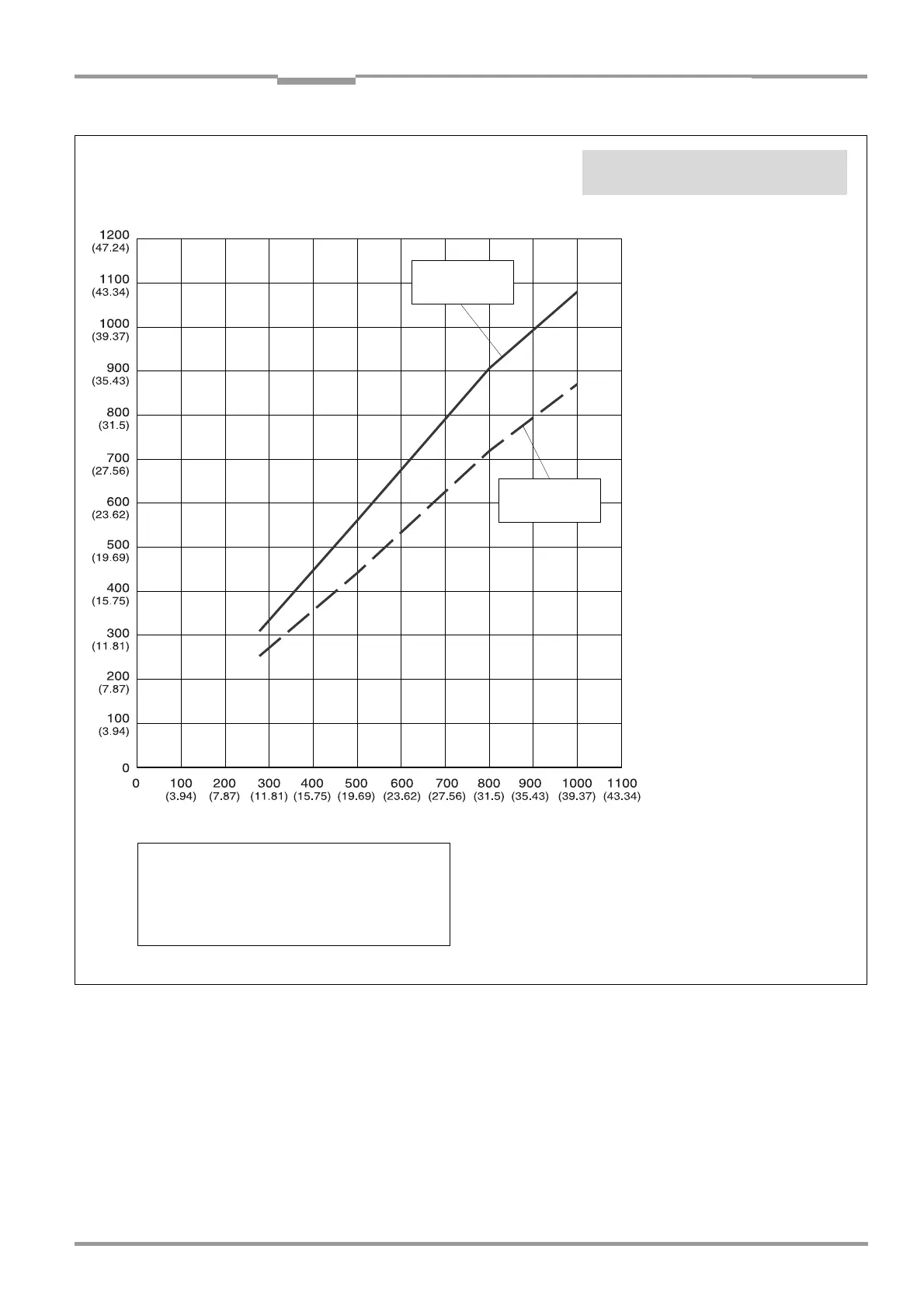

Fig. 10-6: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 0.35 mm (13.8 mil) and an aperture angle of 40°
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45° up to focus position 900 mm (35.4 in)
Tilt ±30° up to focus position 1,000 mm (39.4 in)
See also Table 10-1, Page 10-1
Line scanner (front reading window): CLV 480-0010/-0011
Radial reading distance
Focus position
min. reading
distance
max. reading
distance
Resolution: 0.35 mm (13.8 mil)
Aperture angle: 40°
All dimensions in mm (in)
