SICK microScan3 - EFI-pro User Manual

DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
b
Make sure that the following design requirements are met so that the safety laser
scanner can fulfill its protective function.
•
T
he safety laser scanner must be affixed so that people or parts of the body are
reliably detected upon entry into the hazardous area.
•
The safety laser scanner must be affixed so that no mirrors or other exceedingly
reflective objects are in the protective field.
•
The safety laser scanner must be affixed so that no small objects (e.g. cables) are
in the protective field, even if the safety outputs do not switch to the OFF state as
a result.
•
The safety laser scanner must be affixed so that no obstacles disrupt the safety
laser scanner’s field of view. Take additional protective measures if a risk arises
due to unavoidable obstacles.
•
If people can stay between the protective device and the hazardous point without
being detected, check if additional protective measures (e.g. restart interlock) are
required.
•
Reaching under, over and around, crawling beneath and stepping over the safety
laser scanner, as well as moving it, must be prevented.

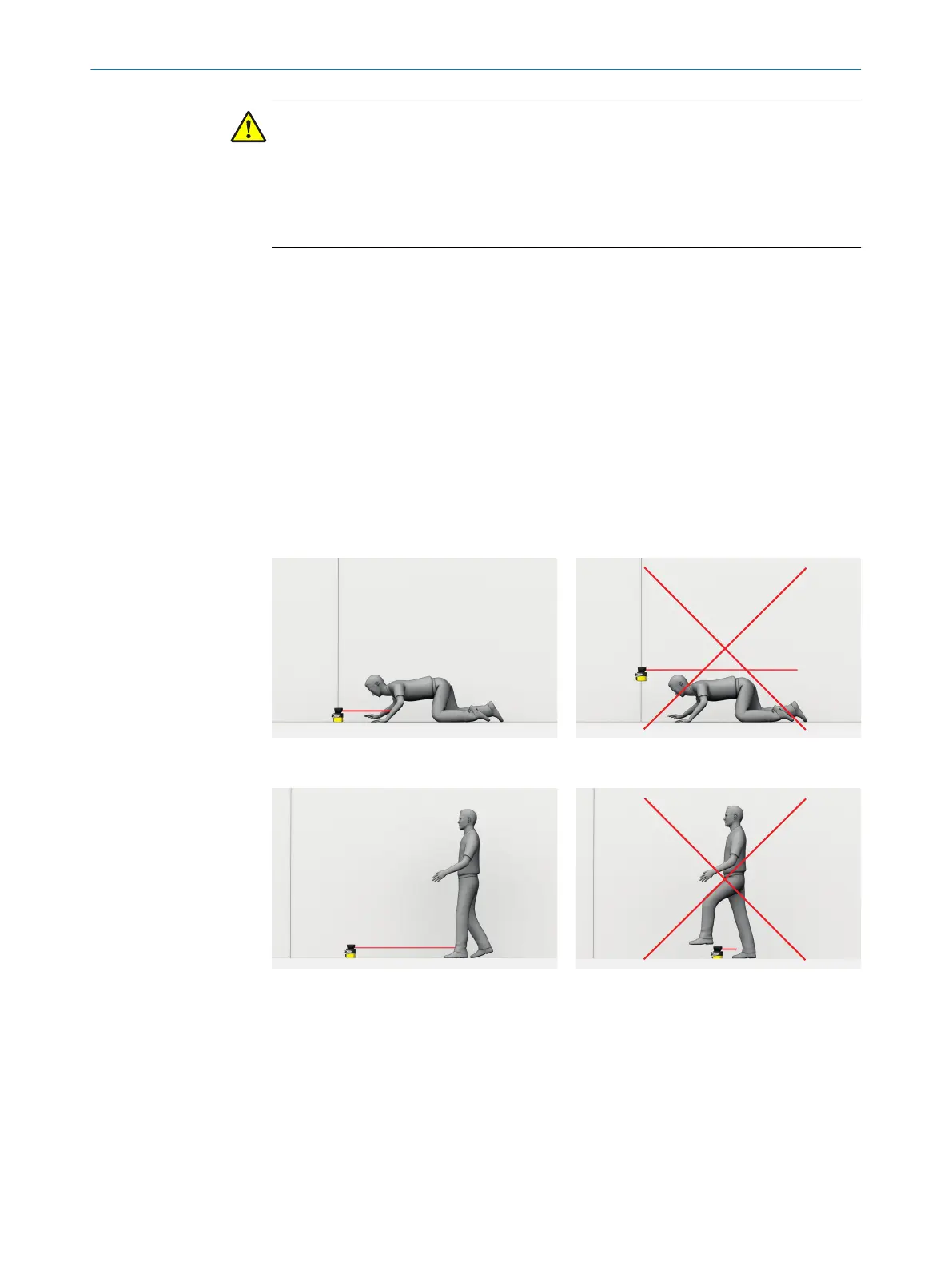

Figure 17: Prevent crawling beneath
Figure 18: Prevent stepping over
4 P
ROJECT PLANNING
26
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
