Decrease the suggested field
If y
ou walk the imaginary field on its borders and, e.g. hold a board or cardboard into
the laser beam, the surrounding contour is thereby limited. As long as the Propose field
function is active, the proposed field is reduced to the respectively measured surround‐
ing contour.
Approach
1. Select field type.
2. Click on Propose field.
✓
The safety laser scanner scans the contour of the room.
3. If necessary, reduce the size of the suggested field.
4. Click on Propose field again.
✓
The Safety Designer displays the proposed field.
7.11 Inputs and outputs
Overview

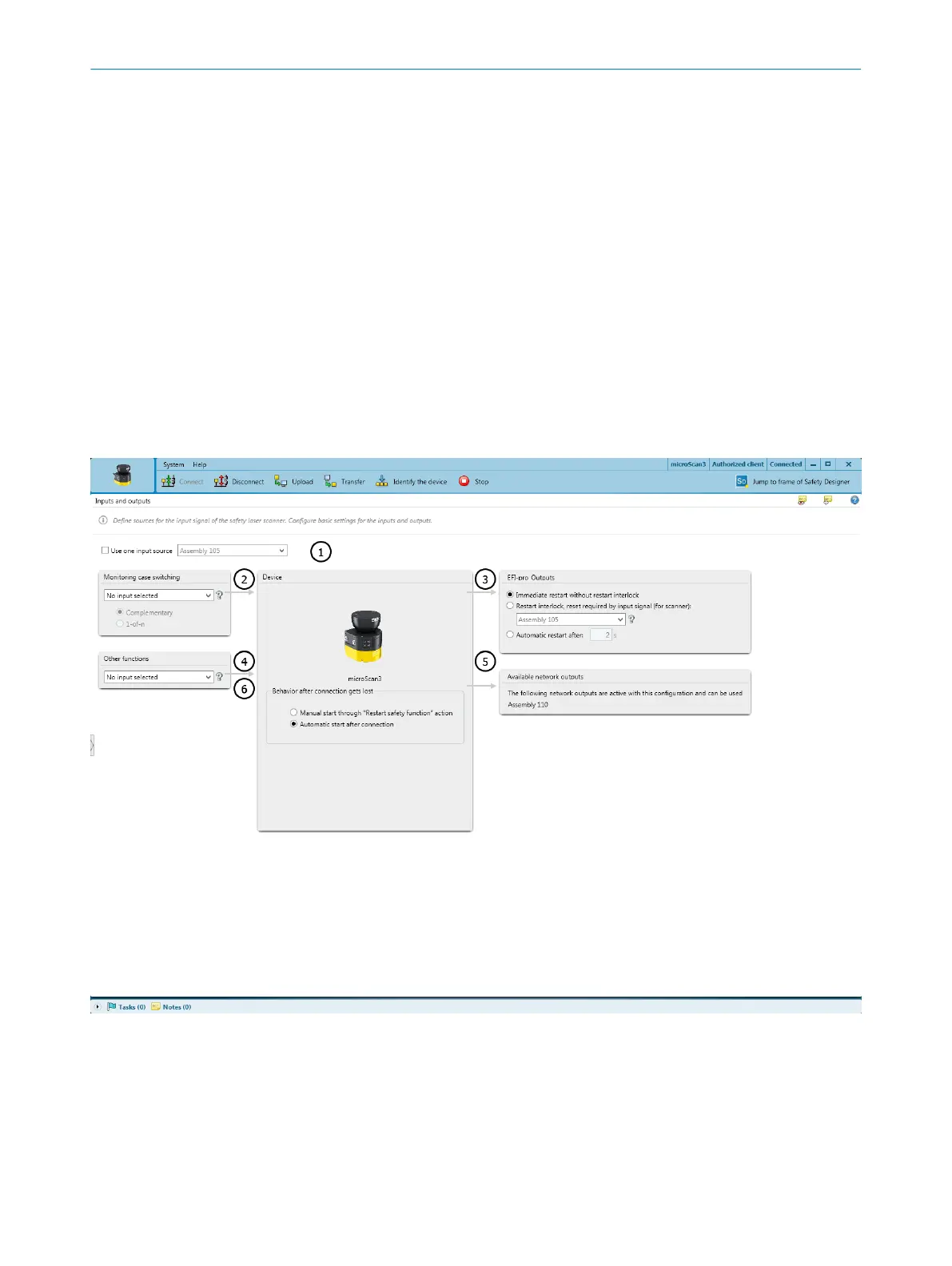

Figure 69: Inputs and outputs
1
Use an input source
2
Input for switching between monitoring cases
3
Input and settings for restart interlock
4
Input for additional functions
5
Network outputs
6
Behavior on connection termination
CONFIGURATION 7
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
103
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
