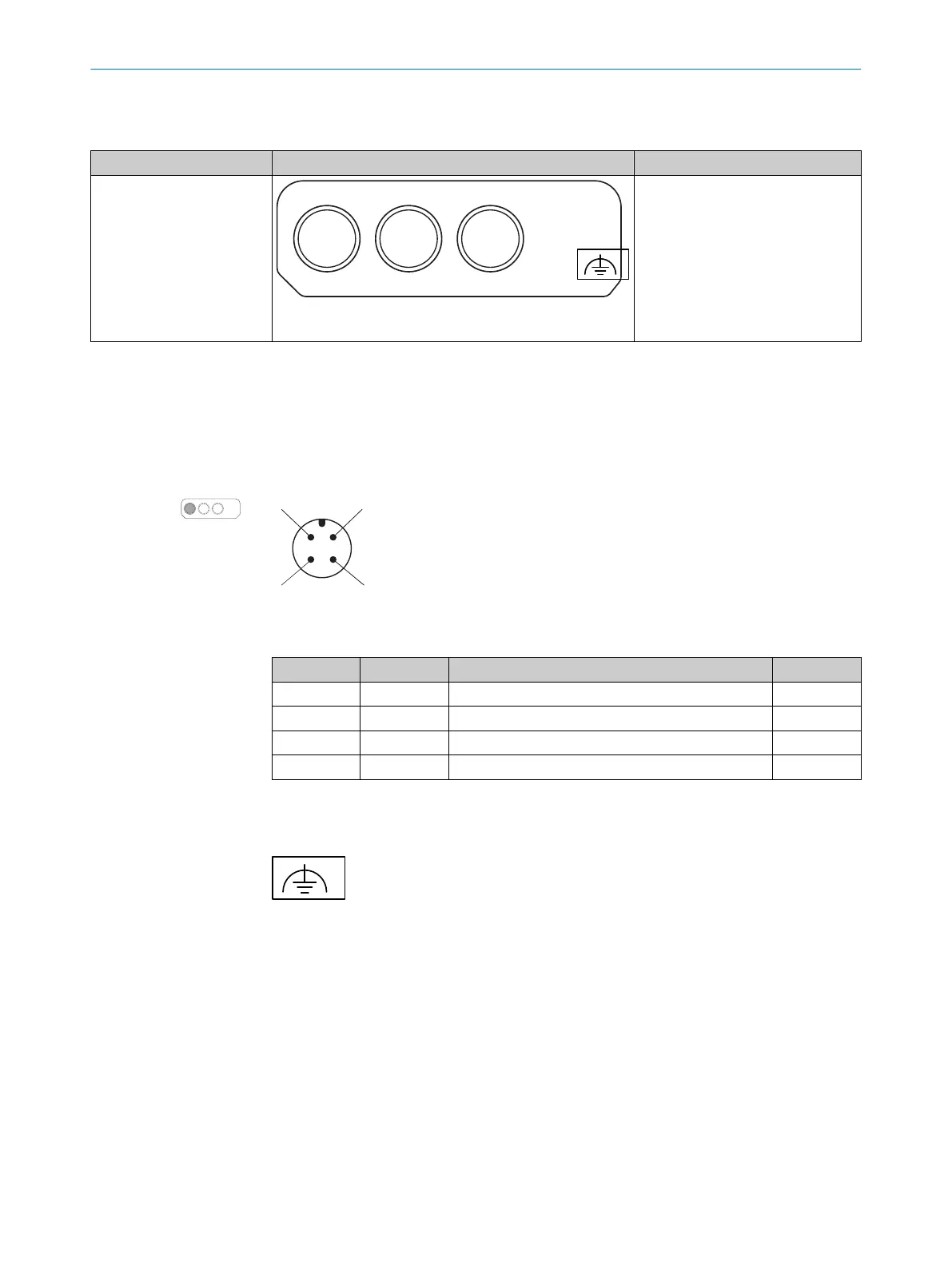

6.2.1 microScan3 – EFI-pro
Table 6: System plug and connections: microScan3 – EFI-pro
Safety laser scanner Suitable system plug Plug connector
microScan3 – EFI-pro
XD1 XF1 XF2
MICSX-BANNZZZZ1 (part number: 2086102)
•
XD1: v
oltage supply, page 72
•
XF1, XF2: 2 × Ethernet for EFI-
pro, data output, configuration,
and diagnostics, page 73
•
Alternative FE connection,
page 72
6.3 Pin assignment
You will find the pin assignment for the individual plug connectors in the following.
6.3.1 Voltage supply (XD1)
Voltage supply is supplied via a 4-pin, A-coding M12 male connector on the device side.
12
3 4
Figure 51: Pin assignment of the voltage supply (male connector, M12, 4-pin, A-coded)
Table 7: Pin assignment of the voltage supply
Pin Marking Function Wire color
1)
1 +24 V DC 24 V DC supply voltage Brown
2 NC Not connected White
3 0 V DC 0 V DC supply voltage Blue
4 FE Functional earth/shield Black
1)
Applies to the connecting cables recommended as accessories.
6.3.2 Alternative FE connection
Figure 52: Alternative FE connection
Scr
ew connection of the alternative FE connection
•
Screw: M5 × 12
•
Tightening torque: 3.5 Nm to 5.0 Nm
Suitable cable lugs
•
Forked cable lug or ring cable lug
•
Width ≤ 10 mm
•
Hole diameter for screw: typically 5.2 mm
6 ELE
CTRICAL INSTALLATION
72
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
