SICK microScan3 - EFI-pro User Manual

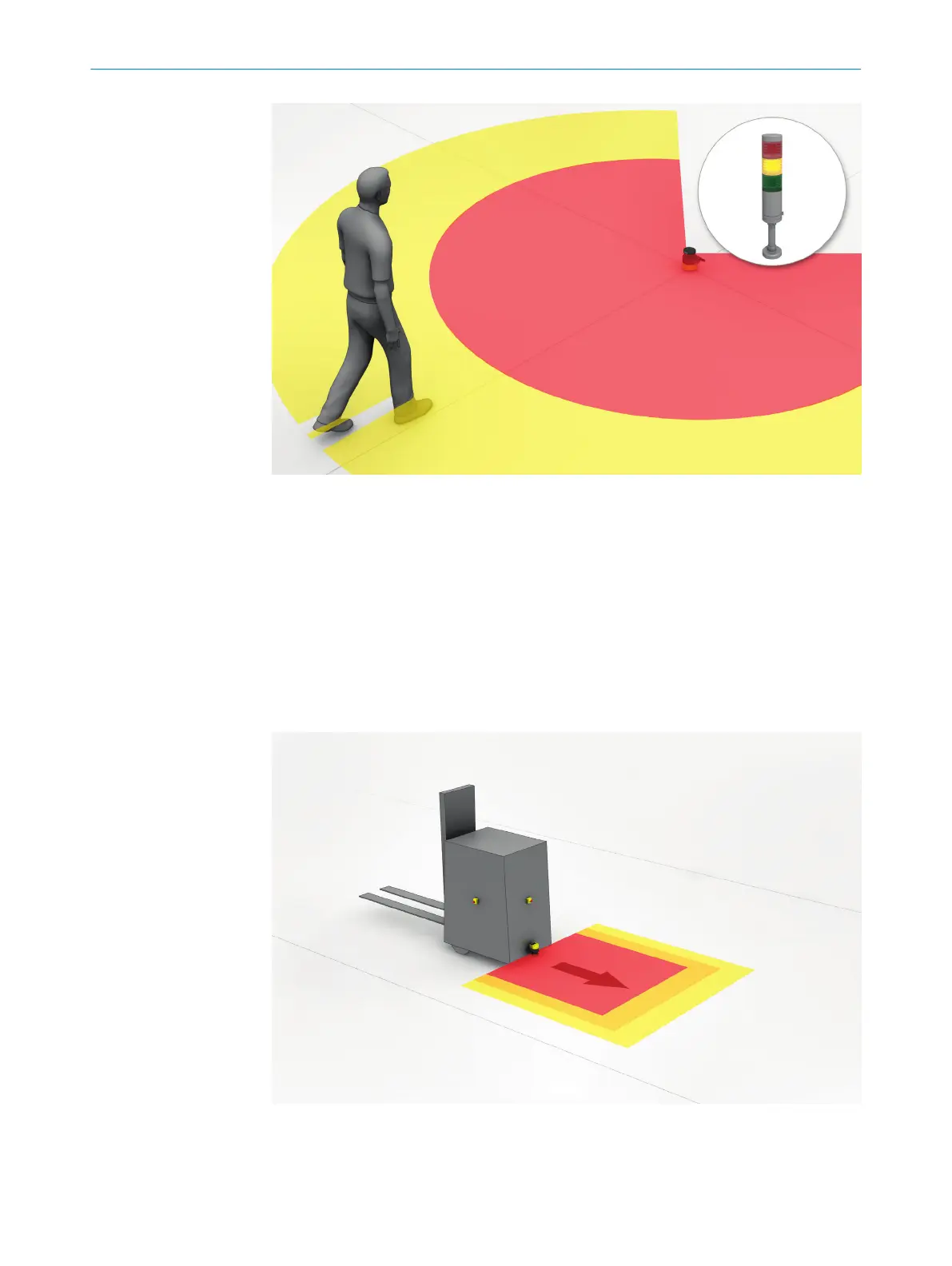

Figure 8: Warning field, shown in yellow or orange in this document
3.2.7 Field set
A field set consists of one or more fields. The fields in a field set are monitored simulta‐
neousl
y.
A field set can contain various types of field.
A typical application is the use of a protective field with one or more warning fields: if a
vehicle approaches a person, a warning field triggers an optical or acoustic signal. If the
person does not react to this and the vehicle continues to approach, the safety laser
scanner detects an object in the protective field and switches the associated safety out‐
puts to the OFF state. The vehicle stops before it reaches the person.
Figure 9: Field set, consisting of one protective field (red) and 2 warning fields (orange and yel‐
lo
w)
3 P
RODUCT DESCRIPTION
20
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
