3.2 Product characteristics
3.2.1 Device overview

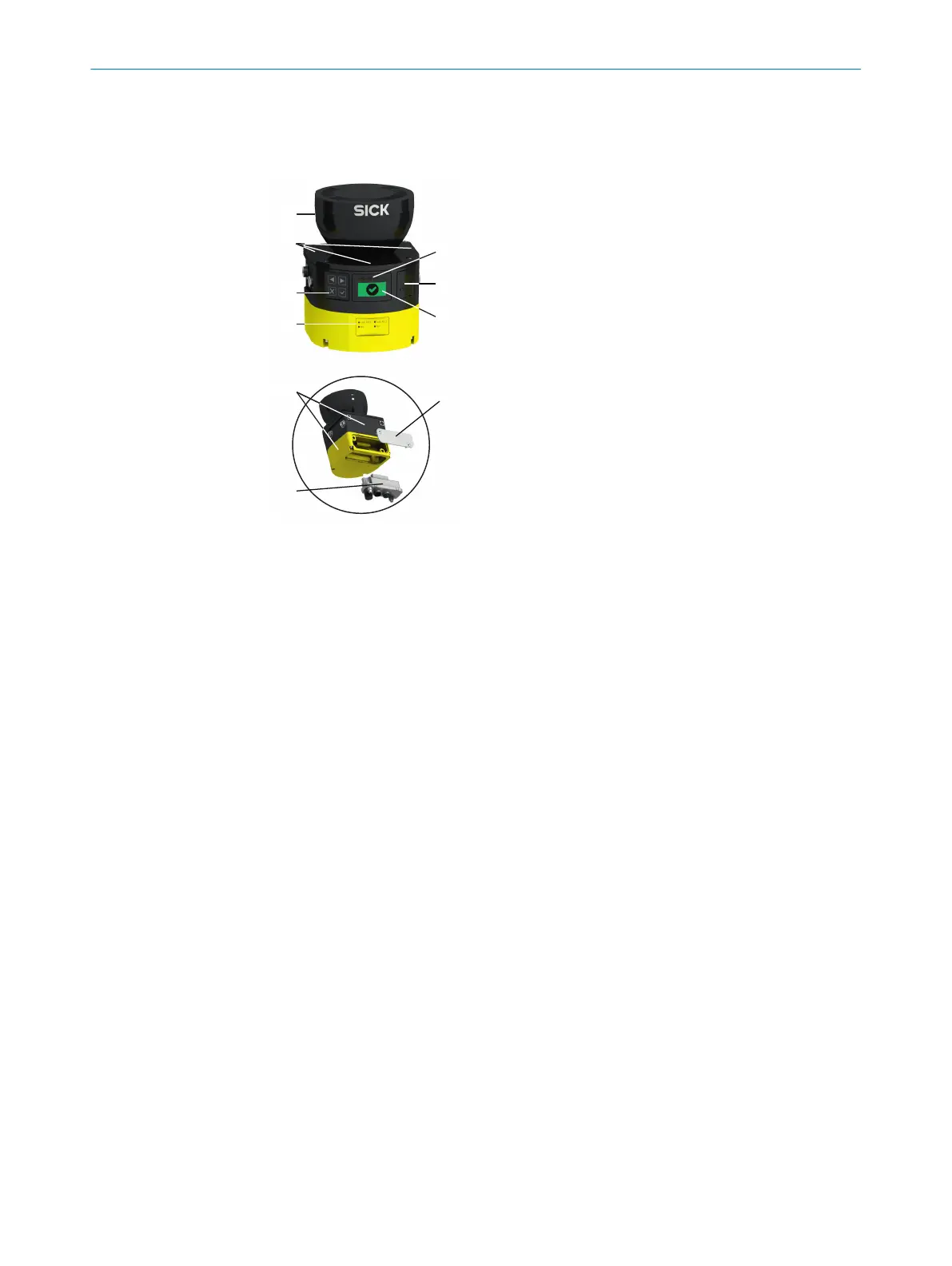

Figure 4: Device overview
1
Optics cover
2
Display
3
Keypad
4
USB port
5
Status LEDs
6
Additional LEDs for ON state and OFF state
7
Network LEDs
8
Safety laser scanner without system plug
9
System plug
ß
Cover plate
Different variants of the safety laser scanner are available, see "V
ariants", page 16.
Further information about the variants see "Variant overview", page 151.
All variants have an optics cover and the rotating mirror is located below the optics
cover. The light pulses are emitted and the reflected light pulses are received through
the optics cover.
The display with 4 pushbuttons is located below the optics cover. The safety laser scan‐
ner also has a number of light emitting diodes, see "Status indicators", page 16, see
"Buttons and display", page 122.
Information about connections: see "Connections", page 17.
The safety laser scanner can be mounted and operated in any alignment. In this docu‐
ment, position and direction information is used as follows with respect to the safety
laser scanner, as long as different usage is not indicated separately:
•
The top is the side of the safety laser scanner on which the optics cover is located.
•
The bottom is the side of the safety laser scanner opposite the optics cover.
PRODUCT DESCRIPTION 3
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
15
Subject to change without notice
