SICK microScan3 - EFI-pro User Manual

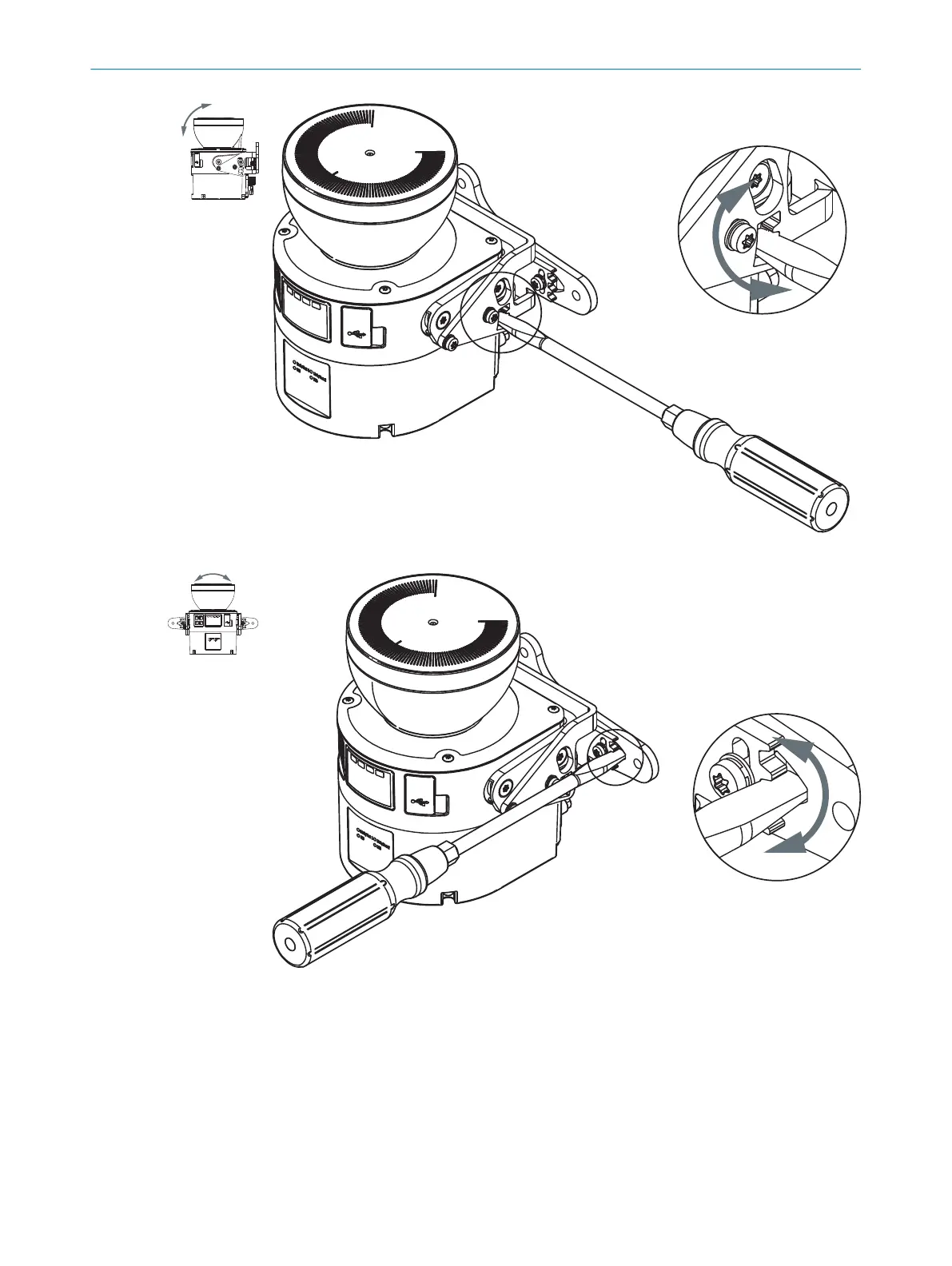

Figure 74: Alignment about the transverse axis
Figure 75: Alignment about the depth axis
b
Af
ter alignment, tighten the screws with the specified tightening torque.
Further topics
•
"Mount
ing using mounting kit 2", page 68
8.3 Switching on
After switching on, the safety laser scanner performs various internal tests. The OFF
LED illumina
tes continually. The ON LED is off.
8 C
OMMISSIONING
118
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
