SICK microScan3 - EFI-pro User Manual

1
Mirror rotational axis
2
Scan plane
1
1
2
127
4
207,8
184
137
113,1
108,5
67,8
23,5
20
57,8
50,2
5,8
10,1
4
Ø 6
Ø 6

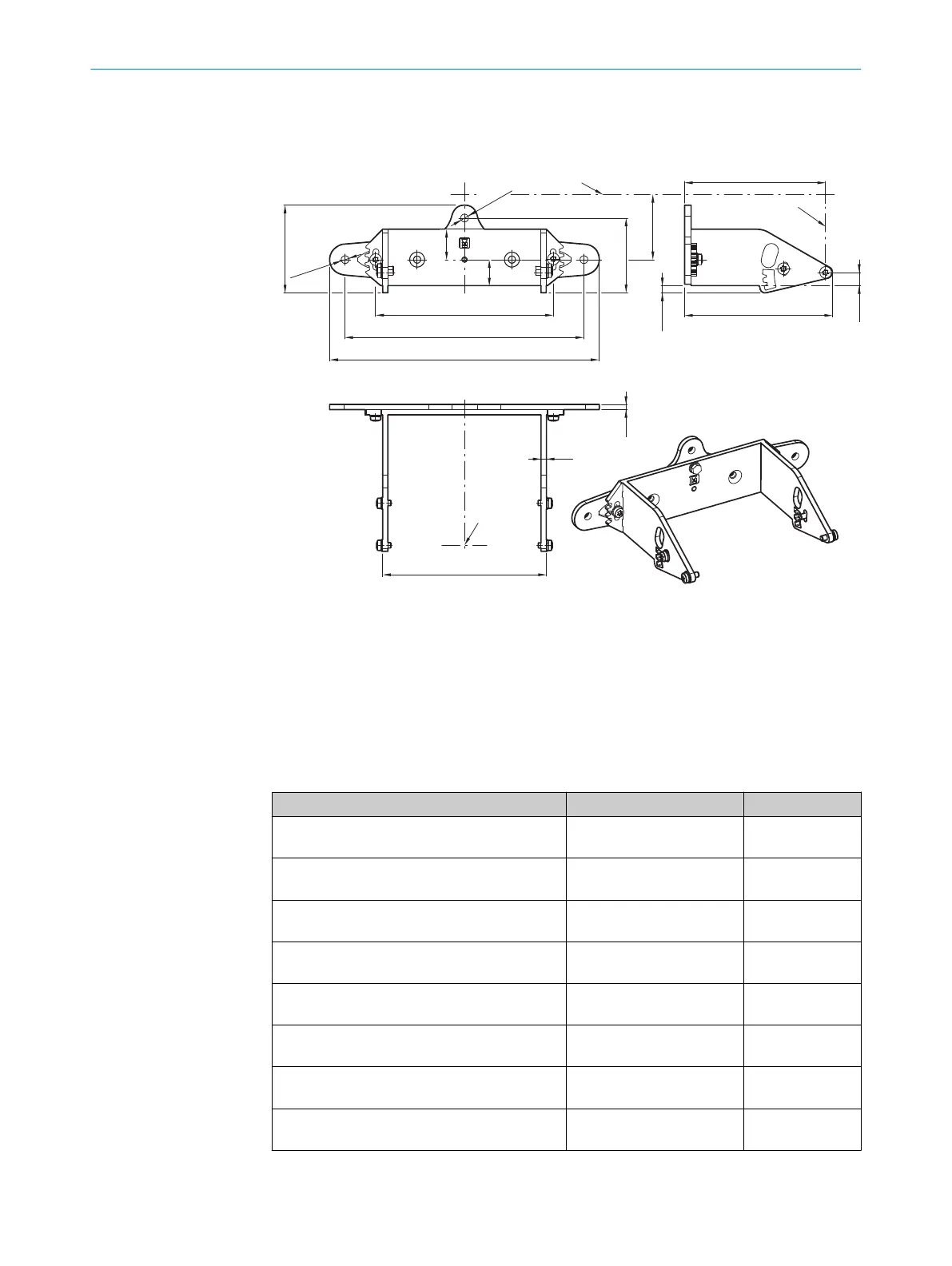

Figure 99: Mounting kit 2b
All dimensions in mm.
1
Mirror rotational axis
2
Scan plane
16.2 Connection technology
Cables
T
able 51: Ordering information for connecting cable, M12, 4-pin, A-coding
Part Type code Part number
Female connector, straight, 2 m cable, flying
le
ads
DOL-1204G02MC75KM0 2079290
Female connector, straight, 5 m cable, flying
le
ads
DOL-1204G05MC75KM0 2079291
Female connector, straight, 10 m cable, flying
leads
DOL-1204G10MC75KM0 2079292
Female connector, straight, 20 m cable, flying
leads
DOL-1204G20MC75KM0 2089703
Female connector, angled, 2 m cable, flying
le
ads
DOL-1204W02MC75KM0 2079293
Female connector, angled, 5 m cable, flying
leads
DOL-1204W05MC75KM0 2079294
Female connector, angled, 10 m cable, flying
le
ads
DOL-1204W10MC75KM0 2079295
Female connector, angled, 20 m cable, flying
leads
DOL-1204W20MC75KM0 2089704
16 ACCESSORIES
172
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
