7.12 Monitoring cases
Overview

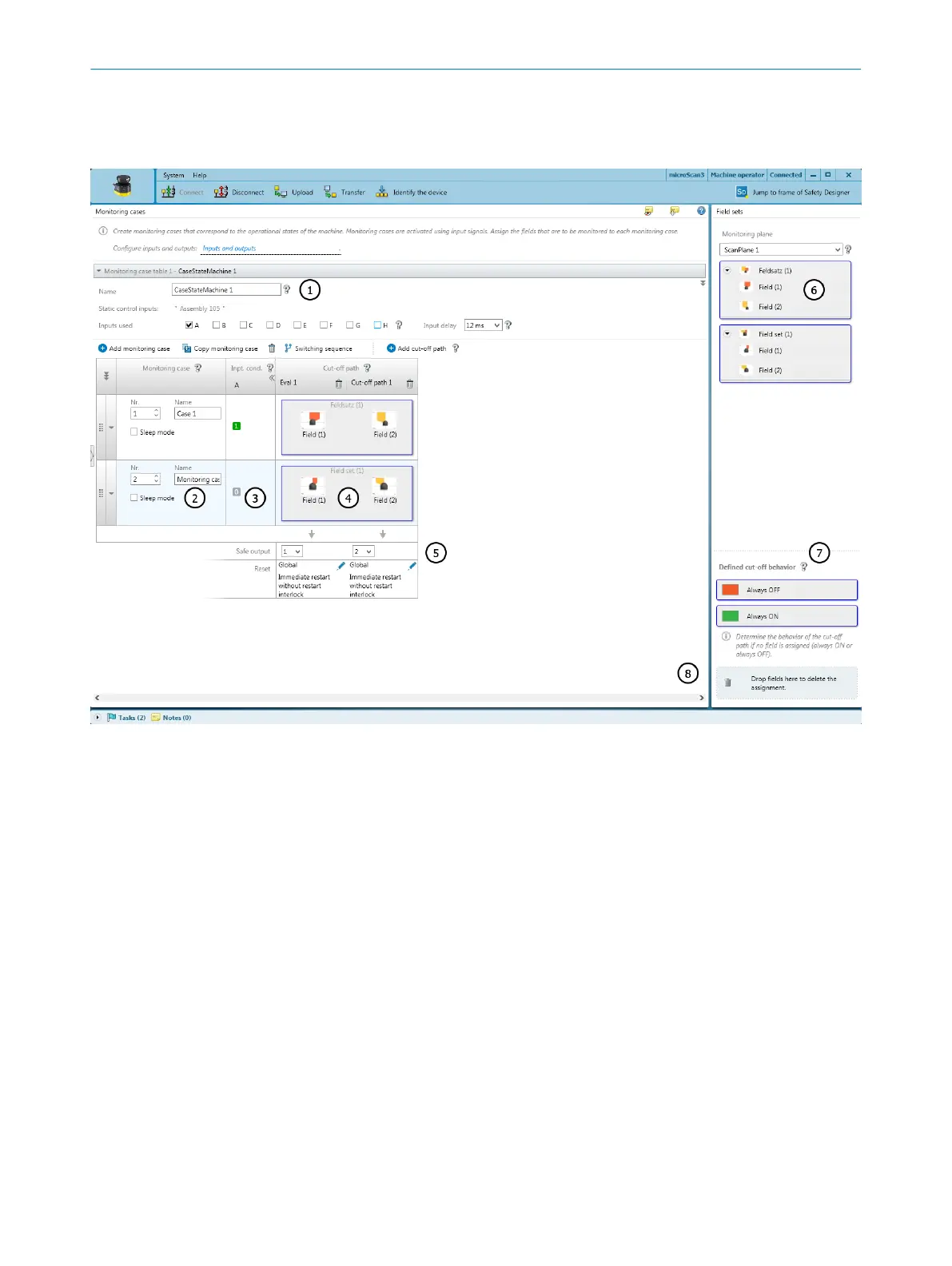

Figure 70: Monitoring cases
1
Settings for the whole monitoring case table
2
Settings for the individual monitoring case
3
Input conditions for a monitoring case
4
Field set in the monitoring case and in the cut-off path
5
Cut-off paths
6
Configured field sets
7
Areas for defined cut-off behavior
8
Remove field set from a monitoring case
You can create monitoring case tables and possible switching criteria for the monitoring
c
ases in the monitoring case editor. You can also define the monitoring cases and their
input conditions and assign the field sets.
Further topics
•
"Monitoring case", page 21
7.12.1 Settings for monitoring case tables
Name
Ent
er a name which is as descriptive as possible for the monitoring case table in the
Name field.
CONFIGURATION 7
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
105
Subject to change without notice
