SICK microScan3 - EFI-pro User Manual

11.4.1 Data recorder
Overview

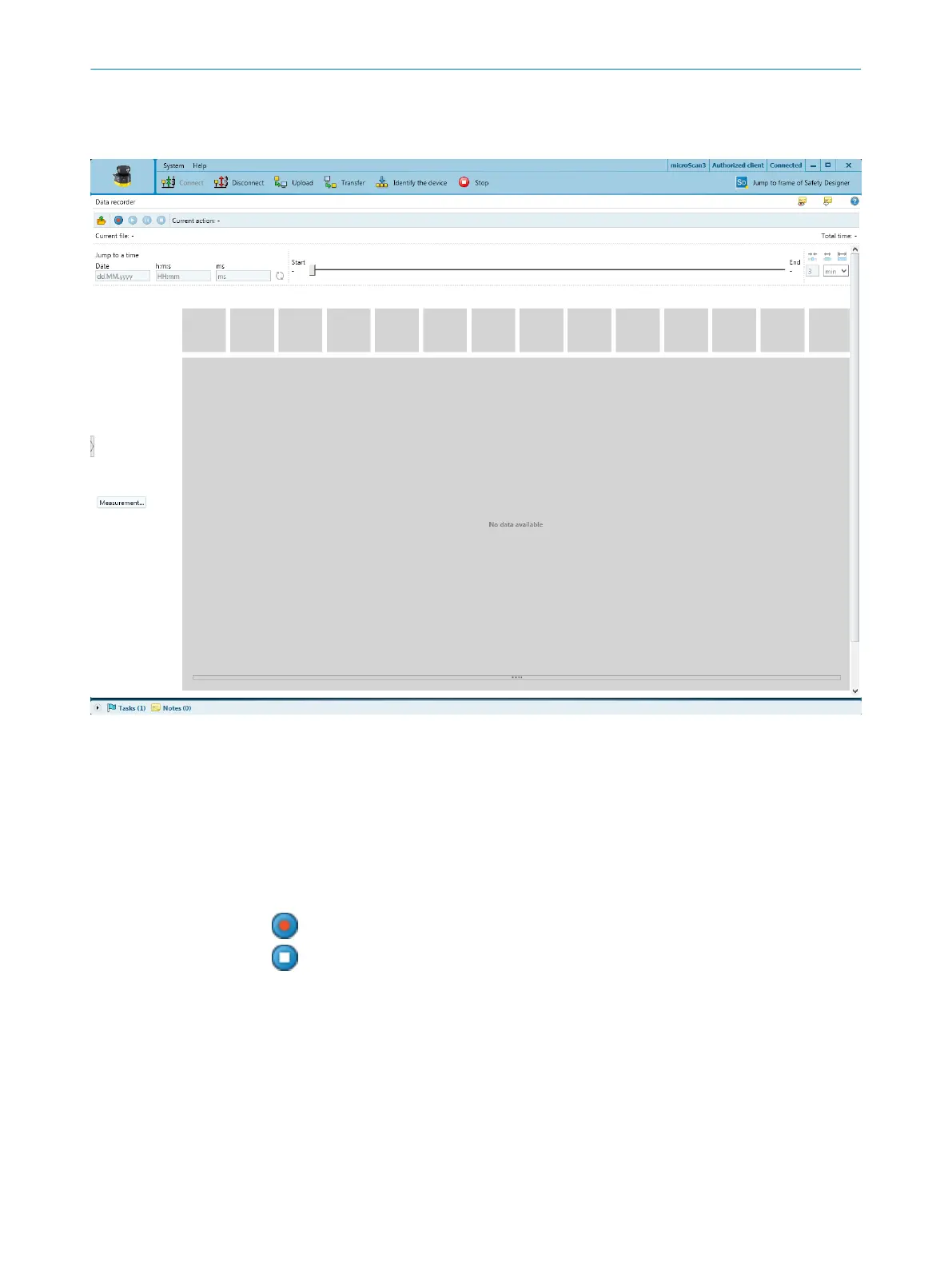

Figure 88: Data recorder
Y
ou can use the data recorder to record the device’s signals continuously. The measure‐
ment data are not transmitted and shown for every scan cycle, depending on the inter‐
face and your capacity.
The data is saved in a data recorder diagnostics file.
The data recorder diagnostics file can be run in the data recorder.
Settings can be made in the safety designer frame.
Start recording
Stop recording
Typical applications
•
Check spatial geometry
•
Check where a person can stay or when a person is detected
•
Check input information about the current monitoring case
•
Check why safety outputs have switched
Prerequisites
•
Existing connection between Safety Designer and device
•
Configuration in the project and configuration in the device are synchronized
TROUBLESHOOTING 11
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
145
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
