The safety laser scanner’s resolution can be set to the predefined value d. If the
result d
r
does not match any of these values, choose a finer resolution (d ≤ d
r
).
4.3.6.4 Distance from walls
Overview
T
he availability may be impaired if the protective field stretches as far as a wall or a
different object. So, plan to have a space between the protective field and the object. A
distance of the TZ value is recommended to ensure availability. (TZ = tolerance range of
the safety laser scanner, see "Data sheet", page 152.)
1

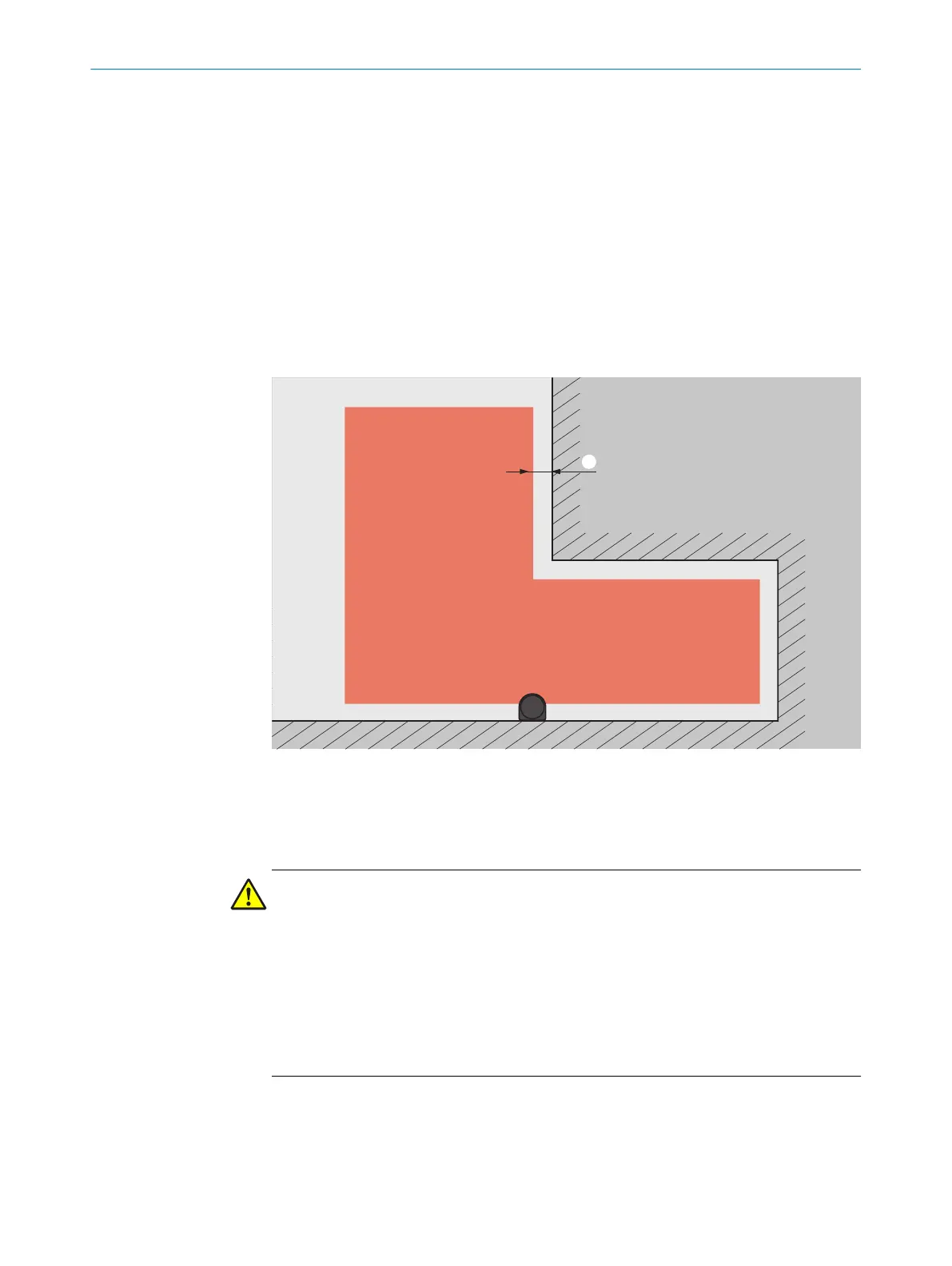

Figure 30: Distance of the protective field from the wall
1
Recommended distance of the protective field from the wall.
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
If the distance between the protective field and the wall is so large that a person can
stand in it, this person might not be detected. If needed, take suitable measures to pre‐
vent this such as:
b
Attaching deflector plates
b
Attaching fence
4 PROJECT PLANNING
40
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
