SICK microScan3 - EFI-pro User Manual

This type of protective device is used for the protection of access to hazardous areas.
W
hen the hazardous area is entered, a stop signal is triggered. A person standing
behind the protective device will not be detected by the ESPE.

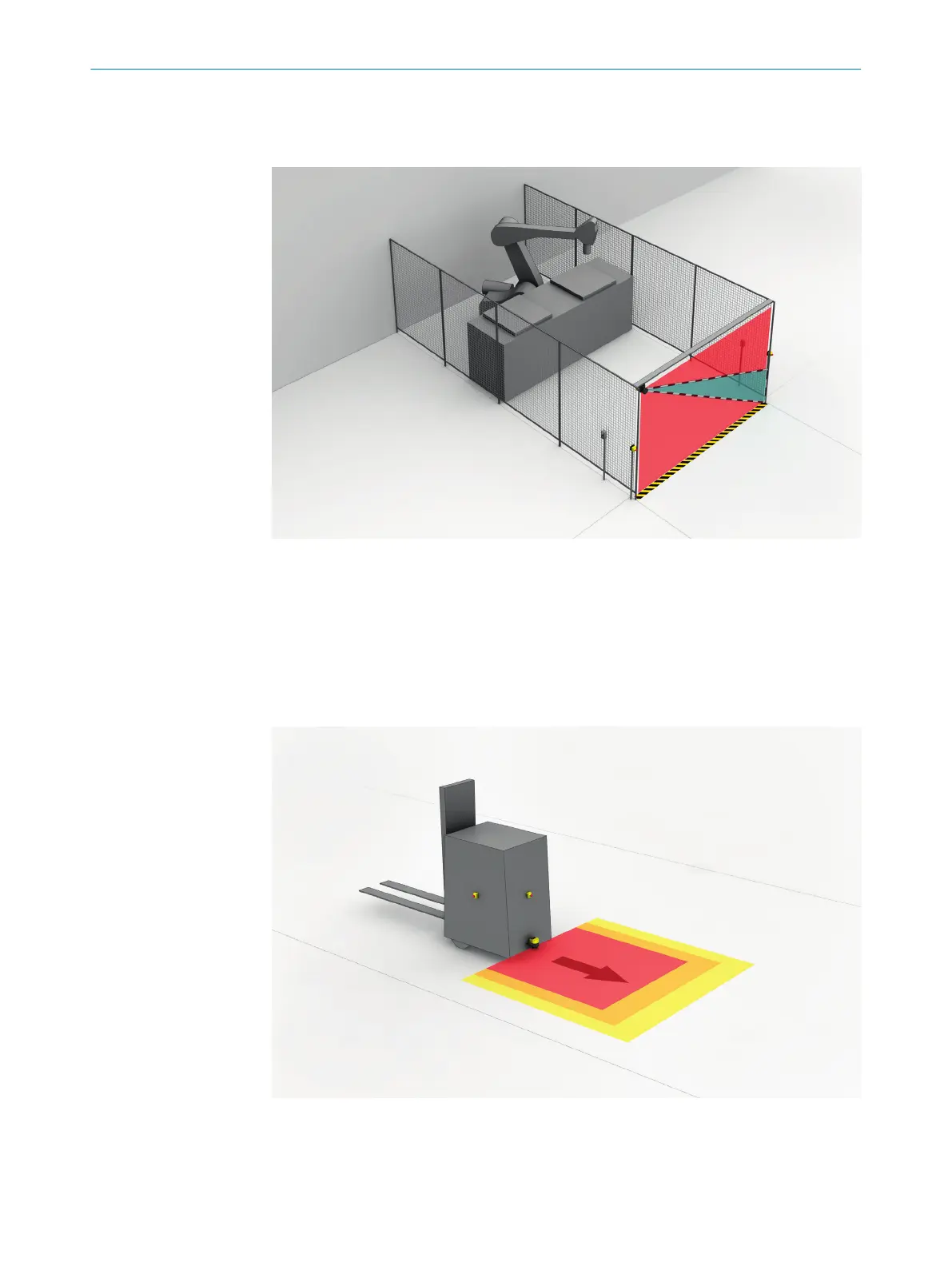

Figure 15: Access protection: detection of a person when accessing a hazardous area
Mobile hazardous area protection
Mobile ha
zardous area protection is suitable for AGVs (automated guided vehicles),
cranes and forklifts, to protect people when vehicles are moving or docking at a fixed
station.
The safety laser scanner monitors the area in the direction of travel and stops the vehi‐
cle as soon as an object is located in the protective field.
Figure 16: Mobile hazardous area protection: detection of a person when a vehicle approaches
3 P
RODUCT DESCRIPTION
24
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
