2 Safety information
2.1 General safety notes
This chapter contains general safety information about the safety laser scanner.
F
urther information about specific product use situations can be found in the relevant
chapters.
DANGER
H
azard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
b
Please read this document carefully and make sure that you understand the con‐
tent fully before working with the device.
b
Follow all safety notes in this document.
WARNING
In
visible laser radiation
Laser class 1M
IEC 60825-1:2007 & 2014
Complies with 21 CFR
1040.10 and 1040.11
except for deviations
pursuant to Laser Notice
No. 50, June 2007
CAUTION
LASER
1M

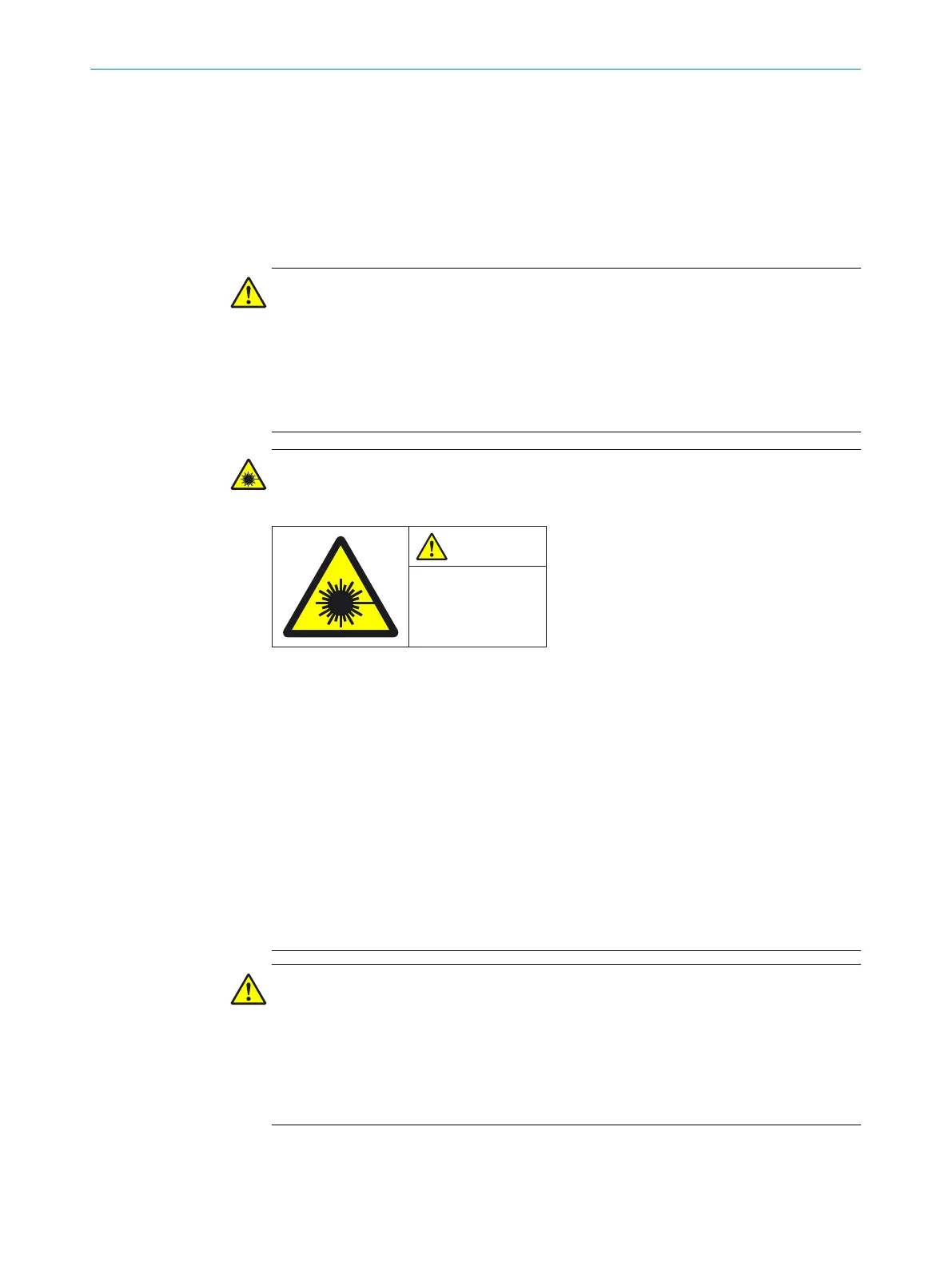

Figure 1: Laser class 1M
T
his device complies with the following standards:
•
IEC 60825-1:2007/EN 60825-1:2007
•
IEC 60825-1:2014/EN 60825-1:2014
•
21 CFR 1040.10 and 1040.11, except for changes due to Laser Notice No. 50 of
24/06/2007
The safety laser scanner’s accessible laser is not hazardous as long as the beam cross
section is not reduced by optical instruments, such as magnifying glasses, lenses, tele‐
scopes.
The curved part of the optics cover is the outlet for the laser radiation.
The laser marking is located on the underside of the safety laser scanner.
b
You must comply with the latest version of the applicable laser safety regulations.
CAUTION
If an
y operating or adjusting devices other than those specified in this document are
used or other methods are employed, this can lead to dangerous exposure to radiation.
b
Only use the operating or adjusting devices specified in this document.
b
Only follow the methods specified in this document.
b
Do not open the housing, except for the purposes of the installation and mainte‐
nance work specified in these operating instructions.
2 SAFETY INFORMATION
10
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
