18.4 Mounting methods for protection from interference from systems in close proxim‐
it
y
Mutual interference of several safety laser scanners is unlikely thanks to the safeHDDM
sc
anning technology. You can choose a suitable mounting method to guarantee particu‐
larly high availability or to avoid interference with laser scanners that do not have safe‐
HDDM functionality. In many cases, you can use the following examples as a guide.
NOTE
Y
ou must comply with the standard ISO 13855 when choosing the mounting method.

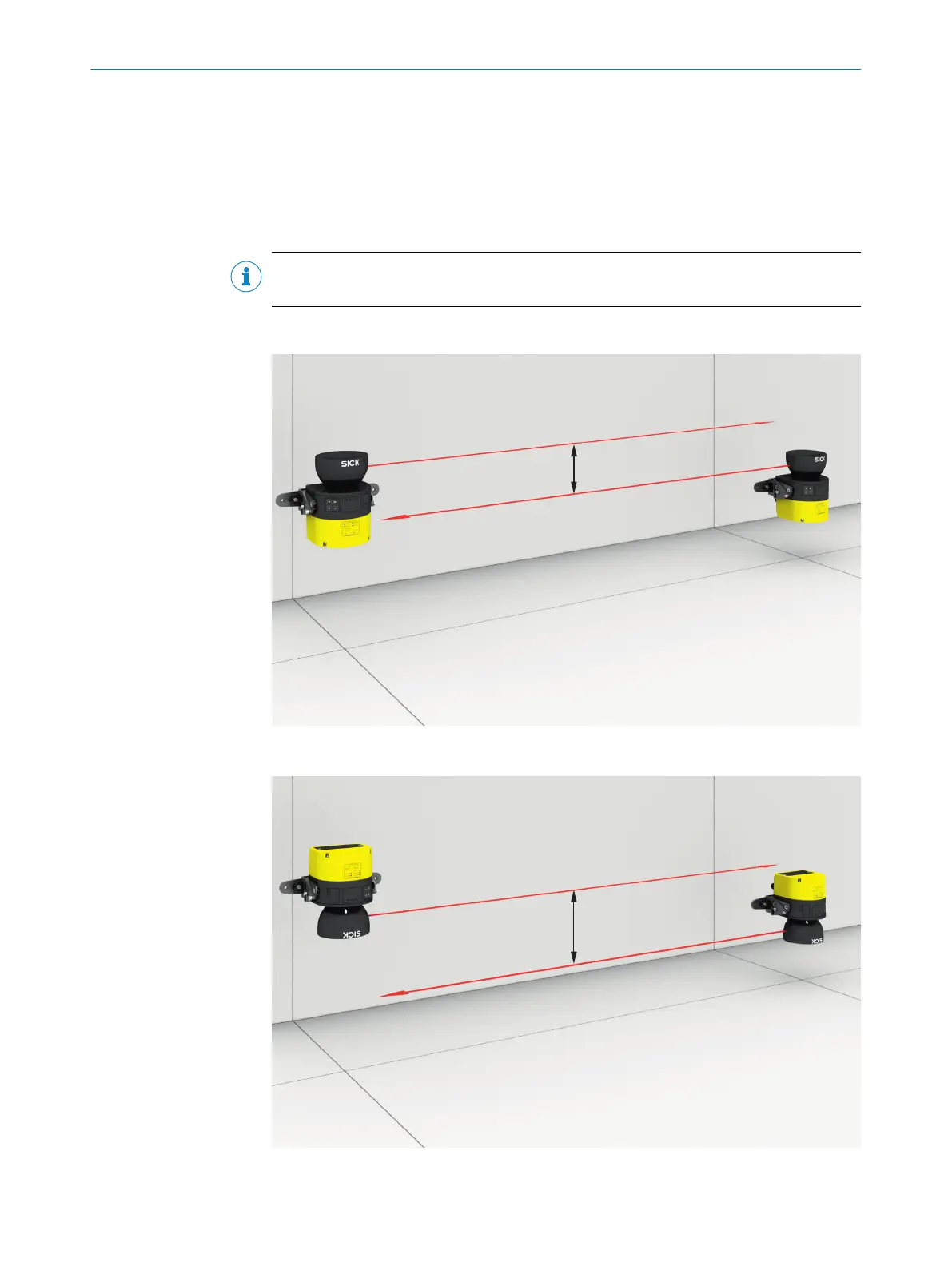

Mount several safety laser scanners offset and parallel to one another
≥ 100 mm
Figure 100: Mounting 2 safety laser scanners with the optics cover facing upward
≥ 100 mm
Figure 101: Mounting 2 safety laser scanners with the optics cover facing downward
ANNEX 18
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
183
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
