SICK microScan3 - EFI-pro User Manual

b
If t
he result is S > 500 mm, you may be able to reduce the minimum distance
using the following calculation:
S = 1600 mm/s × T + 8 ×(d – 14 mm)
✓
If t
he new value is S > 500 mm, use the newly calculated value as the minimum
distance.
✓
If the new value S is ≤ 500 mm, then use 500 mm as the minimum distance.
4.3.8 Access protection
Overview
T
he safety laser scanner is mounted with a vertical scan plane in a stationary applica‐
tion, for example on a machine, for which access to the hazardous area may be defined
structurally. For access protection, the safety laser scanner detects an intrusion by a
whole body. The protective field is orthogonal to the person’s direction of approach.
S

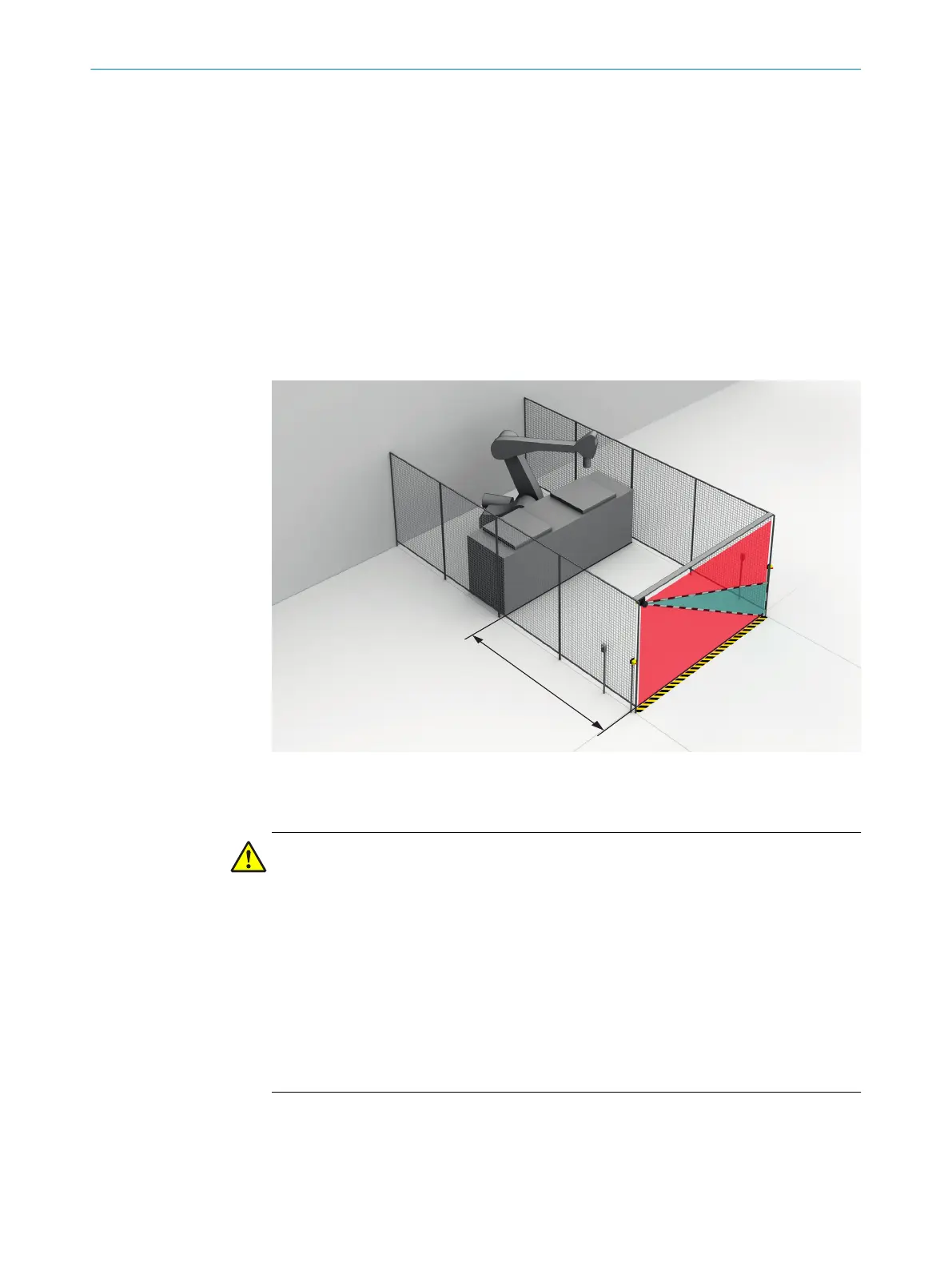

Figure 32: Stationary application in vertical operation for access protection
Important information
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
b
Use a resolution of 200 mm or finer. Otherwise, protection will not be ensured dur‐
ing access protection.
b
Use double sampling during access protection. Under certain circumstances, a
person could pass through the protective field without being detected when using
higher multiple sampling.
b
Use the contour of the environment as a reference to protect the protective device
from inadvertent adjustment or tampering (see "Reference contour monitoring",
page 30).
4 PROJECT PLANNING
44
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
