11.4.2 Event history
Overview

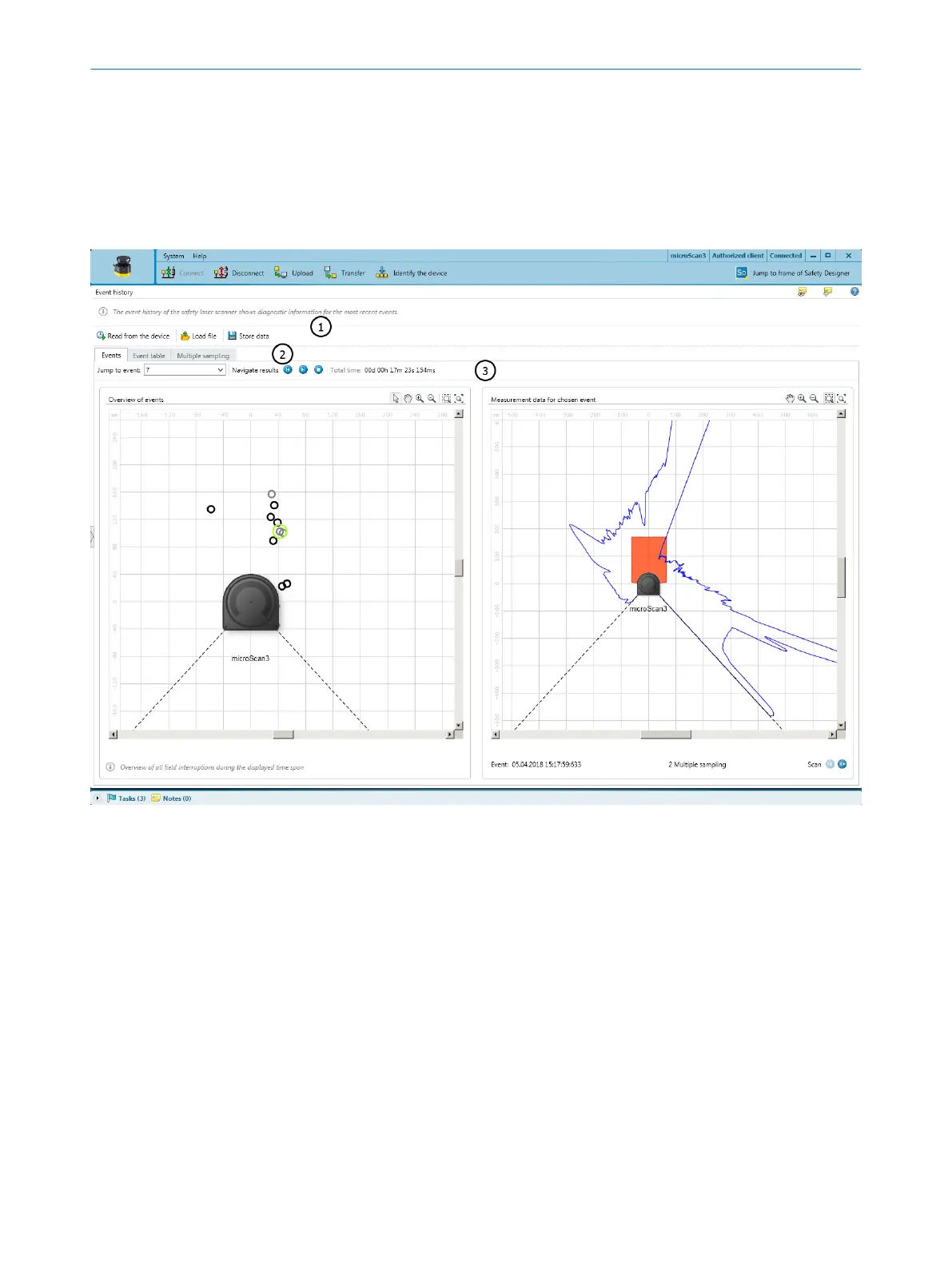

Figure 89: Event history
1
Data source
2
Available views
3
Navigation
The safety laser scanner stores data on important events. The event history displays
inf
ormation about the most recently stored events.
Event memory in the safety laser scanner
T
he safety laser scanner stores data on the following events:
•
Safety output switches to the OFF state
•
The protective field, the reference contour field or the contour identification field is
interrupted
For each field interruption where a safety output switches to the OFF state, the safety
laser scanner stores the data from 10 scans. When the internal memory of the safety
laser scanner is full, the scan data of the oldest field interruption is overwritten to store
a new field interruption. The position and time of the field interruption are retained.
The internal memory of the safety laser scanner is emptied when it is restarted.
11 T
ROUBLESHOOTING
146
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
