SICK microScan3 - EFI-pro User Manual

227,5°
0°
90°
-47,5°


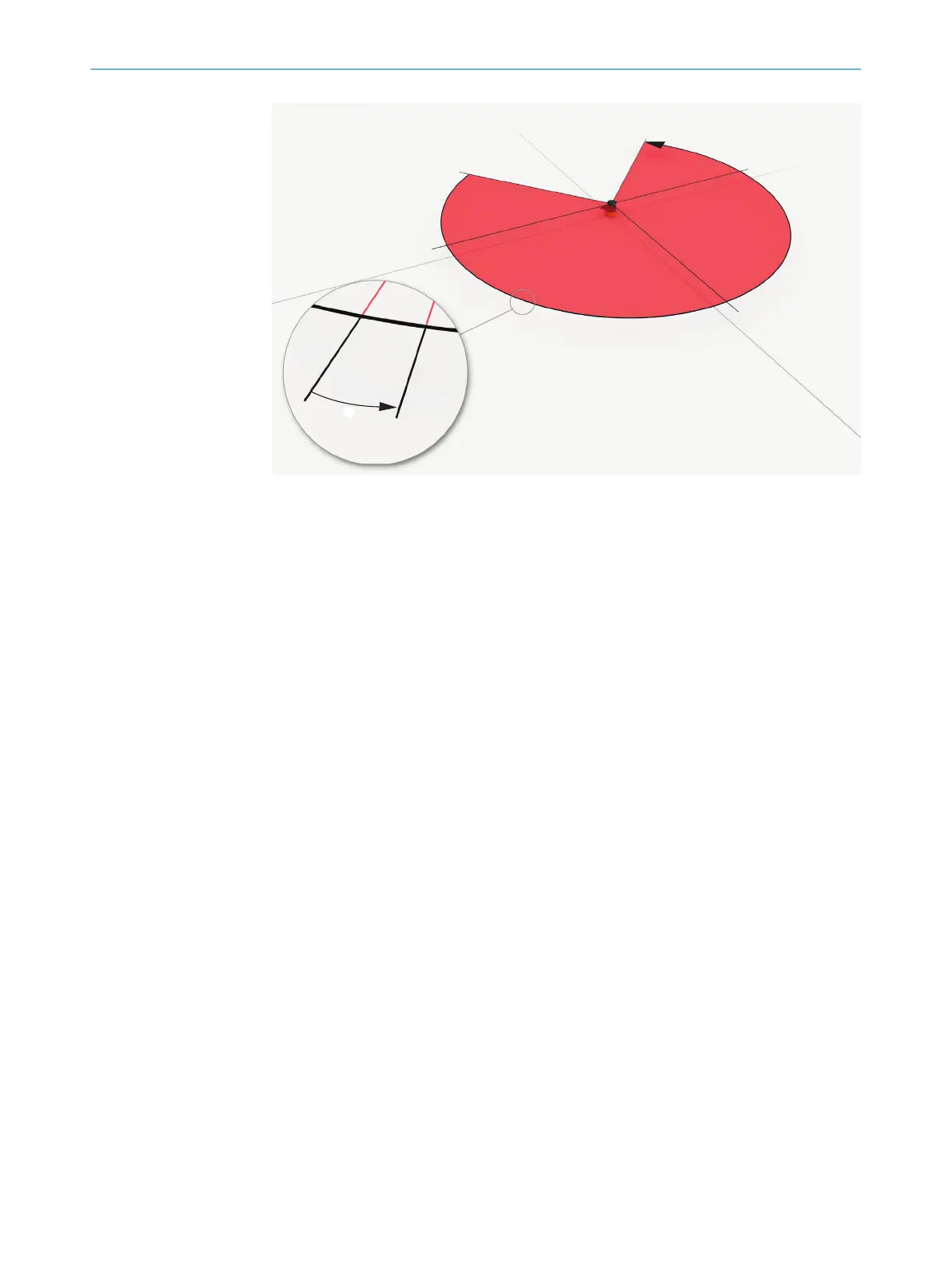

Figure 3: Light pulses scan an area
1
Angular resolution: the angular distance (in degrees) between 2 distance measurements
Scan cycle time and resolution
T
he time that the mirror requires for one rotation is called the scan cycle time. The
number of light pulses per unit of time is constant. The scan cycle time and the number
of light pulses per unit of time determine the angular resolution. The scanning range for
a given object resolution depends on the angular resolution. The object resolution indi‐
cates the minimum size that an object must be to allow it to be detected safely. The
scan cycle time also influences the response time.
Slightly different scan cycle times can be used to minimize mutual interference in
neighboring safety laser scanners.
The resolution in protective fields can be set to various values according to the
intended purpose.
Geometry of the scan plane
T
he laser beams emitted cover a sector of a circle, so an object can be detected in an
area of up to 275°.
The sector of a circle covered ranges from –47.5° to 227.5°, where 90° denotes the
axis of the safety laser scanner from the back to the front. When viewing the safety
laser scanner from above, the direction of rotation of the mirror and the deflected light
pulses is counterclockwise, see figure 3.
3 P
RODUCT DESCRIPTION
14
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
