SICK microScan3 - EFI-pro User Manual

7.7 Application
Overview

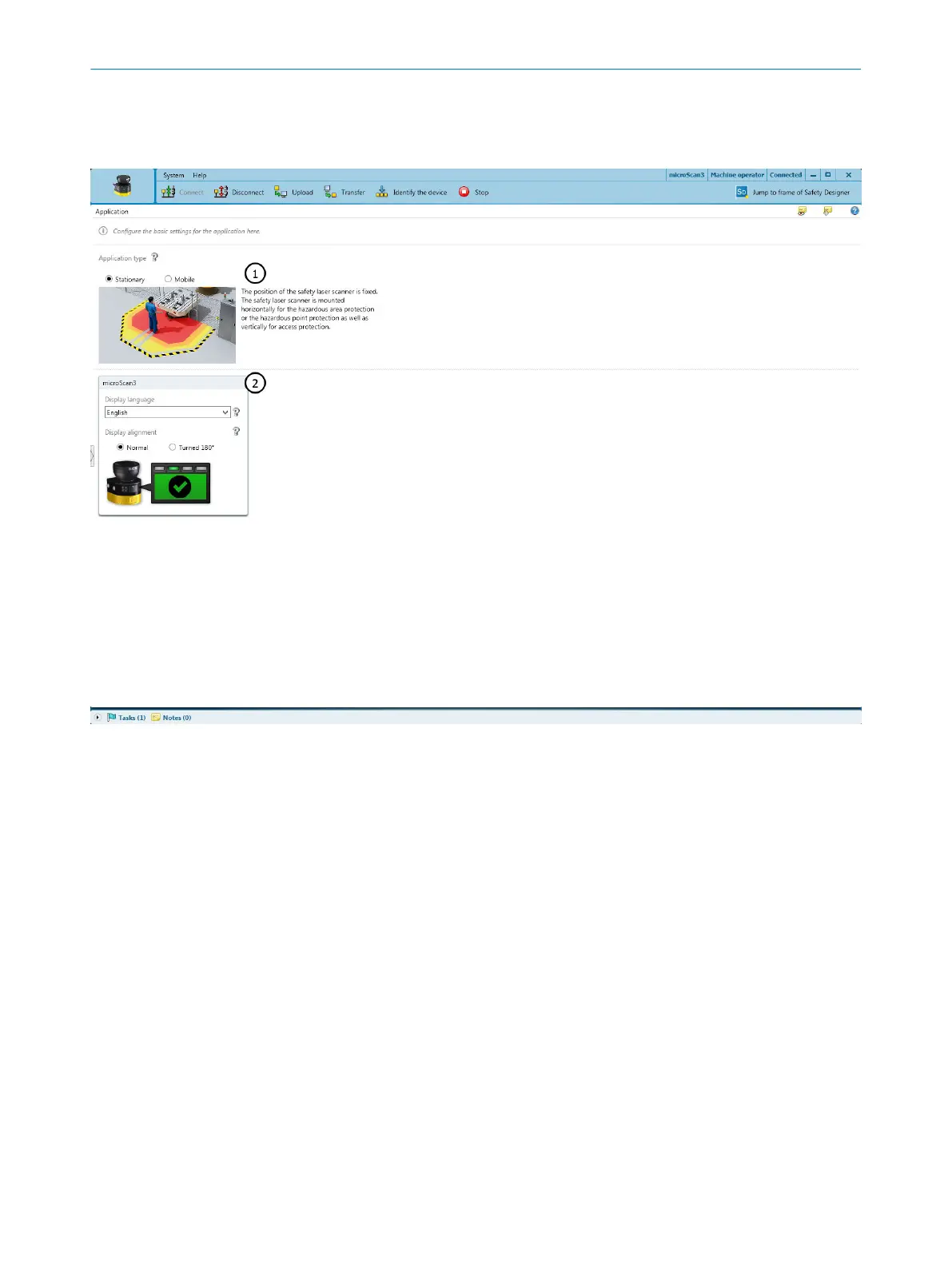

Figure 60: Application
1
Basic settings for the application
2
Settings for the device, which relate to the application
Application type
T
he type of application depends on the application of the safety laser scanner:
b
Select application type.
✓
Mobile
Mobile hazardous area protection is suitable for AGVs (automated guided vehi‐
cles), cranes and forklifts, to protect people when vehicles are moving or docking.
The safety laser scanner monitors the area in the direction of travel and stops the
vehicle as soon as an object is located in the protective field.
✓
S
tationary
The safety laser scanner’s position is fixed. The safety laser scanner is mounted
hor
izontally (for hazardous area protection) or vertically (for hazardous point pro‐
tection and access protection).
Display language
The safety laser scanner’s display outputs notifications and statuses (see "Buttons and
display", page 122). Multiple languages are available for the display.
7 C
ONFIGURATION
86
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
