4.3.7 Hazardous point protection
Overview
T
he safety laser scanner is mounted with a vertical scan plane in a stationary applica‐
tion, for example on a machine where the operator must stay close to the hazardous
point. A fixed barrier with a height of at least 1200 mm is located in front of the haz‐
ardous point. The operator can reach over the barrier and through the scan plane into
the hazardous point. But the operator cannot climb over the barrier. If there is no such
barrier available, access protection may be required.
During hazardous point protection, the safety laser scanner detects a person’s hand or
other part of their body. The protective field is orthogonal to the direction of approach of
the body part. A resolution of 40 mm or finer is required to ensure detection of the
hand during hazardous point protection.
s

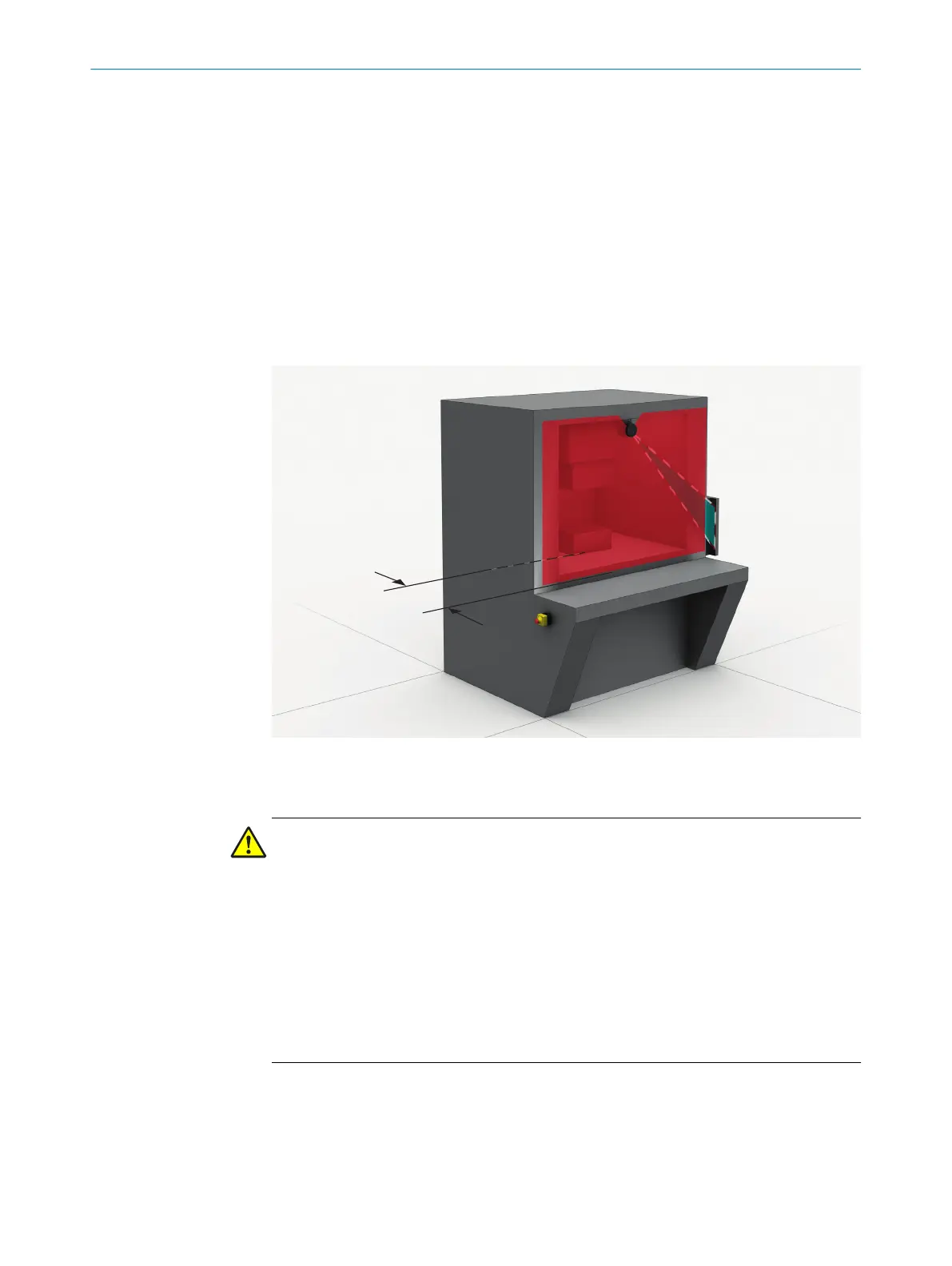

Figure 31: Stationary application in vertical operation for hazardous point protection
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
The safety laser scanner is not suitable for finger detection, because the finest resolu‐
tion is 30 mm.
b
Never use the safety laser scanner for applications in which finger detection has to
be realized.
b
Use the contour of the environment as a reference to protect the protective device
from inadvertent adjustment or tampering (see "Reference contour monitoring",
page 30).
PROJECT PLANNING 4
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
41
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
