16 Accessories
16.1 Brackets
Table 50: Brackets ordering information
Part Part number
Mounting kit 1a 2073851
Mounting kit 1b (with protection for optics cover) 2074242
Mounting kit 2a (alignment bracket, alignment with cross-wise axis and
dept
h axis possible, distance between mounting surface and device:
22.3 mm, only in conjunction with mounting kit 1a or 1b)
2073852
Mounting kit 2b (alignment bracket, alignment with cross-wise axis and
depth axis possible, distance between mounting surface and device:
52.3 mm, only in conjunction with mounting kit 1a or 1b)
2074184
Heavy duty mounting kit 2102289
Dimensional drawings
1
118,3
6
6
3
44,1
30,6
73
Ø 5,5
47,1
2
1
64,1
74,8
4420,1
28,8
15,3

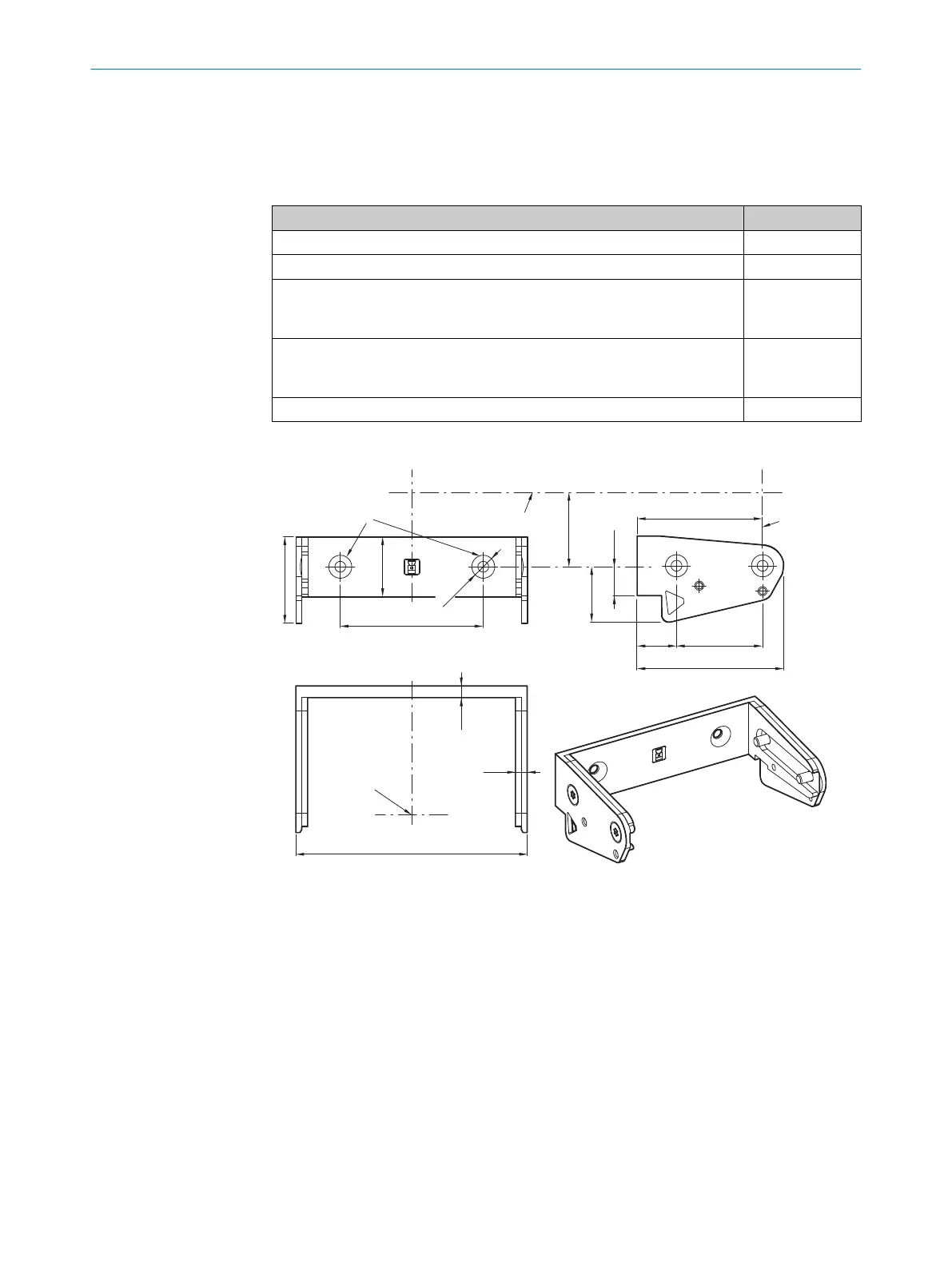

Figure 96: Mounting kit 1a
All dimensions in mm.
1
Mirror rotational axis
2
Scan plane
3
Countersink for M5 countersunk screw
16 A
CCESSORIES
170
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
