Calculating the supplement C
b
If y
ou have sufficient free space in front of your machine, use value 1200 mm as
the supplement C.
b
If you want to keep the minimum distance as low as possible, use the following
formula to calculate C:
C = 1200 mm – (0.4 × H
D
)
where:
°
H
D
= hei
ght of the protective field above the floor in millimeters (mm).
✓
If the result is C ≥ 850 mm, then use the calculated value as supplement C.
✓
If the result is C < 850 mm, then use C = 850 mm (this value corresponds to an
arm's length and is valid as a minimum supplement to protect against reaching
over).
4.3.6.3 Height of the scan plane
Overview
If y
ou choose a resolution of 70 mm for hazardous area protection, it is not possible to
detect a human leg under certain circumstances. This is because a beam does not hit
the leg. Rather, the beams pass by the sides of the ankle (see figure 28, page 38). If
you mount the safety laser scanner at a height of at least 300 mm (height of the scan
plane), the scan plane is at calf height and the leg is detected even at a resolution of
70 mm (see figure 29, page 39).
D
H

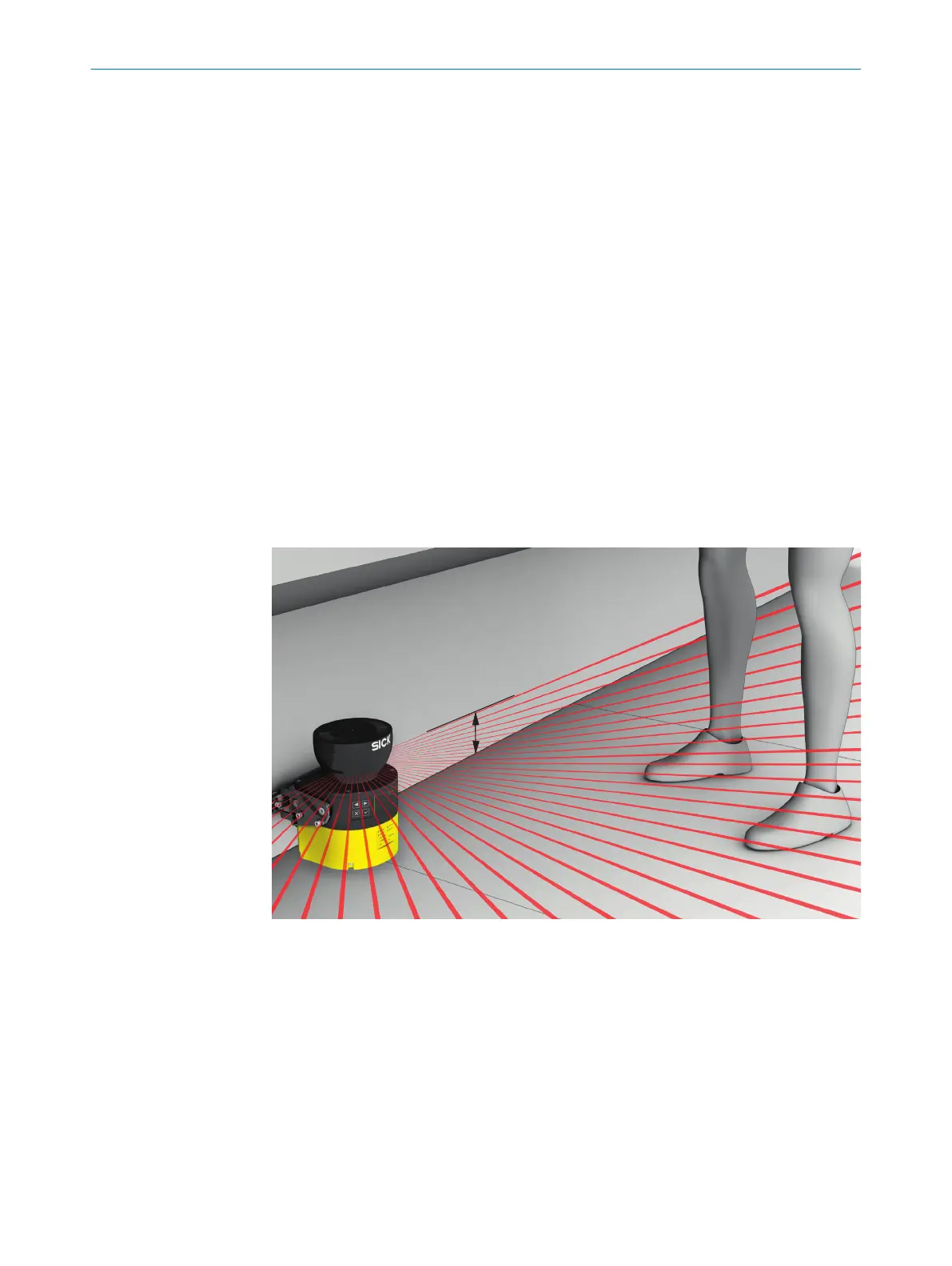

Figure 28: Scan plane at ankle height
4 P
ROJECT PLANNING
38
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
