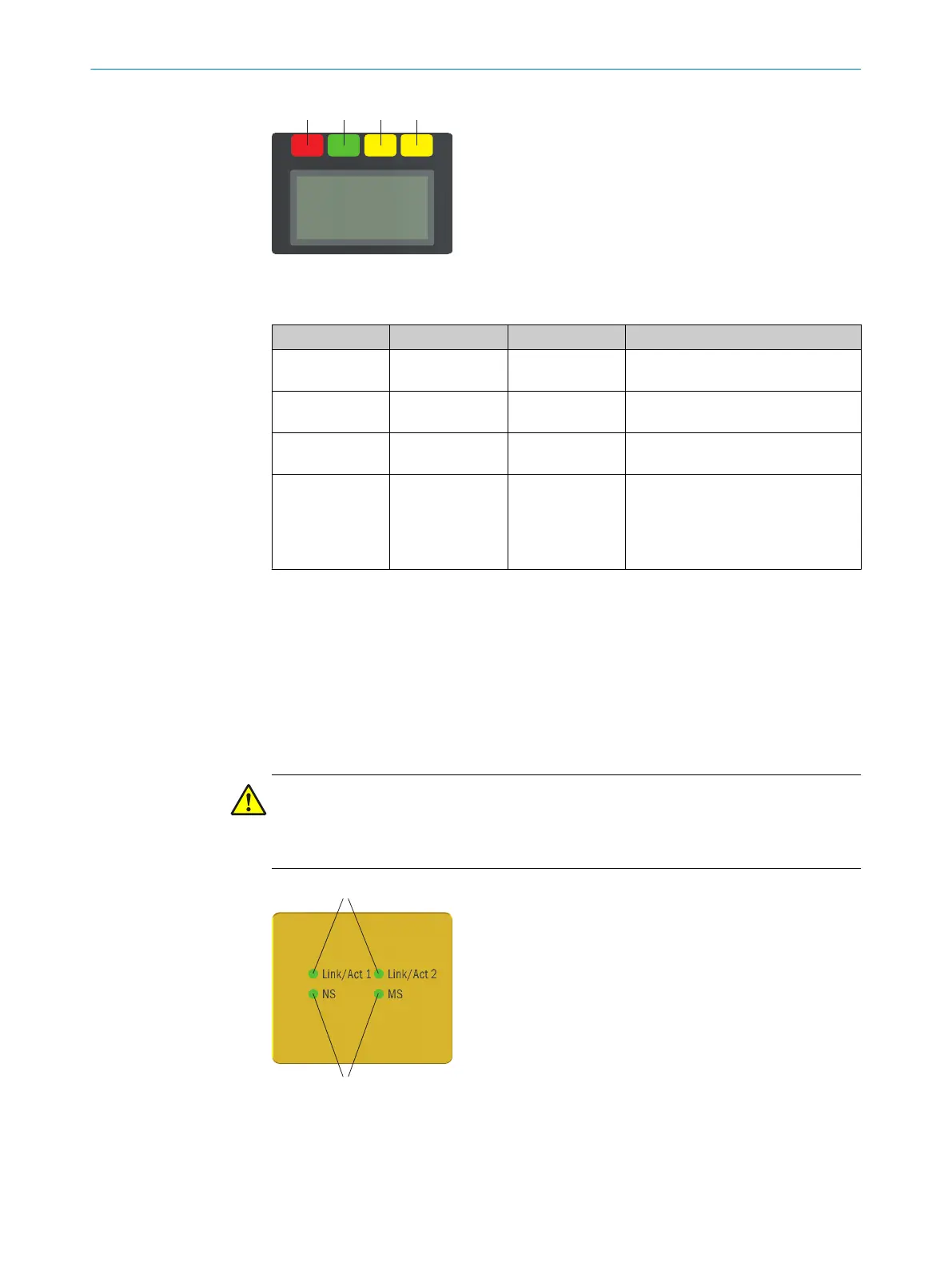

Figure 83: Status LEDs
T
able 19: Status LEDs
Number Function Color Meaning
1
OFF state Red Lights up red when at least one
s
afety output is in the OFF state.
2
ON state Green Lights up green when at least one
s
afety output is in the ON state.
3
Warning field Yellow Shines yellow if at least one warning
field is interrupted.
4
Restart interlock Yellow Setup with reset: Flashes if the
restart interlock has been triggered.
Configuration with automated restart
after a time: Lights up while the con‐
figured time to restart expires.
The OFF state and ON state light emitting diodes can be found in multiple locations on
t
he safety laser scanner. 3 additional sets are arranged in pairs on the base of the
optics cover. So the light emitting diodes can also be seen in many cases when it is not
possible to see the display, e.g. due to the mounting situation or because it is hidden
from the operator’s position.
11.2.2 Network light emitting diodes
The device has different light emitting diodes for every network interface. These net‐
w
ork light emitting diodes are located below the display.
CAUTION
T
he network light emitting diodes are only used for diagnostic purposes and are not
safety-relevant. The safety function of the device is not impaired even if the status indi‐
cators are incorrectly displayed or fail.
Figure 84: Network light emitting diodes
1
Ethernet light emitting diodes
2
EFI-pro light emitting diodes
