11.4.3 Message history
Overview

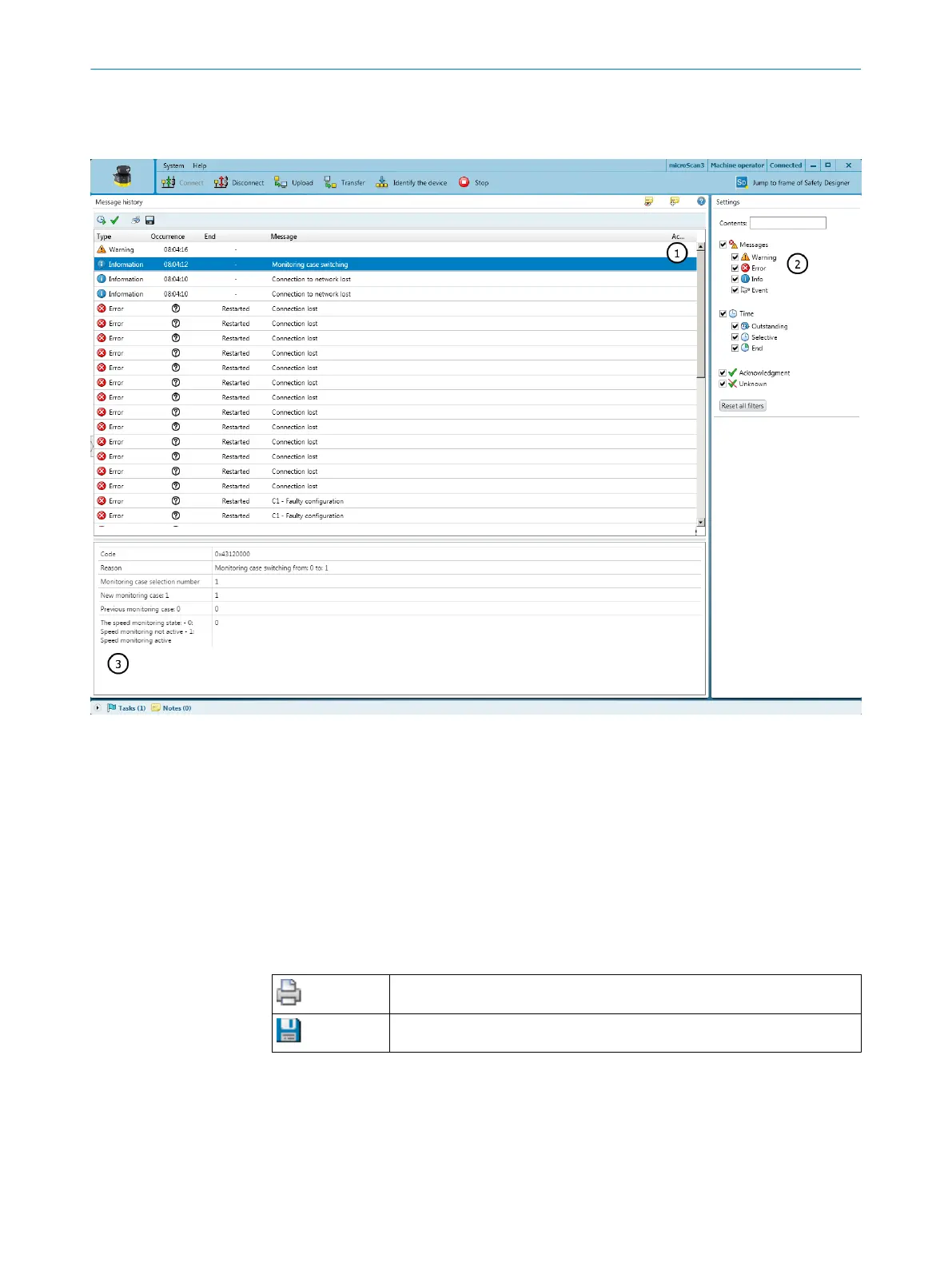

Figure 90: Message history
1
Message history
2
Display filter
3
Details about the selected message
All events, such as faults, warnings and information are stored in the message history.
B
y right-clicking on the table header, you can select the columns displayed in the mes‐
sage history.
Safety Designer shows details about the events in the bottom part of the window, ways
to solve them are also shown.
Table 25: Print message history or save as a PDF
Print message history
Save message history as a PDF
11.4.4 Inputs and outputs
Safety Designer displays information on the supported assemblies.
T
he arrows to the device symbolize the output assemblies (from the view of the control).
The arrows away from the device symbolize the input assemblies (from the view of the
control).
11 T
ROUBLESHOOTING
148
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
