350 mm into account in this direction.
4
)
Supplement Z
R
must be upheld at least at a
width of 3 × d (d = set object resolution) around the laser beam which hits the surface
vertically.
Supplement C to protect against reaching over
U
nder certain circumstances, a person can reach the hazardous area by reaching over,
before the protective device stops the dangerous state. Supplement C prevents this.
D
H ≈ 0 mm
C = 1200 mm

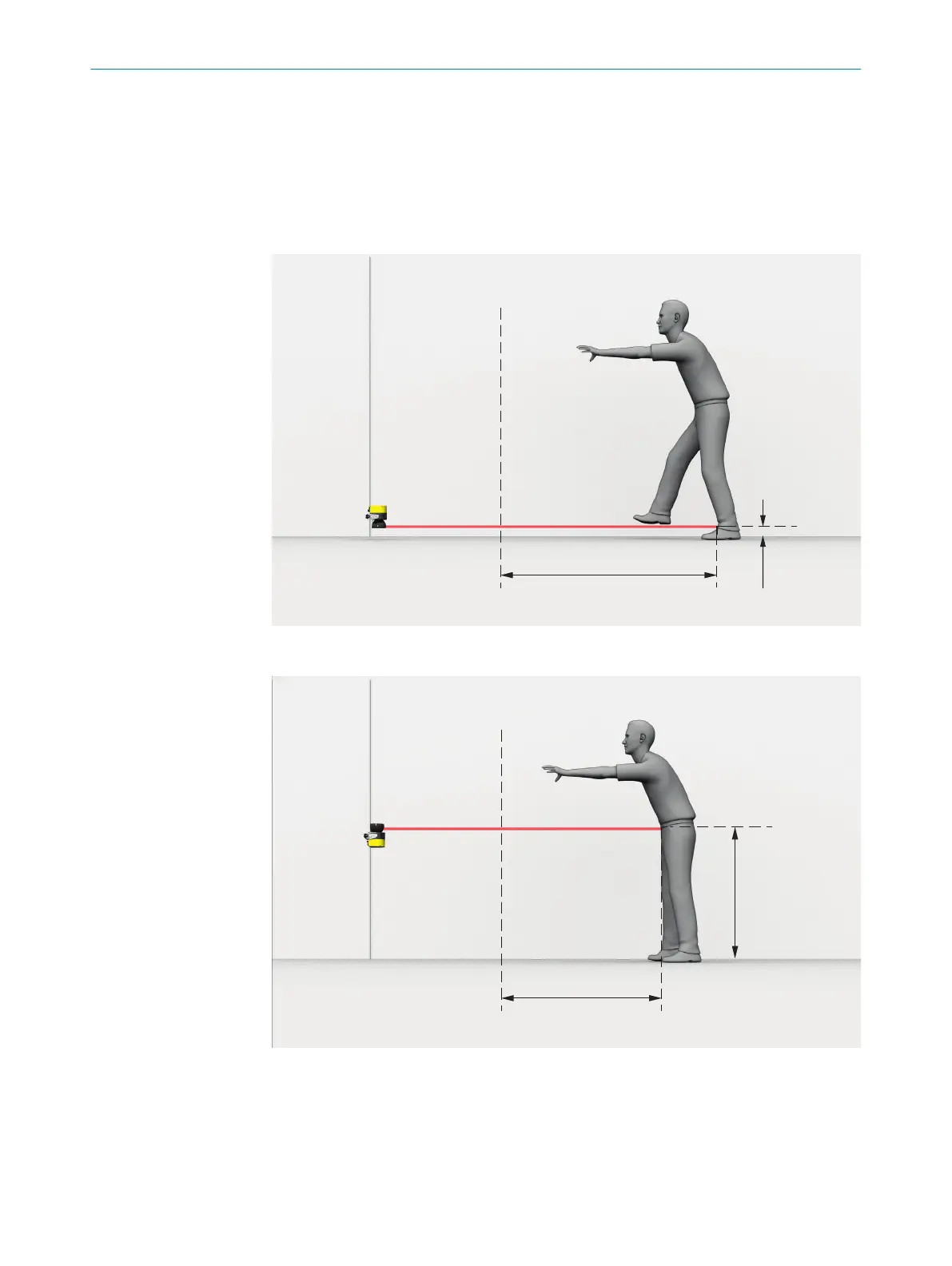

Figure 26: Protection against reaching over when mounted low (dimensions in mm)
D
H = 875 mm
C = 850 mm
Figure 27: Protection against reaching over when mounted high (dimensions in mm)
T
he necessary supplement to the minimum distance depends on the height of the pro‐
tective field’s scan plane. The supplement is larger if the safety laser scanner is affixed
low-down than if it is affixed high-up.
4)
T
he protective field range depends on the set scan cycle time and resolution.
PROJECT PLANNING 4
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
37
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
