Boards for HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

3-368 HiPath 3000/5000 V9, Service documentation

boards.fm

Options

Slot for EXM

Connection of EXMR

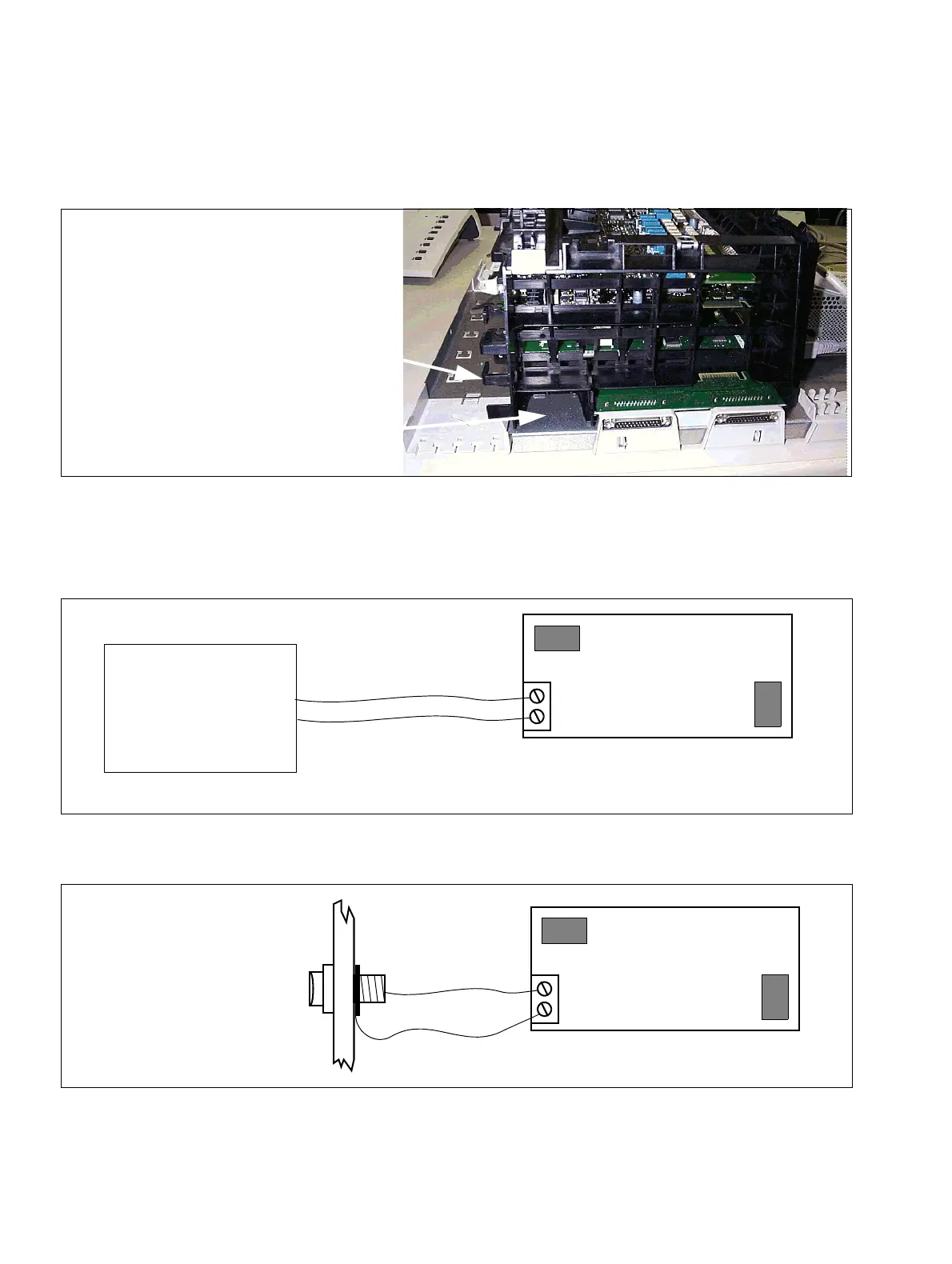

Figure 3-132 EXM Slot for HiPath 3550 and HiPath 3350 Wall Housing

Figure 3-133 EXMR connection to HiPath 3550 and HiPath 3350

Figure 3-134 EXMR Connection to HiPath 3500 and HiPath 3300

Cable duct

Slot for

EXM module

Direct

connection of the ex-

ternal music source

Note: A cable binder has been provided in the cable duct for

suitable strain relief of the connecting cable.

EXMR

(component side)

Front panel

of the system

Cinch jack

Cable C39195-Z7001-C79

EXMR

(component side)
