start_h5.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

6-23

Nur für den internen Gebrauch Startup and Administration HiPath 5000

Starting HiPath 5000

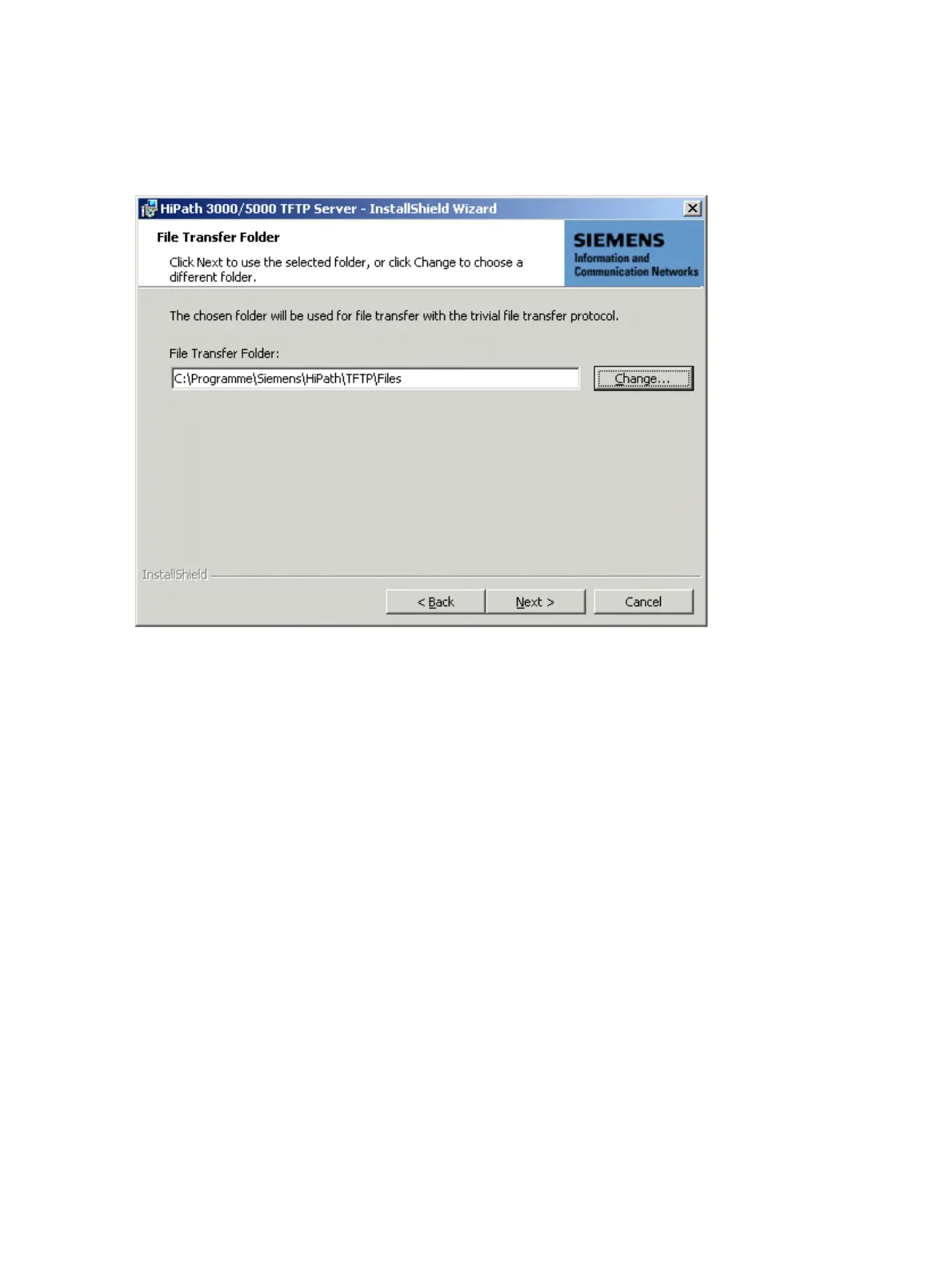

10. The File Transfer Folder appears.

Select the folder where you want to install the files.

Confirm the default folder c:\program files\siemens\hipath\tftp\files\ with

Next or click Change to select a different folder.
