Function Manual

01/2017

119

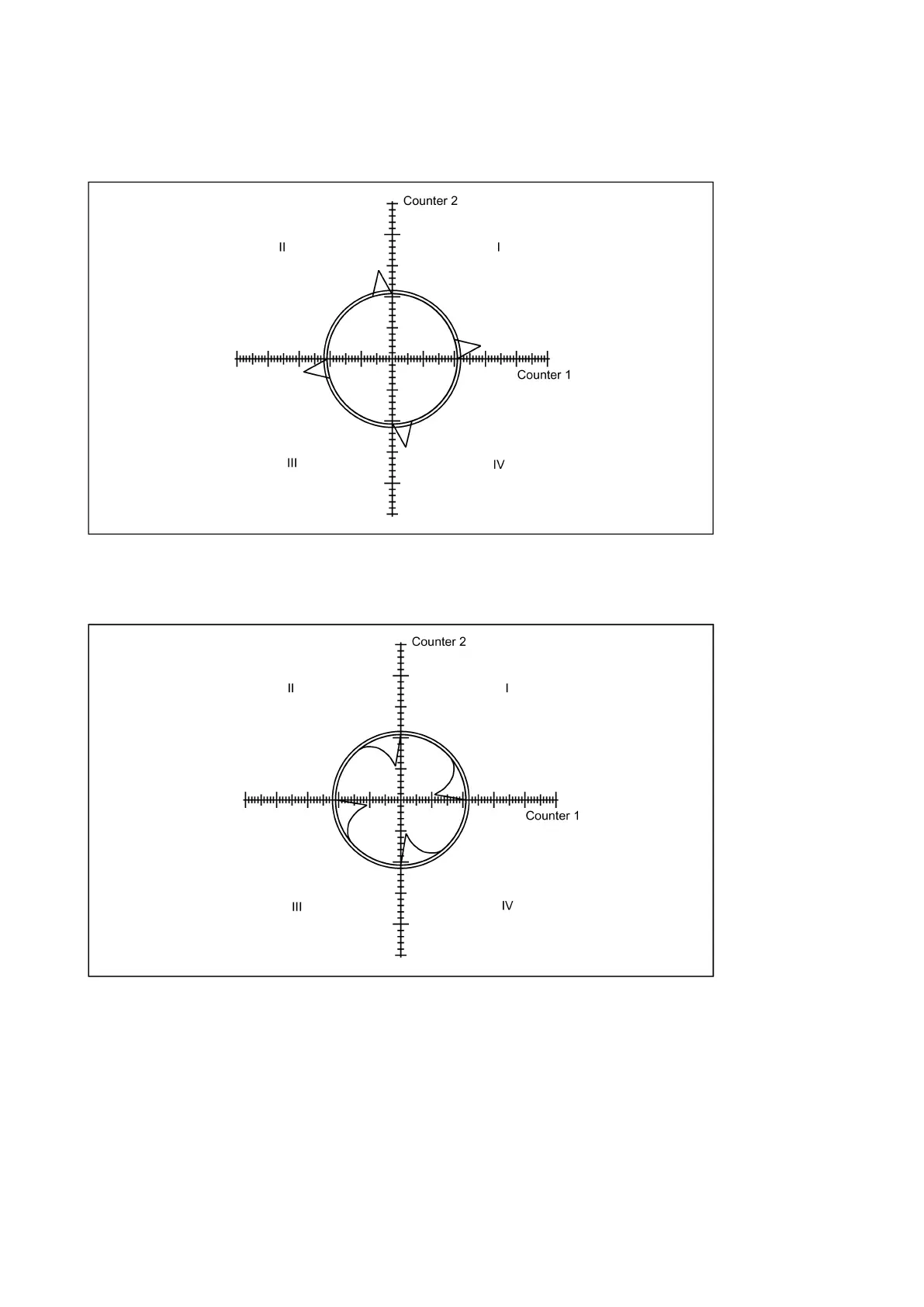

Compensation value too small

Too small a compensation value (MD32520) in the circularity test is indicated by insufficient compensation of the contour

deviations at the quadrant transitions.

Compensation value too large

Too large a compensation value (MD32520) in the circularity test is indicated by overcompensation of the contour deviations

at the quadrant transitions.
