Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
147

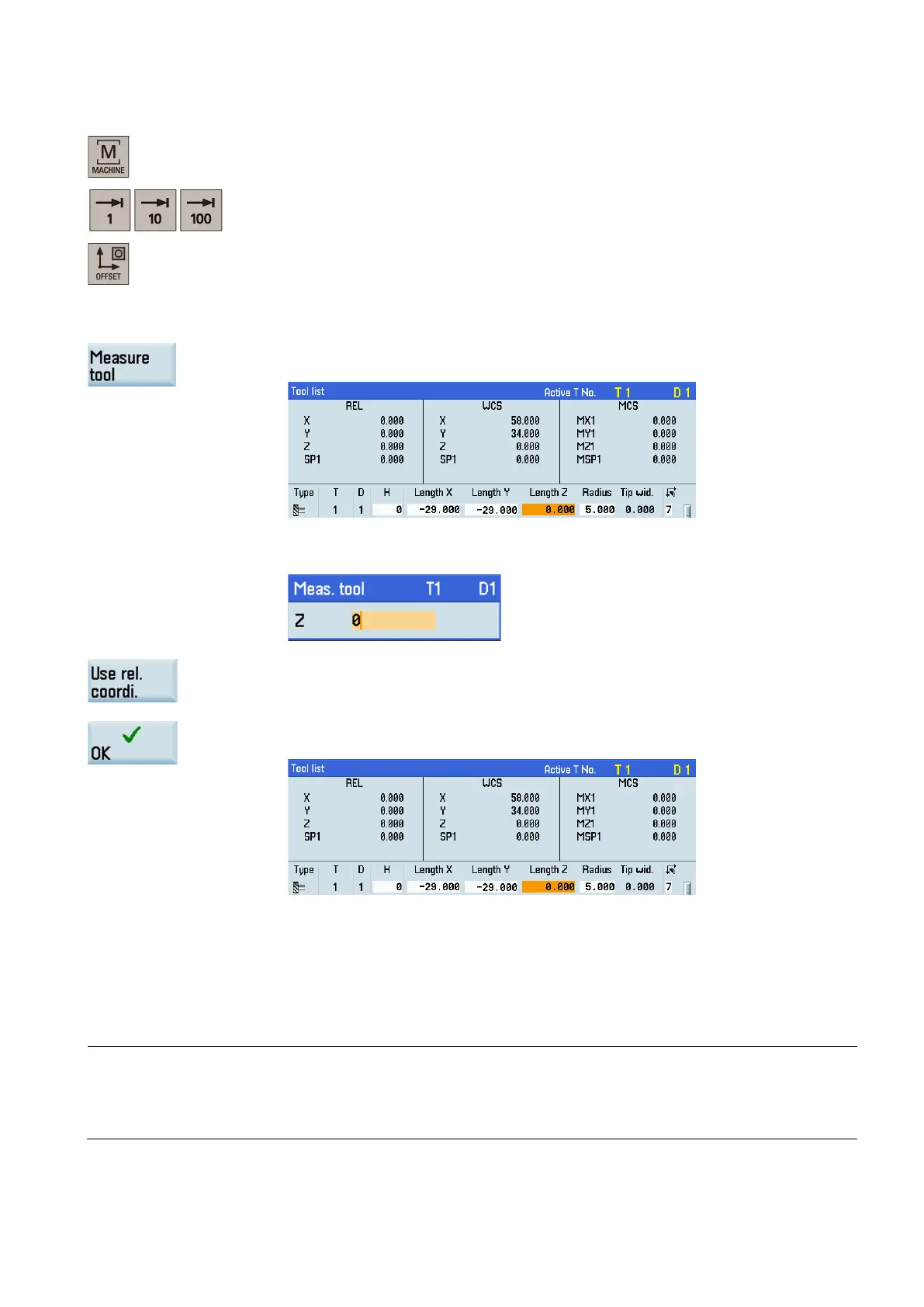

Measuring the Z axis of the tool
1.
Select the machining operating area.
2.
Select a suitable override feedrate and use the handwheel to move the tool to scratch the
required workpiece edge (or the edge of
the setting block, if it is used) along the Z axis.
3.
Select the offset operating area.
4.
Press the alphabetic key <Z> or proceed through the following method to open the window
for measuring the tool in the Z direction:
Move the cursor to the input field for Length Z with the cursor keys and then press this sof
t-
key.
5.
Enter the distance between the tool
tip and the workpiece edge in the input field, for exam-
ple, "0". (This value is the thickness of a setting block if it is used.)
If you desire to use the relative coordinate, press this softkey.
6.
Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry input field of the currently active tool automatically.
7.
Repeat the above steps to finish measuring all the tools.
15
EMERGENCY OFF (N2)
15.1
Brief description
Note
It is the duty of the machine manufacturer to observe national and international standards (see the notes on standards in the
following paragraph). The control system supports the machine m
anufacturer in the implementation of the EMERGENCY
STOP function in accordance with the specifications in this Description of Functions. The responsibility for the EMERGENCY
STOP function (its triggering, execution and acknowledgment) rests exclusively wit
h the machine manufacturer.
