Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
311
23.14

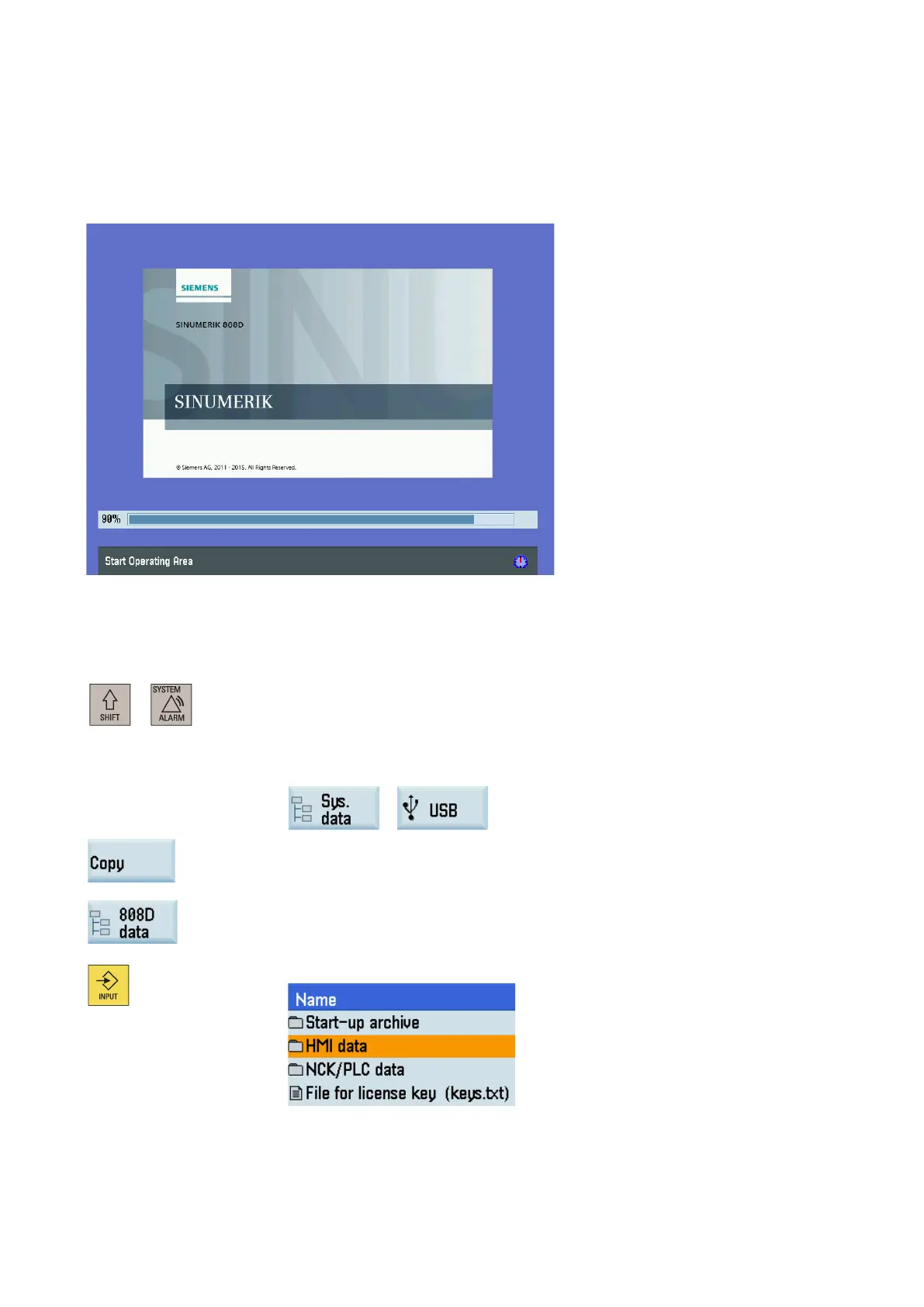

Using the machine manufacturer's startup screen and machine logo
Using the machine manufacturer startup screen
The control system uses the Siemens startup screen as follows by default. If necessary, you can use your own startup
screen.
Proceed as follows to use your own startup screen:
1.
Prepare the image for the startup screen in BMP format. To achieve the best di
splay effect,
the recom
mended image size is 750*450 pixels for PPU161.3 and 600*360 pixels for
PPU160.2/PPU141.2. Name the image "startup.bmp" and save it on a USB memory stick.
2.
Insert the USB stick into the USB interface on the front panel of the PPU.
+
3.
Select the system data operating area.
4.
Locate the startup screen file under the USB
directory through the following softkey opera-
tions:
→
5.
Select the file with cursor keys and press this sof
tkey to copy the file.
6.
Press this
softkey to open the window of system data.
7.
Select the HMI data folder and press this key to open it.
