Siemens SINUMERIK 808D Function Manual

Function Manual
212 01/2017

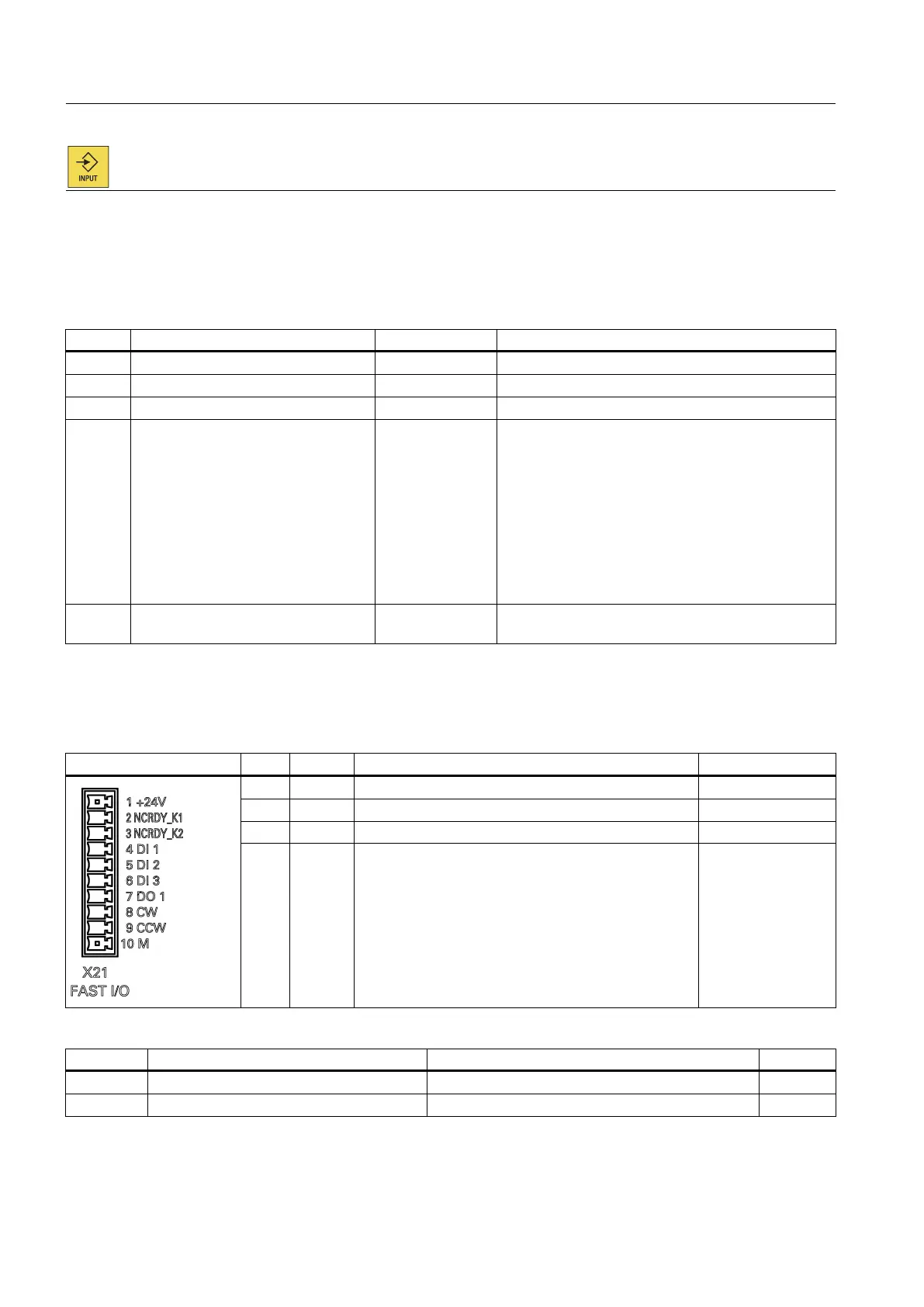

Note
All of the numbers that have been entered must be confirmed with the following hardkey.
23.5
Prog_Event function
With the Prog_Event function, two subroutine programs called "CYCPE1MA.SPF" and "CYCPE_MA.SPF" are triggered to be
executed at certain states such as the end of a program, NC reset, etc.. You must first create at least one of the
CYCPE1MA.SPF and CYCPE_MA.SPF files, and then save the file(s) under the cycle directory (N: \CMA).
Relevant parameters:
No.
Name
Value
Descriptions
11450
SEARCH_RUN_MODE
7H
-
20106
PROG_EVENT_IGN_SINGLEBLOCK
1FH
-
20107
PROG_EVENT_IGN_INHIBIT
CH
-
20108 PROG_EVENT_MASK Actual value Triggering modes for N: \CMA\CYCPE1MA.SPF and
N: \CMA\CYCPEMA.SPF:
• Bit 0: activating the program event during the NC
commissioning
• Bit
1: activating the program event at the end of a
NC program
• Bit 2: activating the program event using the
RESET key
• Bit 3: activating the program event after powering
up the NC
20109 PROG_EVENT_MASK_PROPERTIE
S
1H -
23.6
Fast I/O
Hardware description
The FAST I/O interface (X21) provides 3 digital inputs and 1 digital output:
Illustration
Pin
Signal
Description
Variable
4
DI1
Fast input 1 with address DB2900.DBX0.0
$A_IN[1]
5
DI2
Fast input 2 with address DB2900.DBX0.1
$A_IN[2]
6
DI3
Fast input 3 with address DB2900.DBX0.2
$A_IN[3]
7 DO1 Fast output 1 with address DB2900.DBX4.0 $A_OUT[1]
Relevant parameters
MD No.
Name
Meaning
Value
10366
HW_ASSIGN_DIG_FASTIN[0]
Hardware assignment for the fast inputs
10101
10368
HW_ASSIGN_DIG_FASTOUT[0]
Hardware assignment for the fast outputs
10101
