Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
327
→
→
6.

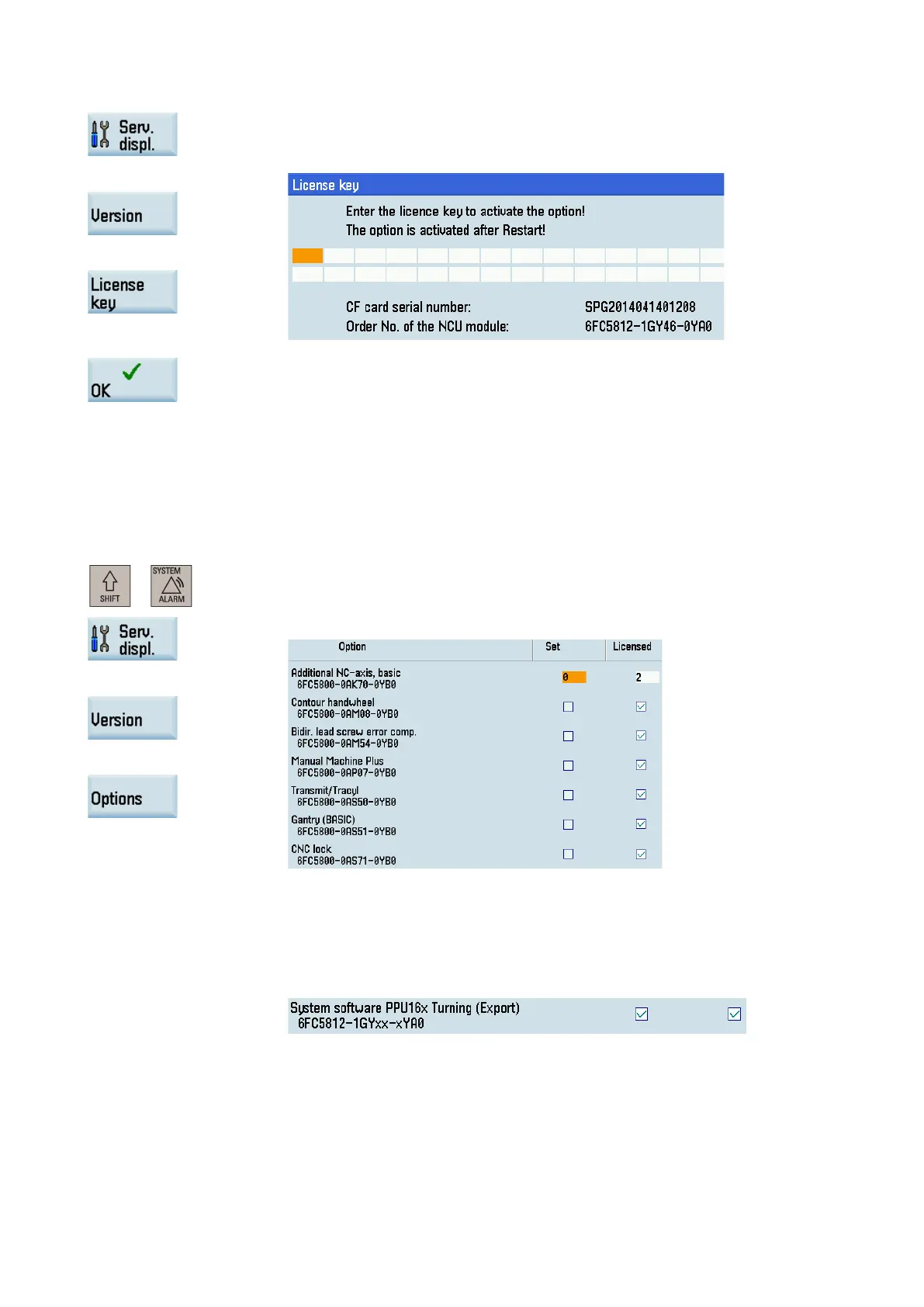

After completing the assignment process, press these three softkeys in succe
ssion.
Then enter the license key displayed on the Web License Manager into the license key
di
alog of the HMI user interface.
7.
Confirm your input for the new license key with this softkey.
8.
Activate the desired optional function (see Secti
on "Activating the optional functions
(Page 327)").
24.2
Activating the optional functions
In this section, it's supposed that all optional functions are activated on a turning variant. The same activation process
applies to a milling variant
Operating sequence
+
1.
Select the system data operating area.
→
→
2.
Press these three softkeys in succession. Then the following windo
w is displayed.
If you have licensed
one or two additional axes, you can find a figure of "1" or "2" in the
column of licensing status. For other licensed options, a "☑" symbol displays in this column.
Note
: Before activating the Manual Machine Plus function, make sure that MD20050 is set
to default.
Note:
The last option displayed in this window indicates the variant information and the
licensing status of your control system, for example:
In case of any problems with respect to the licensing status of your control system, contact
Siemens service personnel.
