Siemens SINUMERIK 808D Function Manual

Function Manual
01/2017
307

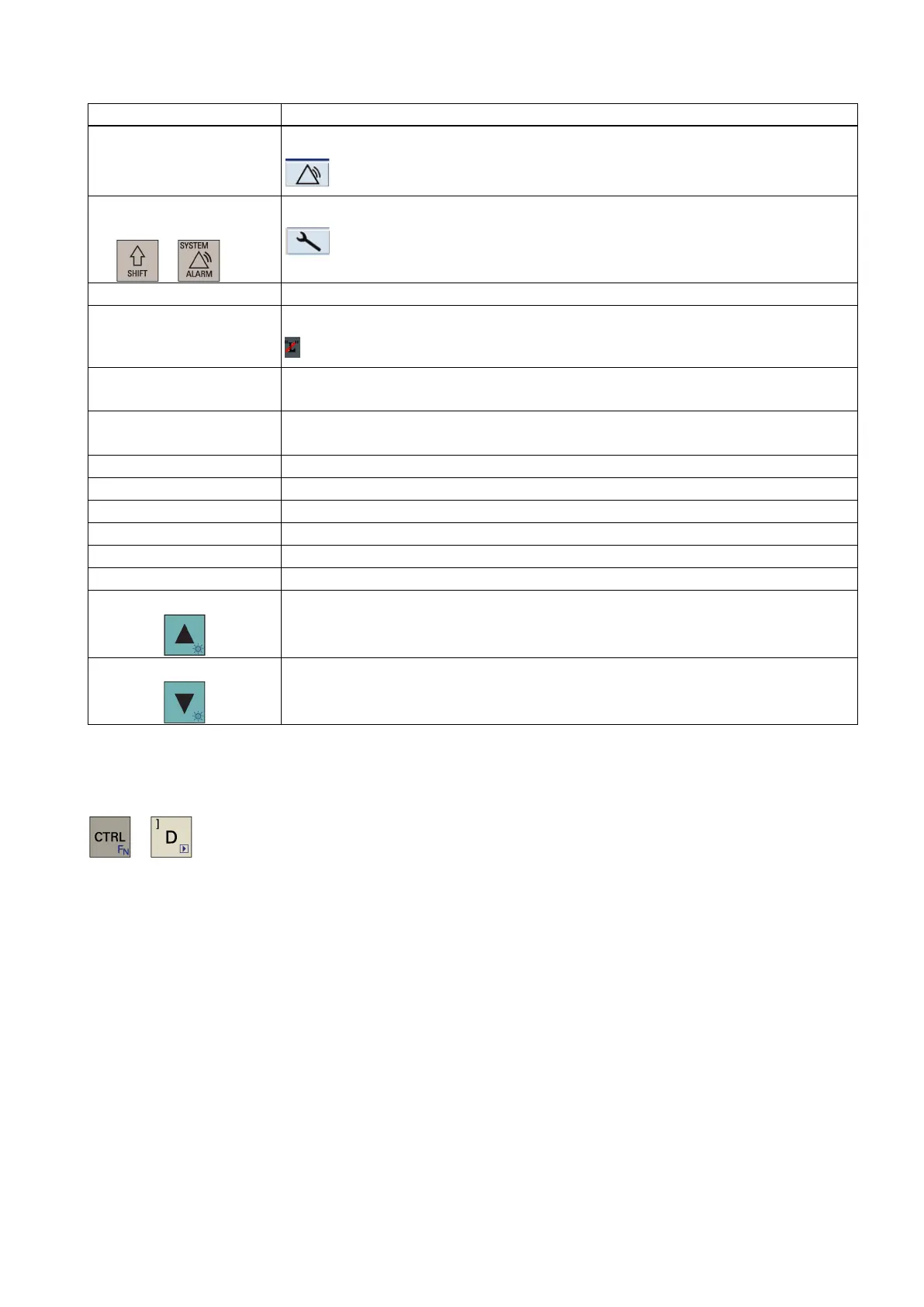

Key combination
Description
<ALT> + <M> Opens the alarm operating area:
• <ALT> + <N>
•
+
Opens the system data operating area:
<ALT> + <H>
Calls the online help system
<ALT> + <L> Enables input of lowercase letters, with the following icon displayed in the tip area:
<ALT> + <S>
Applicable only when the user interface language is Chinese
Calls the input method editor for entering Chinese characters
<=> Calls the pocket calculator.
Note that this function is not applicable in "MDA" mode.
<CTRL> + <B>
Selects text in program blocks
<CTRL> + <C>
Copies the selected text
<CTRL> + <D>
Shows pre-defined slides on the screen
<CTRL> + <P>
Captures screens
<CTRL> + <R>
Restarts the HMI
<CTRL> + <S> Exports start-up archives and action logs to a USB stick
<CTRL> +
Increases the screen backlight brightness
<CTRL> +
Decreases the screen backlight brightness
23.12
Playing a slide show
The control system has the function of playing a slide show. By default, the slide show of Siemens product information is
provided.
+
You can press this key combination on the PPU to play a slide show and press the key combination
again to exit the slide show.
Playing the machine manufacturer's slide show
You can create your own slides and play them on the control system. The control system supports the slide show of images
in ".png" or ".bmp" format. To achieve the best display effect, the recommended image size is 800*600 pixels for PPU161.3
and 640*480 pixels for PPU160.2/PPU141.2.
Proceed through the following steps to playing your own slide show:
1.
Prepare the images for the slide show and name each image according to the following
syntax:
•
, or
•
Here "%u
" stands for the number sequence starting with "1". For example, slide1.png,
slide2.png, slide3.png ...
