Display function
Displaying the part timer
The part timer is available for the control system to count the following time periods:
Time
Corresponding system variable
Description
Run time
$AC_OPERATING_TIME
Total time for running programs in "AUTO" mode
Cycle time
$AC_CYCLE_TIME
Run time of a selected program
Cutting time $AC_CUTTING_TIME Cutting time (G01, G02, G03) of a selected program
Setup time
1)
$AN_SETUP_TIME Time elapsed since the last power-on with default val-
ues
Power on time
1)
$AN_POWERON_TIME
Time elapsed since the last normal power-on
Remain time
2)
-
Remaining time for running the current program.
1)
The remaining time has no corresponding system variable, and can be counted only after a cycle of a part program has
successfully run.
2)
Both the setup time and the power on time are counted automatically after the controller has been powered on.
By default, the run time, the cycle time, the setup time and the power on time are displayed. The cutting time can only be
counted after being activated with MD27860:
No.
Name
Value
Descriptions
27860 PROCESSTIMER_MODE Actual value Activation of counting for following program runtime:
• Run time
• Cycle time
•
Cutting time

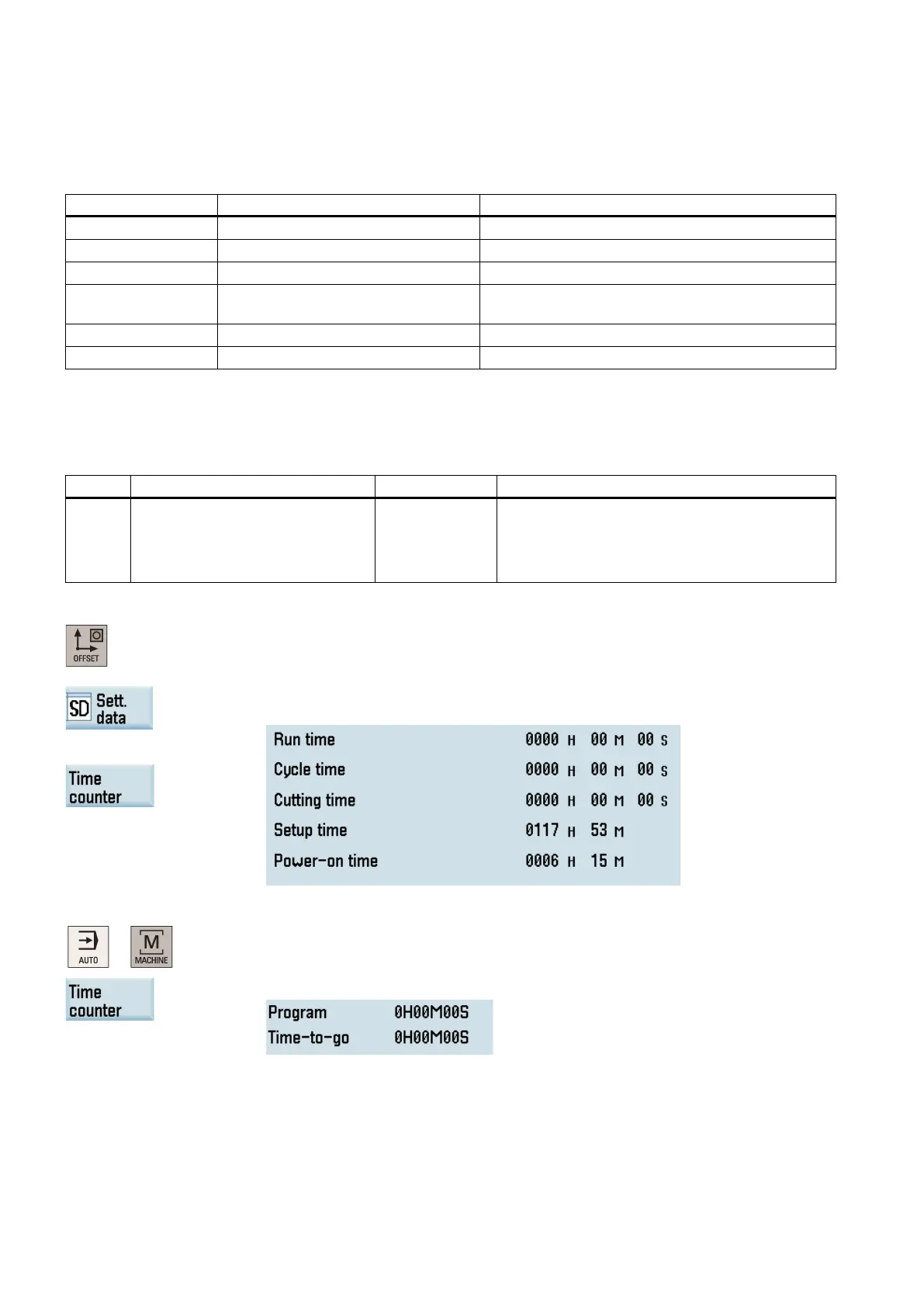

The procedure for calling the time counter is as follows:
1.
Select the offset ope
rating area.
→
2.
Press these two softkeys in succession. Then the tim
e counter can be displayed counting
following:
Or
→
1.
Enter "AUTO" operating mode and select the machining op
erating area.
2.
After you press thi
s softkey, the time counter can also be displayed counting the following:
