Function Manual
56 01/2017
MD34050 REFP_SEARCH_MARKER_REVERSE = e.g. FALSE
MD34060 REFP_MAX_MARKER_DIST = difference btw. cam edge and 0 mark
MD34070 REFP_VELO_POS =
MD34080 REFP_MOVE_DIST = 0
MD34090 REFP_MOVE_DIST_CORR = 0
MD34092 REFP_CAM_SHIFT = 0
MD34100 REFP_SET_POS = 0
MD34200 ENC_REFP_MODE = 1
Setting of NCK PLC interface
Introduction
An automatic synchronization process during axis referencing must first be disabled in order to prevent any damage to
grouping axes that are misaligned.

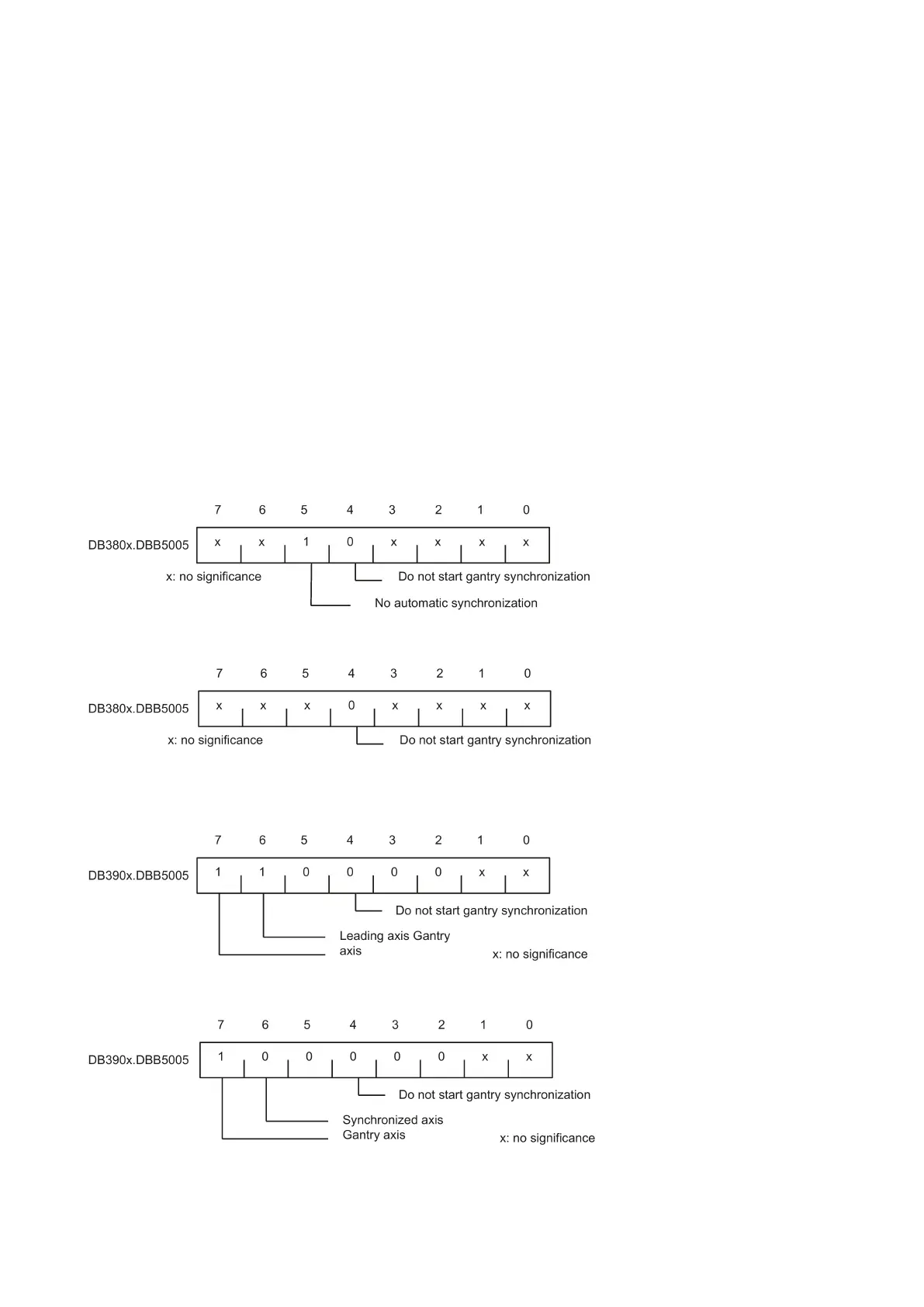

Disabling of automatic synchronization
The PLC user program sets the following IS:
● For the leading axis (axis 1):
NCK-PLC interface DB380x.DBB5005 relative to leading axis:
● For the synchronized axis (axis 3):
NCK-PLC interface DB380x.DBB5005 relative to synchronized axis:
The NCK sets the following IS as a confirmation:
● For the leading axis (axis 1):
NCK-PLC interface DB390x.DBB5005 relative to leading axis:
● For the synchronized axis (axis 3):
NCK-PLC interface DB390x.DBB5005 relative to synchronized axis:
