Siemens SINUMERIK 808D Function Manual

Function Manual
128 01/2017
● Vector of base tool
MD24920 TRANSMIT_BASE_TOOL_1[0]=0
MD24920 TRANSMIT_BASE_TOOL_1[1]=0
MD24920 TRANSMIT_BASE_TOOL_1[2]=0
Setting data for the special treatment of the tool offset (only when required):
● Change of tool length component for change of plane
SD42940 TOOL_LENGTH_CONST=18
● Assignment of the tool length offset independent of tool type
SD42950 TOOL_LENGTH_TYPE=2
Settings for second spindle (milling spindle of the lathe):
● MD30300 IS_ROT_AX[AX4]=1
● MD30310 ROT_IS_MODULO[AX4]=1
● MD30320 DISPLAY_IS_MODULO[AX4]=1
● MD35000 SPIND_ASSIGN_TO_MACHAX[AX4]=2
● SD43300 ASSIGN_FEED_PER_REV_SOURCE[AX4]=0
Note
A special handling of milling tools on lathes with respect to length compensation i
s possible.
12.3
TRACYL
12.3.1
Overview

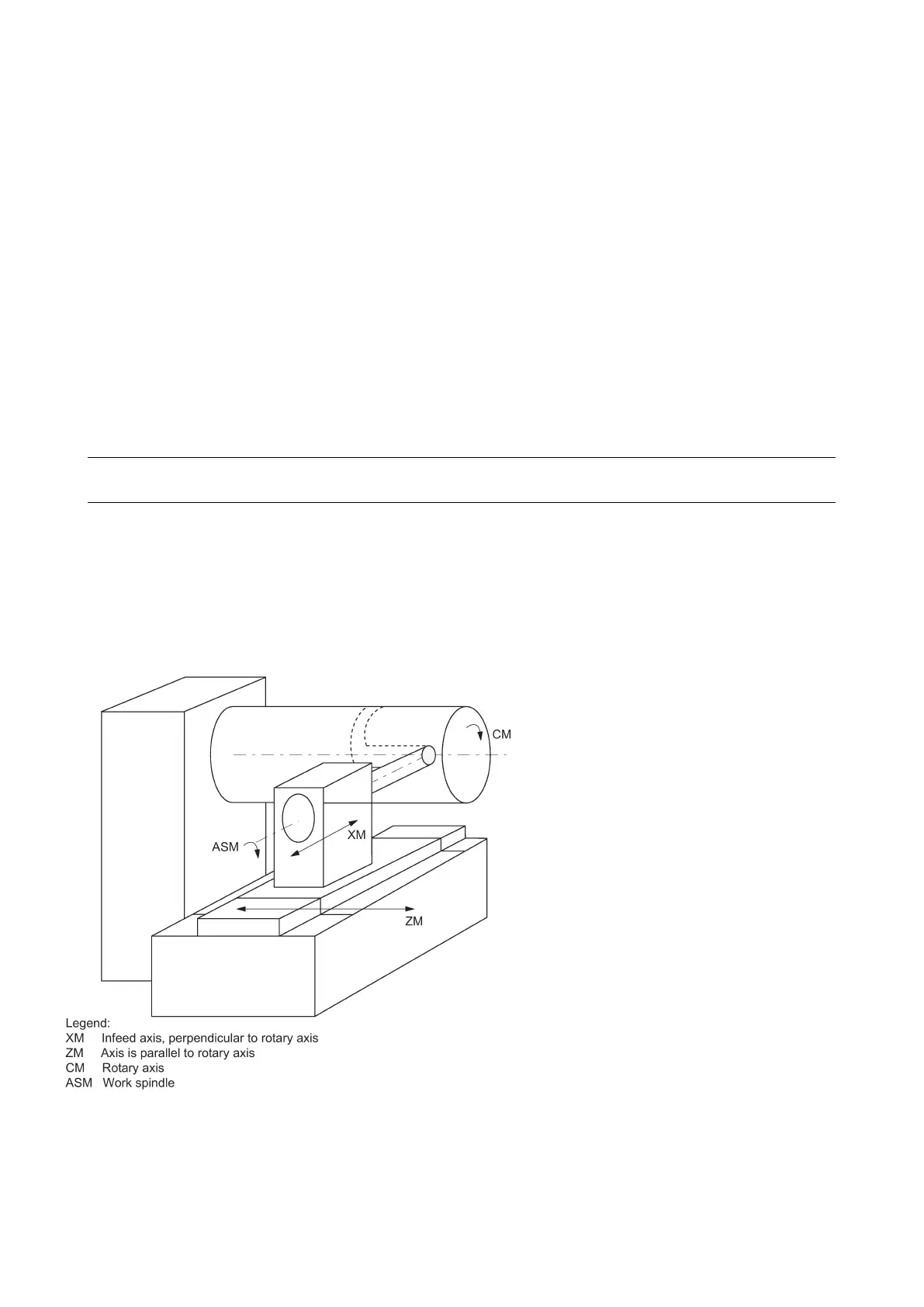

Standard lathe (without Y machine axis)
Machining grooves on a cylinder surface with X-C-Z kinematics:
