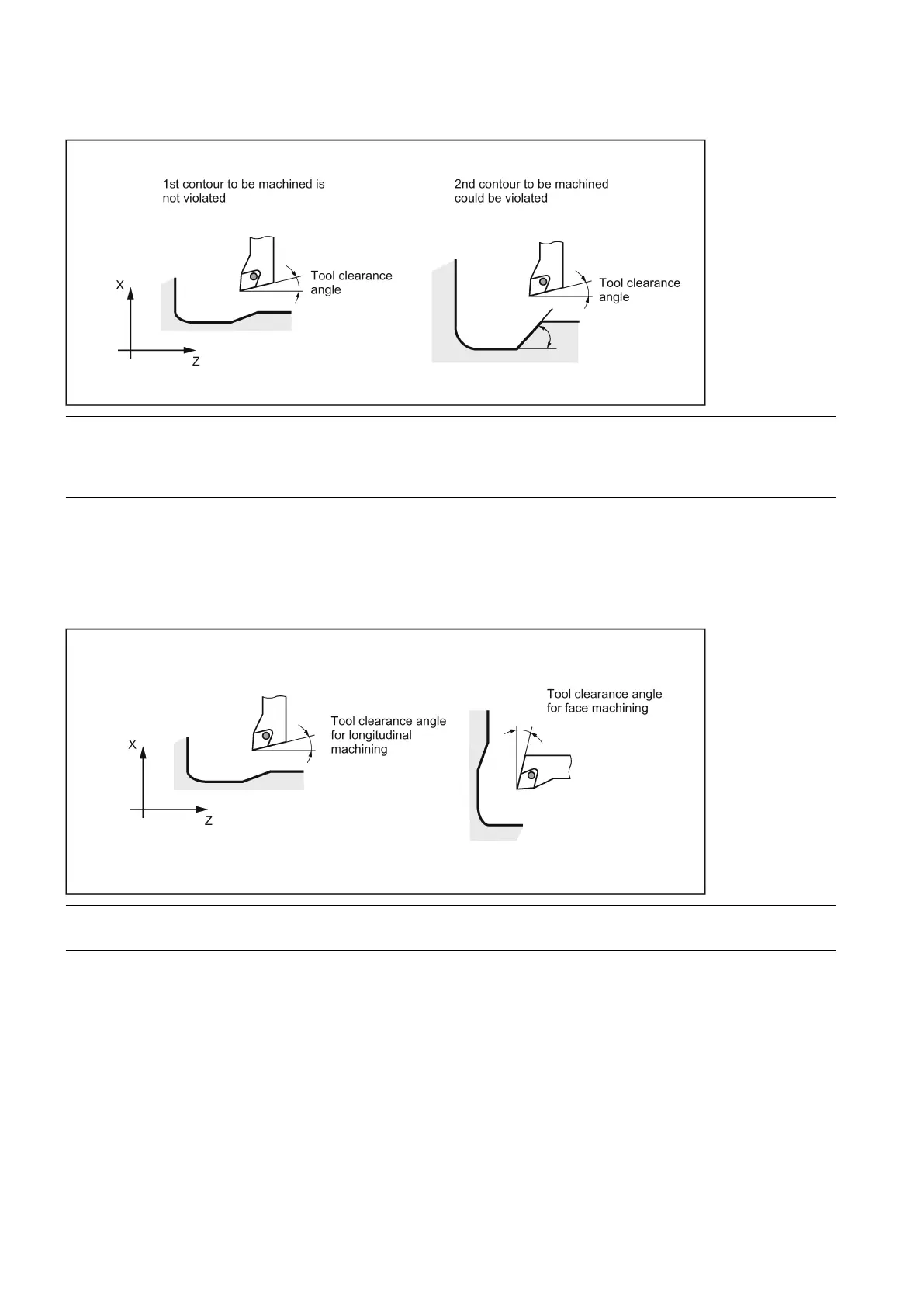

Tool clearance angle of the turning tool during relief cutting:
Note
To activate this tool parameter on the HMI, set bit 18 of MD19730[0] to 1 (MD19730[0] = 40000H).
Currently, the clearance angle function
can work only when the optional Manual Machine Plus function is licensed and
Machining type, longitudinal or transverse
The tool clearance angle is entered in different ways according to the type of machining (longitudinal or face). If a tool is to
be used for both longitudinal and face machining, two cutting edges must be entered for different tool clearance angles.
Tool clearance angle for longitudinal and face machining:
Note
If a tool clearance angle of zero is entered, relief cutting is not monitored in the turning cycles.
