Siemens SINUMERIK 808D Function Manual

Function Manual
270 01/2017
Tag identifier
Meaning
The tag is used to display an image in the specified position. The BMP and PNG image
formats are supported.
Syntax:
<IMG xpos = "<X position>" ypos = "<Y position>" name = "<name>" />
<IMG … xrot="angle X axis" yrot=" ang
le Y axis " zrot=" angle Z axis
" />
Attributes:
•
xpos
X position of the top left corner
•
ypos
Y position of the top left corner
•
name
complete path name
•
transparent
Transparent color of the bitmap (see Section "Color coding (Page 249)"):
Continued
Example
:

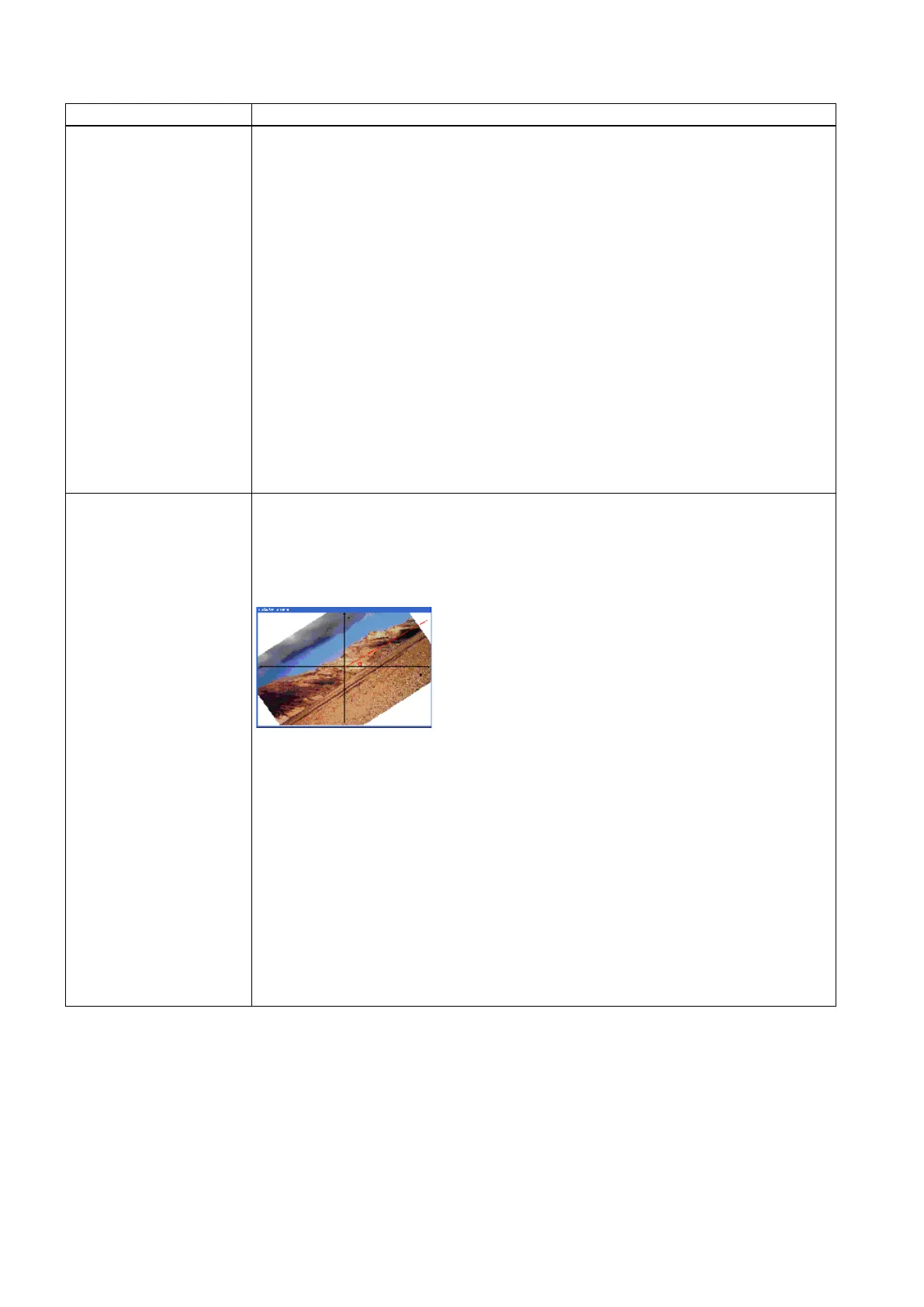

The image is rotated through 34 degrees around the Z axis:
<img xpos = "5" ypos = "23" name = "f:/appl/pic3.bmp" height="355"
width="550" zrot="34" color_bk="#ffffff" >
</img>
Optional:
If the image display is to differ from the original size, the dimensions can be defined using
the attributes
width
and
height
.
•
width
Width in pixels
•
height
Height in pixels
Examples:
<IMG xpos = "20" ypos = "40" name = "f:/appl/test.bmp" />
<IMG xpos = "5" ypos = "23" name = "f:/appl/test.bmp" height =
"355" width = "550"/>
