P3: Basic PLC Program for SINUMERIK 840D sl
13.13 Block descriptions
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1007

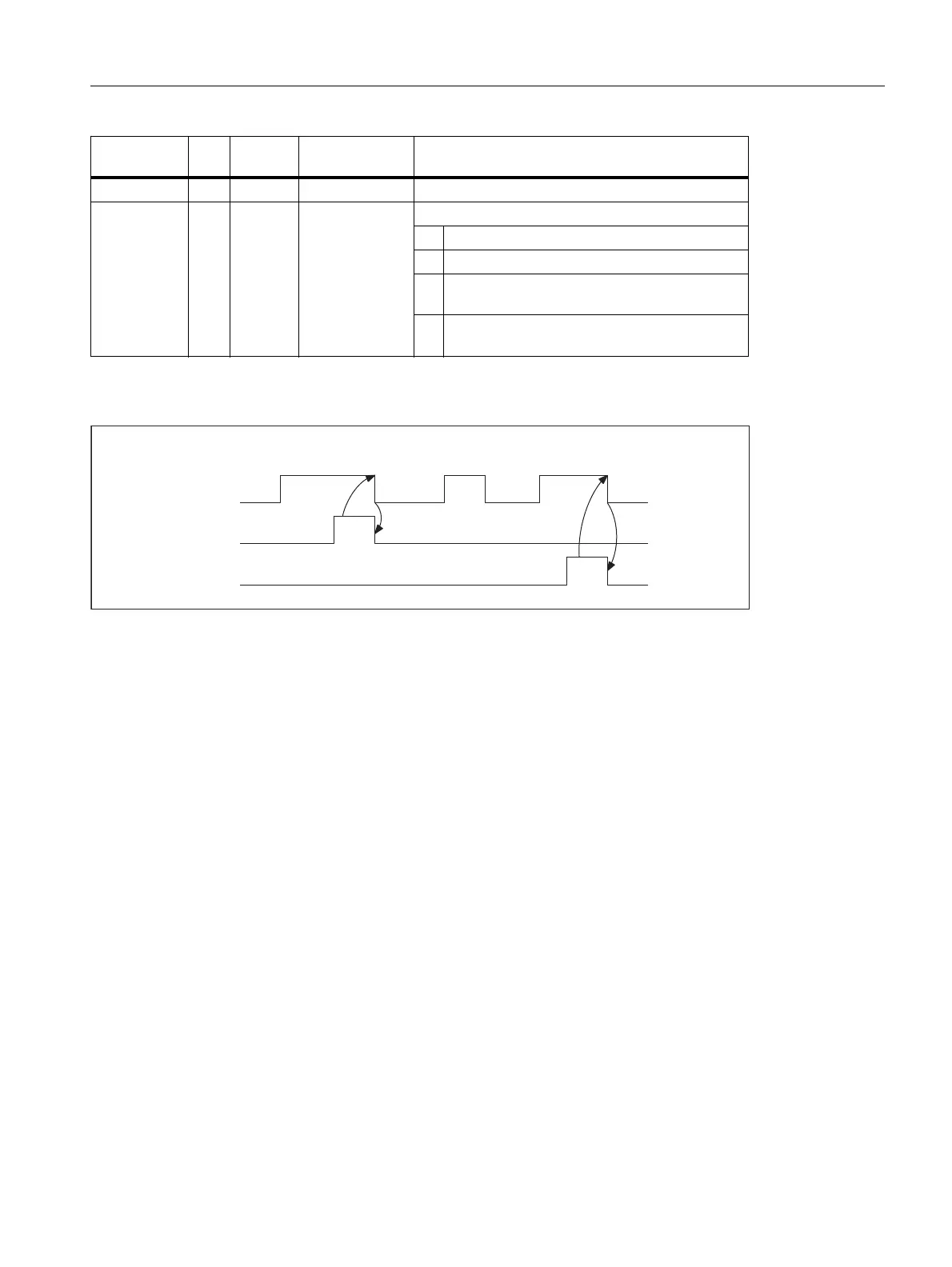

Pulse diagram
Ready A BOOL 1 = Transfer complete
Error A INT 0 ... 3 Error checkback
0 : No error has occurred
1: No revolver present
2: Illegal revolver number in parameter
"ChgdRevNo"
3: Illegal job ("interface active" signal for
selected revolver = "FALSE")
(1) Activation of function by means of a positive edge
(2) Positive acknowledgment: Tool management has been transferred
(3) Reset function activation after receipt of acknowledgment
(4) Signal change using FC
(5) This signal chart is not permissible. The job must generally be terminated since the new tool
positions must be conveyed to the tool management in the NCK.
(6) Negative acknowledgment: Error has occurred, error code in the output parameter Error
