Siemens SINUMERIK 828D Function Manual

K2: Axis Types, Coordinate Systems, Frames
10.4 Coordinate systems
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
715
10.4.4 Additive offsets
Zero offsets external
The "zero offset external" is an axial offset. Unlike with frames, no components for rotation, scaling and mirroring
are possible.

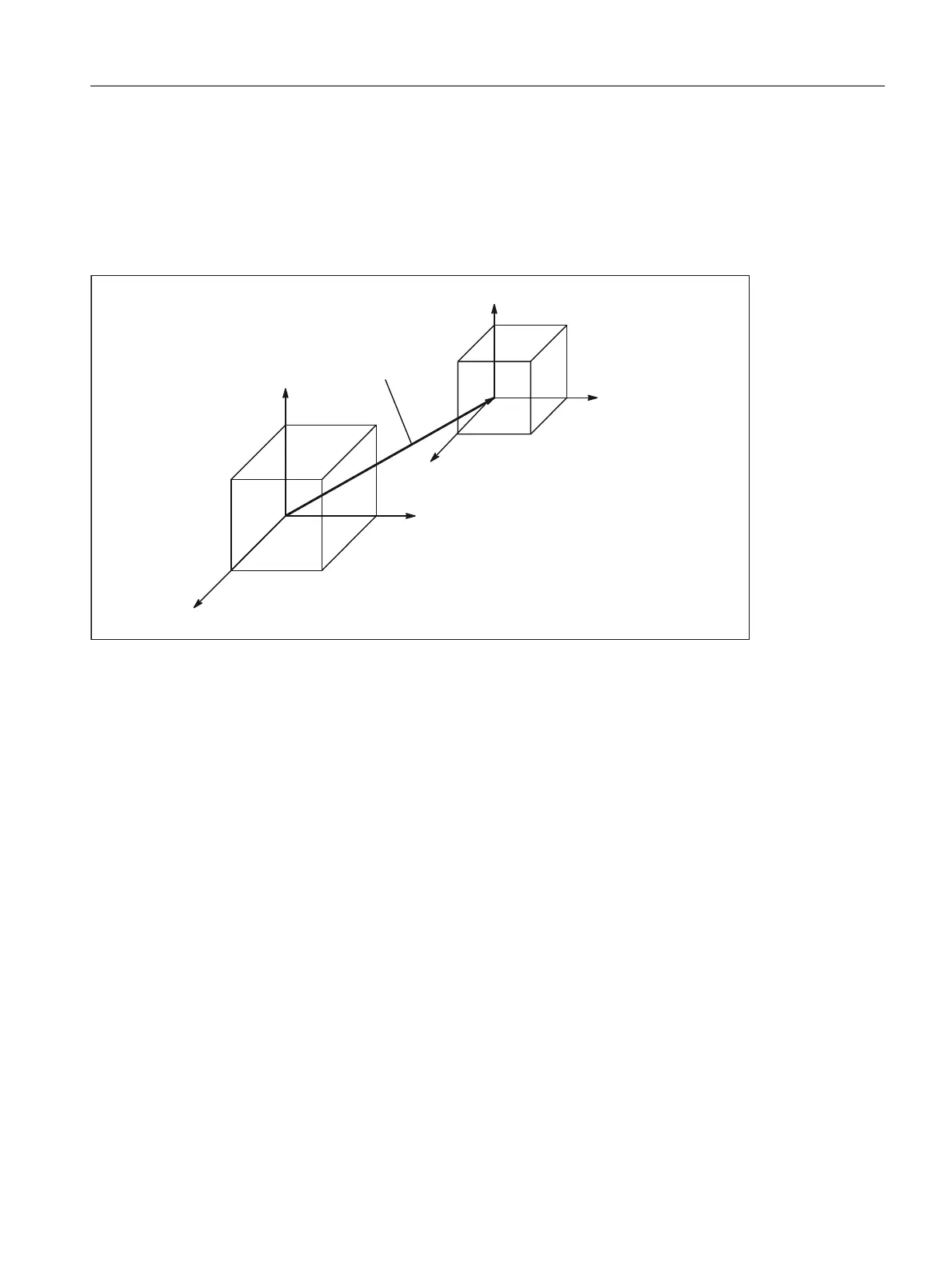

Figure 10-16 Zero offset external between BCS and BZS
Setting the offset values
The offset values are set:
•PLC
By describing system variables
• Via the operator panel
From menu "Current zero offsets"
• NC Program
By assigning to system variable $AA_ETRANS[axis]
Activation of the offset values
The 0/1 edge of the following PLC signal activates the previously defined offset values:
DB31, ... DBX3.0 (accept external zero offset)
The 0/1 edge change is only evaluated in Automatic operating mode.
;
=
<
;
<
=
%DVLFFRRUGLQDWHV\VWHP%&6
%DVLF]HURV\VWHP%=6
([WHUQDO
]HURRIIVHW

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
