Siemens SINUMERIK 828D Function Manual

K2: Axis Types, Coordinate Systems, Frames
10.4 Coordinate systems
Basic Functions
718 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
10.4.5 Basic zero system (BZS)
Basic zero system (BZS)
The basic zero system (BZS) is the basic coordinate system with a basic offset.

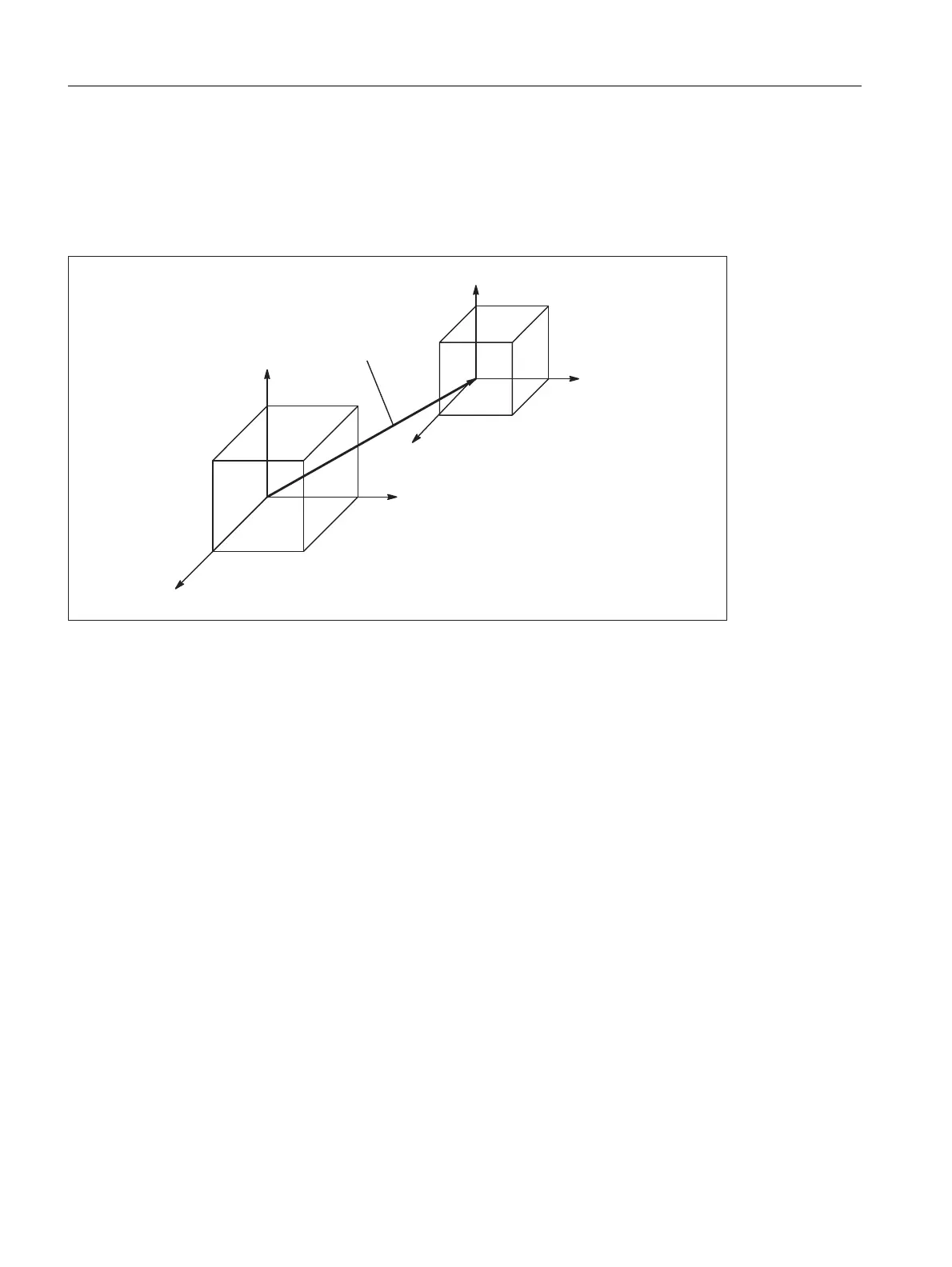

Figure 10-17 Basic offset between BCS and BZS
;
=
<
;
<
=
%DVLFFRRUGLQDWHV\VWHP%&6
%DVLF]HURV\VWHP%=6
%DVLFRIIVHW

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
